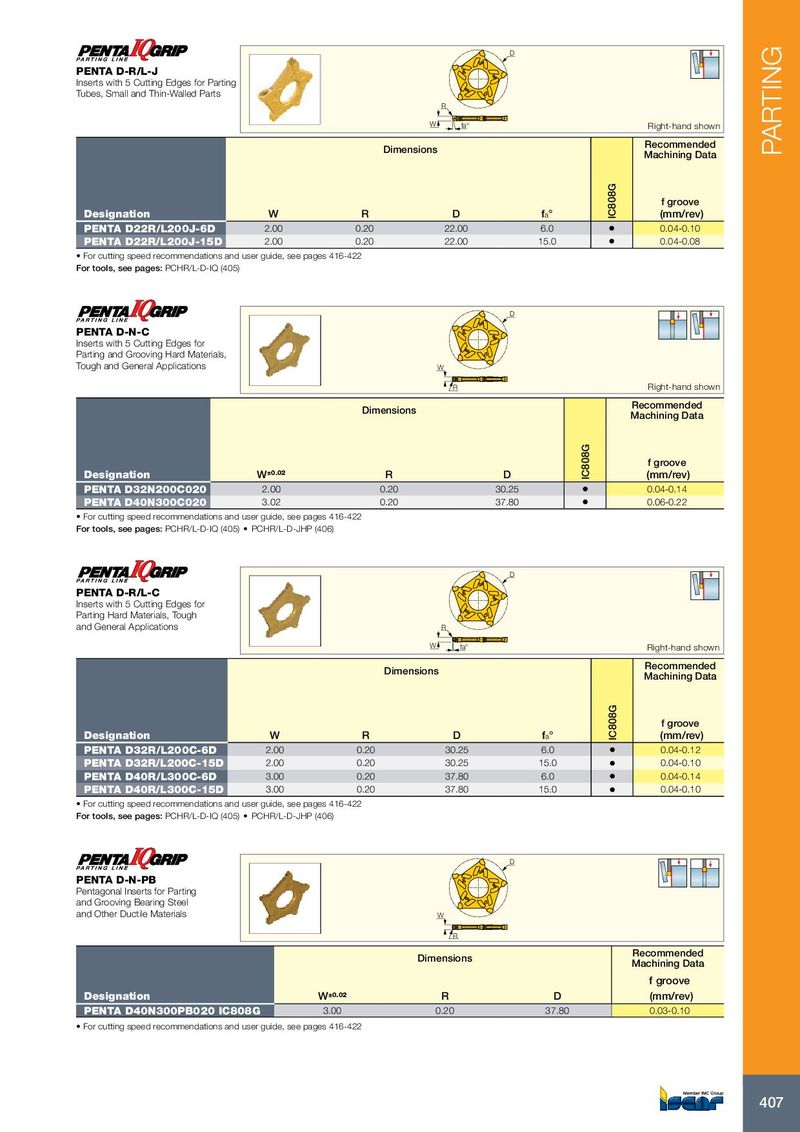

D PENTA D-R/L-J Inserts with 5 Cutting Edges for Parting Tubes, Small and Thin-Walled Parts R W fa° Right-hand shown Recommended Dimensions Machining Data PARTING f groove Designation W R D f a ° IC808G (mm/rev) PENTA D22R/L200J-6D 2.00 0.20 22.00 6.0 • 0.04-0.10 PENTA D22R/L200J-15D 2.00 0.20 22.00 15.0 • 0.04-0.08 • For cutting speed recommendations and user guide, see pages 416-422 For tools, see pages: PCHR/L-D-IQ (405) D PENTA D-N-C Inserts with 5 Cutting Edges for Parting and Grooving Hard Materials, Tough and General Applications W R Right-hand shown Recommended Dimensions Machining Data f groove Designation W ±0.02 R D IC808G (mm/rev) PENTA D32N200C020 2.00 0.20 30.25 • 0.04-0.14 PENTA D40N300C020 3.02 0.20 37.80 • 0.06-0.22 • For cutting speed recommendations and user guide, see pages 416-422 For tools, see pages: PCHR/L-D-IQ (405) • PCHR/L-D-JHP (406) D PENTA D-R/L-C Inserts with 5 Cutting Edges for Parting Hard Materials, Tough and General Applications R W fa° Right-hand shown Recommended Dimensions Machining Data f groove Designation W R D f a ° IC808G (mm/rev) PENTA D32R/L200C-6D 2.00 0.20 30.25 6.0 • 0.04-0.12 PENTA D32R/L200C-15D 2.00 0.20 30.25 15.0 • 0.04-0.10 PENTA D40R/L300C-6D 3.00 0.20 37.80 6.0 • 0.04-0.14 PENTA D40R/L300C-15D 3.00 0.20 37.80 15.0 • 0.04-0.10 • For cutting speed recommendations and user guide, see pages 416-422 For tools, see pages: PCHR/L-D-IQ (405) • PCHR/L-D-JHP (406) D PENTA D-N-PB Pentagonal Inserts for Parting and Grooving Bearing Steel and Other Ductile Materials W R Recommended Dimensions Machining Data f groove Designation W ±0.02 R D (mm/rev) PENTA D40N300PB020 IC808G 3.00 0.20 37.80 0.03-0.10 • For cutting speed recommendations and user guide, see pages 416-422 407
