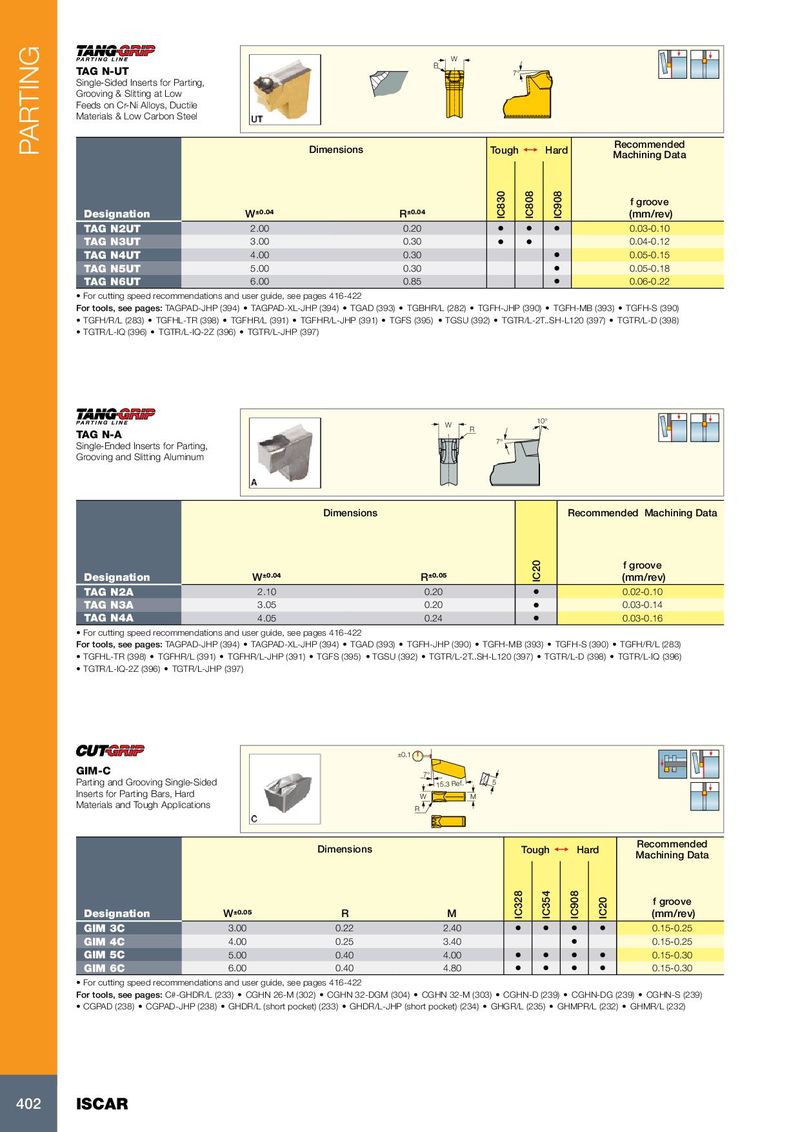

W R TAG N-UT 7° Single-Sided Inserts for Parting, Grooving & Slitting at Low Feeds on Cr-Ni Alloys, Ductile Materials & Low Carbon Steel Recommended PARTING Dimensions Tough 1  Hard Machining Data f groove Designation W ±0.04 R ±0.04 IC830 IC808 IC908 (mm/rev) TAG N2UT 2.00 0.20 • • • 0.03-0.10 TAG N3UT 3.00 0.30 • • 0.04-0.12 TAG N4UT 4.00 0.30 • 0.05-0.15 TAG N5UT 5.00 0.30 • 0.05-0.18 TAG N6UT 6.00 0.85 • 0.06-0.22 • For cutting speed recommendations and user guide, see pages 416-422 For tools, see pages: TAGPAD-JHP (394) • TAGPAD-XL-JHP (394) • TGAD (393) • TGBHR/L (282) • TGFH-JHP (390) • TGFH-MB (393) • TGFH-S (390) • TGFH/R/L (283) • TGFHL-TR (398) • TGFHR/L (391) • TGFHR/L-JHP (391) • TGFS (395) • TGSU (392) • TGTR/L-2T..SH-L120 (397) • TGTR/L-D (398) • TGTR/L-IQ (396) • TGTR/L-IQ-2Z (396) • TGTR/L-JHP (397) W 10° R TAG N-A 7° Single-Ended Inserts for Parting, Grooving and Slitting Aluminum Dimensions Recommended Machining Data f groove Designation W ±0.04 R ±0.05 IC20 (mm/rev) TAG N2A 2.10 0.20 • 0.02-0.10 TAG N3A 3.05 0.20 • 0.03-0.14 TAG N4A 4.05 0.24 • 0.03-0.16 • For cutting speed recommendations and user guide, see pages 416-422 For tools, see pages: TAGPAD-JHP (394) • TAGPAD-XL-JHP (394) • TGAD (393) • TGFH-JHP (390) • TGFH-MB (393) • TGFH-S (390) • TGFH/R/L (283) • TGFHL-TR (398) • TGFHR/L (391) • TGFHR/L-JHP (391) • TGFS (395) • TGSU (392) • TGTR/L-2T..SH-L120 (397) • TGTR/L-D (398) • TGTR/L-IQ (396) • TGTR/L-IQ-2Z (396) • TGTR/L-JHP (397) ±0.1 GIM-C 7° Parting and Grooving Single-Sided 15.3 Ref. 5 Inserts for Parting Bars, Hard W M Materials and Tough Applications R Recommended Dimensions Tough 1  Hard Machining Data f groove Designation W ±0.05 R M IC328 IC354 IC908 IC20 (mm/rev) GIM 3C 3.00 0.22 2.40 • • • • 0.15-0.25 GIM 4C 4.00 0.25 3.40 • 0.15-0.25 GIM 5C 5.00 0.40 4.00 • • • • 0.15-0.30 GIM 6C 6.00 0.40 4.80 • • • • 0.15-0.30 • For cutting speed recommendations and user guide, see pages 416-422 For tools, see pages: C#-GHDR/L (233) • CGHN 26-M (302) • CGHN 32-DGM (304) • CGHN 32-M (303) • CGHN-D (239) • CGHN-DG (239) • CGHN-S (239) • CGPAD (238) • CGPAD-JHP (238) • GHDR/L (short pocket) (233) • GHDR/L-JHP (short pocket) (234) • GHGR/L (235) • GHMPR/L (232) • GHMR/L (232) 402 ISCAR
