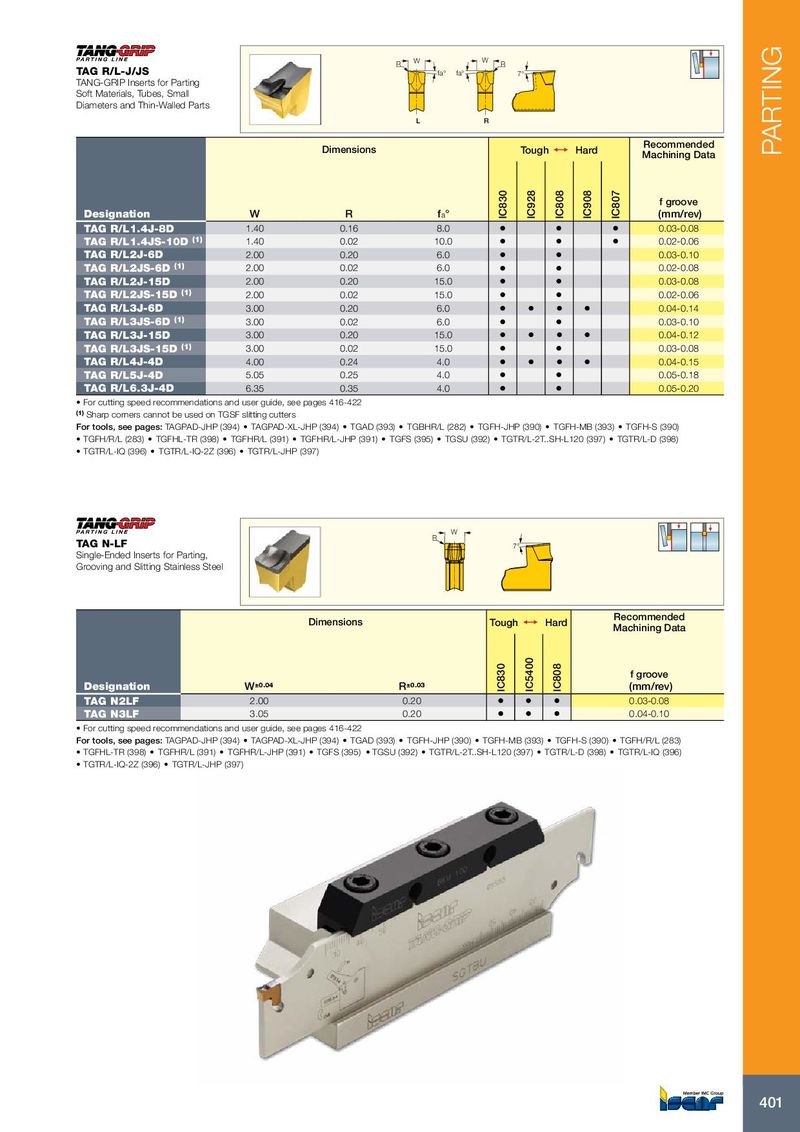

R W W R TAG R/L-J/JS fa° fa° 7° TANG-GRIP Inserts for Parting Soft Materials, Tubes, Small Diameters and Thin-Walled Parts L R Recommended Dimensions Tough 1  Hard Machining Data PARTING f groove Designation W R f a ° IC830 IC928 IC808 IC908 IC807 (mm/rev) TAG R/L1.4J-8D 1.40 0.16 8.0 • • • 0.03-0.08 TAG R/L1.4JS-10D (1) 1.40 0.02 10.0 • • • 0.02-0.06 TAG R/L2J-6D 2.00 0.20 6.0 • • 0.03-0.10 TAG R/L2JS-6D (1) 2.00 0.02 6.0 • • 0.02-0.08 TAG R/L2J-15D 2.00 0.20 15.0 • • 0.03-0.08 TAG R/L2JS-15D (1) 2.00 0.02 15.0 • • 0.02-0.06 TAG R/L3J-6D 3.00 0.20 6.0 • • • • 0.04-0.14 TAG R/L3JS-6D (1) 3.00 0.02 6.0 • • 0.03-0.10 TAG R/L3J-15D 3.00 0.20 15.0 • • • • 0.04-0.12 TAG R/L3JS-15D (1) 3.00 0.02 15.0 • • 0.03-0.08 TAG R/L4J-4D 4.00 0.24 4.0 • • • • 0.04-0.15 TAG R/L5J-4D 5.05 0.25 4.0 • • 0.05-0.18 TAG R/L6.3J-4D 6.35 0.35 4.0 • • 0.05-0.20 • For cutting speed recommendations and user guide, see pages 416-422 (1) Sharp corners cannot be used on TGSF slitting cutters For tools, see pages: TAGPAD-JHP (394) • TAGPAD-XL-JHP (394) • TGAD (393) • TGBHR/L (282) • TGFH-JHP (390) • TGFH-MB (393) • TGFH-S (390) • TGFH/R/L (283) • TGFHL-TR (398) • TGFHR/L (391) • TGFHR/L-JHP (391) • TGFS (395) • TGSU (392) • TGTR/L-2T..SH-L120 (397) • TGTR/L-D (398) • TGTR/L-IQ (396) • TGTR/L-IQ-2Z (396) • TGTR/L-JHP (397) W R TAG N-LF 7° Single-Ended Inserts for Parting, Grooving and Slitting Stainless Steel Recommended Dimensions Tough 1  Hard Machining Data f groove Designation W ±0.04 R ±0.03 IC830 IC5400 IC808 (mm/rev) TAG N2LF 2.00 0.20 • • • 0.03-0.08 TAG N3LF 3.05 0.20 • • • 0.04-0.10 • For cutting speed recommendations and user guide, see pages 416-422 For tools, see pages: TAGPAD-JHP (394) • TAGPAD-XL-JHP (394) • TGAD (393) • TGFH-JHP (390) • TGFH-MB (393) • TGFH-S (390) • TGFH/R/L (283) • TGFHL-TR (398) • TGFHR/L (391) • TGFHR/L-JHP (391) • TGFS (395) • TGSU (392) • TGTR/L-2T..SH-L120 (397) • TGTR/L-D (398) • TGTR/L-IQ (396) • TGTR/L-IQ-2Z (396) • TGTR/L-JHP (397) 401
