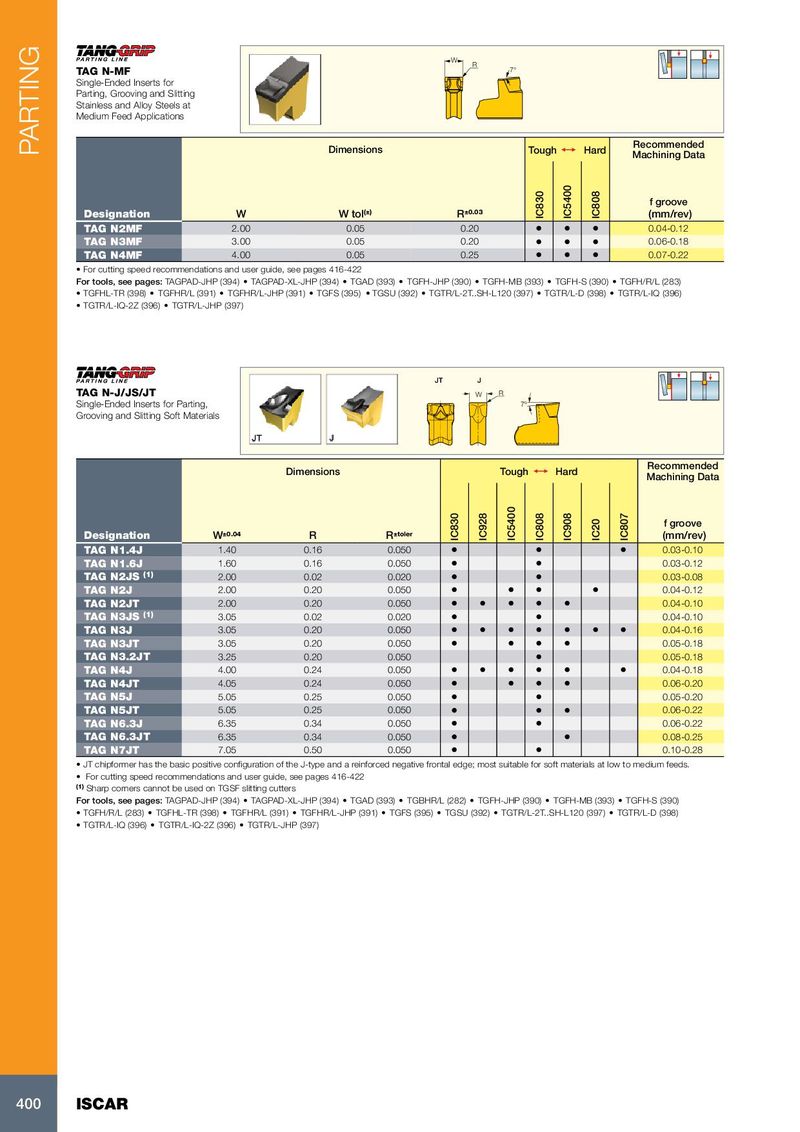

W R TAG N-MF 7° Single-Ended Inserts for Parting, Grooving and Slitting Stainless and Alloy Steels at Medium Feed Applications Recommended PARTING Dimensions Tough 1  Hard Machining Data f groove Designation W W tol (±) R ±0.03 IC830 IC5400 IC808 (mm/rev) TAG N2MF 2.00 0.05 0.20 • • • 0.04-0.12 TAG N3MF 3.00 0.05 0.20 • • • 0.06-0.18 TAG N4MF 4.00 0.05 0.25 • • • 0.07-0.22 • For cutting speed recommendations and user guide, see pages 416-422 For tools, see pages: TAGPAD-JHP (394) • TAGPAD-XL-JHP (394) • TGAD (393) • TGFH-JHP (390) • TGFH-MB (393) • TGFH-S (390) • TGFH/R/L (283) • TGFHL-TR (398) • TGFHR/L (391) • TGFHR/L-JHP (391) • TGFS (395) • TGSU (392) • TGTR/L-2T..SH-L120 (397) • TGTR/L-D (398) • TGTR/L-IQ (396) • TGTR/L-IQ-2Z (396) • TGTR/L-JHP (397) JT J TAG N-J/JS/JT W R Single-Ended Inserts for Parting, 7º Grooving and Slitting Soft Materials Recommended Dimensions Tough 1  Hard Machining Data f groove Designation W ±0.04 R R ±toler IC830 IC928 IC5400 IC808 IC908 IC20 IC807 (mm/rev) TAG N1.4J 1.40 0.16 0.050 • • • 0.03-0.10 TAG N1.6J 1.60 0.16 0.050 • • 0.03-0.12 TAG N2JS (1) 2.00 0.02 0.020 • • 0.03-0.08 TAG N2J 2.00 0.20 0.050 • • • • 0.04-0.12 TAG N2JT 2.00 0.20 0.050 • • • • • 0.04-0.10 TAG N3JS (1) 3.05 0.02 0.020 • • 0.04-0.10 TAG N3J 3.05 0.20 0.050 • • • • • • • 0.04-0.16 TAG N3JT 3.05 0.20 0.050 • • • • 0.05-0.18 TAG N3.2JT 3.25 0.20 0.050 • 0.05-0.18 TAG N4J 4.00 0.24 0.050 • • • • • • 0.04-0.18 TAG N4JT 4.05 0.24 0.050 • • • • 0.06-0.20 TAG N5J 5.05 0.25 0.050 • • 0.05-0.20 TAG N5JT 5.05 0.25 0.050 • • • 0.06-0.22 TAG N6.3J 6.35 0.34 0.050 • • 0.06-0.22 TAG N6.3JT 6.35 0.34 0.050 • • 0.08-0.25 TAG N7JT 7.05 0.50 0.050 • • 0.10-0.28 • JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low to medium feeds. • For cutting speed recommendations and user guide, see pages 416-422 (1) Sharp corners cannot be used on TGSF slitting cutters For tools, see pages: TAGPAD-JHP (394) • TAGPAD-XL-JHP (394) • TGAD (393) • TGBHR/L (282) • TGFH-JHP (390) • TGFH-MB (393) • TGFH-S (390) • TGFH/R/L (283) • TGFHL-TR (398) • TGFHR/L (391) • TGFHR/L-JHP (391) • TGFS (395) • TGSU (392) • TGTR/L-2T..SH-L120 (397) • TGTR/L-D (398) • TGTR/L-IQ (396) • TGTR/L-IQ-2Z (396) • TGTR/L-JHP (397) 400 ISCAR
