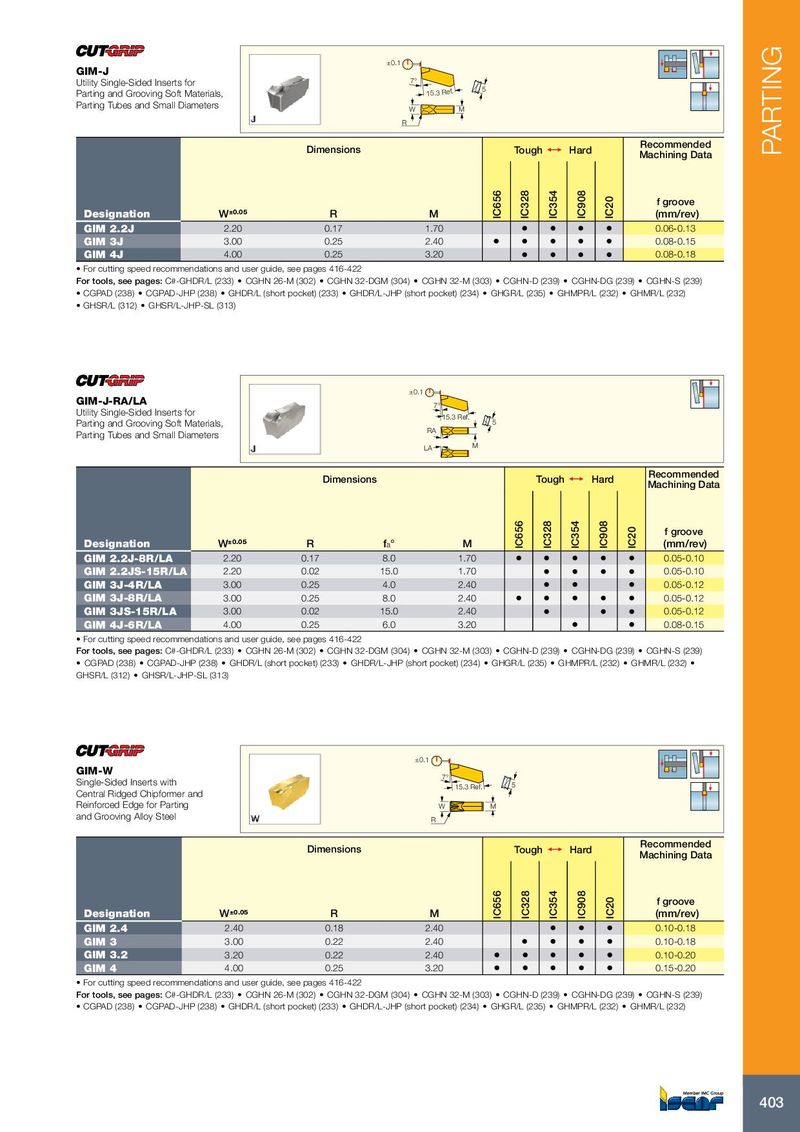

Каталог Iscar токарный инструмент 2017 - страница 407

±0.1 GIM-J Utility Single-Sided Inserts for 7° 5 Parting and Grooving Soft Materials, 15.3 Ref. Parting Tubes and Small Diameters W M R Recommended Dimensions Tough 1  Hard Machining Data PARTING f groove Designation W ±0.05 R M IC656 IC328 IC354 IC908 IC20 (mm/rev) GIM 2.2J 2.20 0.17 1.70 • • • • 0.06-0.13 GIM 3J 3.00 0.25 2.40 • • • • • 0.08-0.15 GIM 4J 4.00 0.25 3.20 • • • • 0.08-0.18 • For cutting speed recommendations and user guide, see pages 416-422 For tools, see pages: C#-GHDR/L (233) • CGHN 26-M (302) • CGHN 32-DGM (304) • CGHN 32-M (303) • CGHN-D (239) • CGHN-DG (239) • CGHN-S (239) • CGPAD (238) • CGPAD-JHP (238) • GHDR/L (short pocket) (233) • GHDR/L-JHP (short pocket) (234) • GHGR/L (235) • GHMPR/L (232) • GHMR/L (232) • GHSR/L (312) • GHSR/L-JHP-SL (313) ±0.1 GIM-J-RA/LA 7° Utility Single-Sided Inserts for 15.3 Ref. Parting and Grooving Soft Materials, 5 RA Parting Tubes and Small Diameters LA M Recommended Dimensions Tough 1  Hard Machining Data f groove Designation W ±0.05 R f a ° M IC656 IC328 IC354 IC908 IC20 (mm/rev) GIM 2.2J-8R/LA 2.20 0.17 8.0 1.70 • • • • • 0.05-0.10 GIM 2.2JS-15R/LA 2.20 0.02 15.0 1.70 • • • • 0.05-0.10 GIM 3J-4R/LA 3.00 0.25 4.0 2.40 • • • 0.05-0.12 GIM 3J-8R/LA 3.00 0.25 8.0 2.40 • • • • • 0.05-0.12 GIM 3JS-15R/LA 3.00 0.02 15.0 2.40 • • • 0.05-0.12 GIM 4J-6R/LA 4.00 0.25 6.0 3.20 • • 0.08-0.15 • For cutting speed recommendations and user guide, see pages 416-422 For tools, see pages: C#-GHDR/L (233) • CGHN 26-M (302) • CGHN 32-DGM (304) • CGHN 32-M (303) • CGHN-D (239) • CGHN-DG (239) • CGHN-S (239) • CGPAD (238) • CGPAD-JHP (238) • GHDR/L (short pocket) (233) • GHDR/L-JHP (short pocket) (234) • GHGR/L (235) • GHMPR/L (232) • GHMR/L (232) • GHSR/L (312) • GHSR/L-JHP-SL (313) ±0.1 GIM-W 7° Single-Sided Inserts with 15.3 Ref. 5 Central Ridged Chipformer and Reinforced Edge for Parting W M and Grooving Alloy Steel R Recommended Dimensions Tough 1  Hard Machining Data f groove Designation W ±0.05 R M IC656 IC328 IC354 IC908 IC20 (mm/rev) GIM 2.4 2.40 0.18 2.40 • • • 0.10-0.18 GIM 3 3.00 0.22 2.40 • • • • 0.10-0.18 GIM 3.2 3.20 0.22 2.40 • • • • • 0.10-0.20 GIM 4 4.00 0.25 3.20 • • • • • 0.15-0.20 • For cutting speed recommendations and user guide, see pages 416-422 For tools, see pages: C#-GHDR/L (233) • CGHN 26-M (302) • CGHN 32-DGM (304) • CGHN 32-M (303) • CGHN-D (239) • CGHN-DG (239) • CGHN-S (239) • CGPAD (238) • CGPAD-JHP (238) • GHDR/L (short pocket) (233) • GHDR/L-JHP (short pocket) (234) • GHGR/L (235) • GHMPR/L (232) • GHMR/L (232) 403
