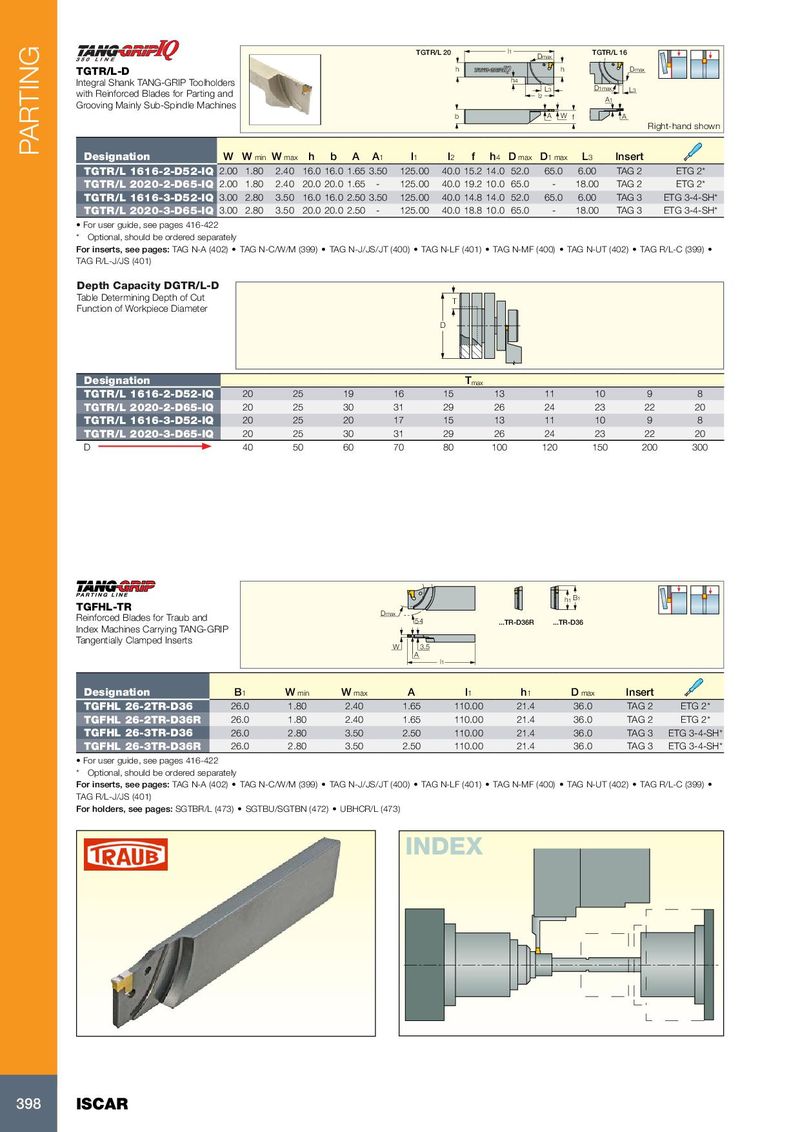

| TGTR/L-D Integral Shank TANG-GRIP Toolholders with Reinforced Blades for Parting and | TGTR/ | h L 20 | h4 l1 | h l2 L3 Dmax | TG D1 | TR/L 16 Dmax max A1 L3 | ||||
| Grooving Mainly Sub-Spindle Machines | b | W A | f | A | Right-hand shown | |||||
| Designation W | Wmin Wmax | h | b A A1 | l1 | l2 | f h4 Dmax | D1 max | L3 | Insert | |
| TGTR/L 1616-2-D52-IQ 2.00 | 1.80 2.40 | 16.0 | 16.0 1.65 3.50 | 125.00 | 40.0 | 15.2 14.0 52.0 | 65.0 | 6.00 | TAG 2 | ETG 2 |
| TGTR/L 2020-2-D65-IQ 2.00 | 1.80 2.40 | 20.0 | 20.0 1.65 - | 125.00 | 40.0 | 19.2 10.0 65.0 | - | 18.00 | TAG 2 | ETG 2 |
| TGTR/L 1616-3-D52-IQ 3.00 | 2.80 3.50 | 16.0 | 16.0 2.50 3.50 | 125.00 | 40.0 | 14.8 14.0 52.0 | 65.0 | 6.00 | TAG 3 | ETG 3-4-SH |
| TGTR/L 2020-3-D65-IQ 3.00 | 2.80 3.50 | 20.0 | 20.0 2.50 - | 125.00 | 40.0 | 18.8 10.0 65.0 | - | 18.00 | TAG 3 | ETG 3-4-SH |
- For user guide, see pages 416-422
- Optional, should be ordered separately
For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401)
| Depth Capacity DGTR/L-D Table Determining Depth of Cut Function of Workpiece Diameter | D T | |||||||||
| Designation | Tm | ax | ||||||||
| TGTR/L 1616-2-D52-IQ | 20 | 25 | 19 | 16 | 15 | 13 | 11 | 10 | 9 | 8 |
| TGTR/L 2020-2-D65-IQ | 20 | 25 | 30 | 31 | 29 | 26 | 24 | 23 | 22 | 20 |
| TGTR/L 1616-3-D52-IQ | 20 | 25 | 20 | 17 | 15 | 13 | 11 | 10 | 9 | 8 |
| TGTR/L 2020-3-D65-IQ | 20 | 25 | 30 | 31 | 29 | 26 | 24 | 23 | 22 | 20 |
| D | 40 | 50 | 60 | 70 | 80 | 100 | 120 | 150 | 200 | 300 |
| TGFHL-TR | Dmax | h1 B1 | |||||||
| Reinforced Blades for Traub and Index Machines Carrying TANG-GR Tangentially Clamped Inserts | IP | 54 W A 3.5 l1 | ...TR-D36R | ...TR-D36 | |||||
| Designation | B1 | Wmin | Wmax | A | l1 | h1 | Dmax | Insert | |
| TGFHL 26-2TR-D36 | 26.0 | 1.80 | 2.40 | 1.65 | 110.00 | 21.4 | 36.0 | TAG 2 | ETG 2 |
| TGFHL 26-2TR-D36R | 26.0 | 1.80 | 2.40 | 1.65 | 110.00 | 21.4 | 36.0 | TAG 2 | ETG 2 |
| TGFHL 26-3TR-D36 | 26.0 | 2.80 | 3.50 | 2.50 | 110.00 | 21.4 | 36.0 | TAG 3 | ETG 3-4-SH |
| TGFHL 26-3TR-D36R | 26.0 | 2.80 | 3.50 | 2.50 | 110.00 | 21.4 | 36.0 | TAG 3 | ETG 3-4-SH |
- For user guide, see pages 416-422
- Optional, should be ordered separately
For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401) For holders, see pages: SGTBR/L (473) SGTBU/SGTBN (472) UBHCR/L (473)
