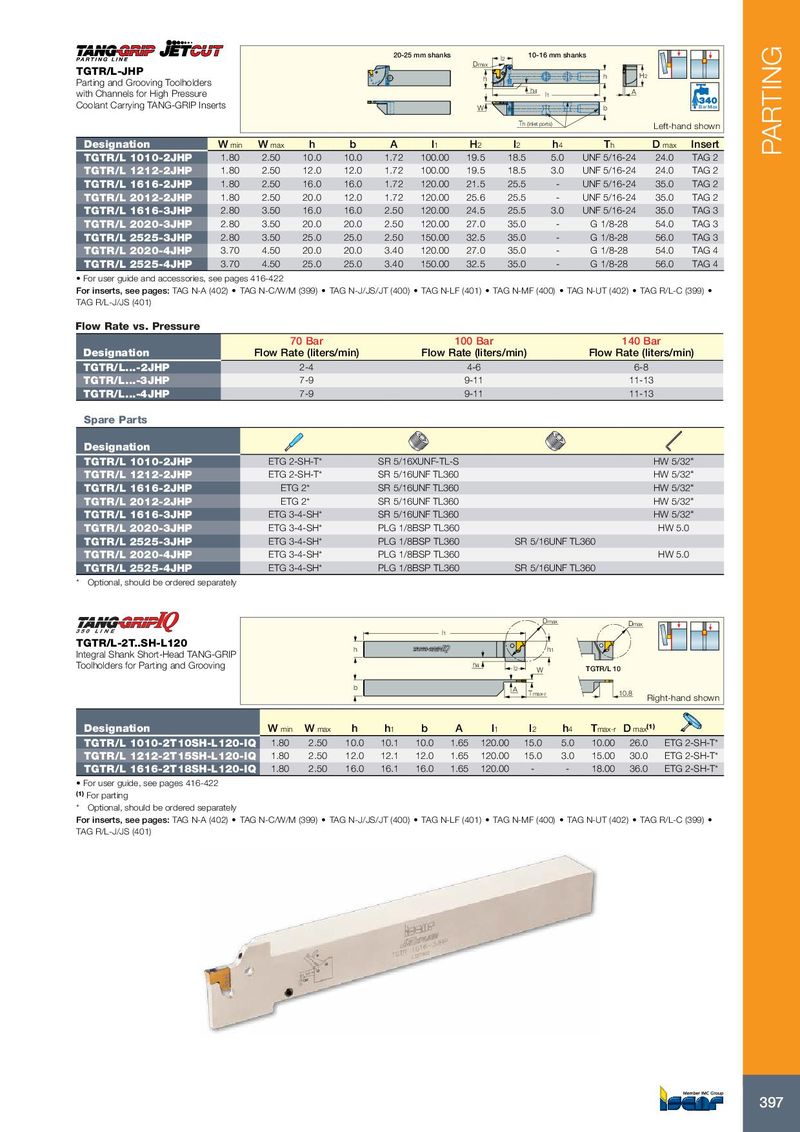

| TGTR/L-JHP Parting and Grooving Toolholder with Channels for High Pressure | s | 20-25 | mm shanks | h Dmax | h4 l2 10- | l1 16 mm sha | h nks | H2 A | |||||
| Coolant Carrying TANG-GRIP In | serts | W | b | Bar Max | |||||||||
| Th (Inlet | ports) | Left-ha | nd shown | ||||||||||
| Designation | Wmin | Wmax | h | b | A | l1 | H2 | l2 | h4 | T | h | Dmax | Insert |
| TGTR/L 1010-2JHP | 1.80 | 2.50 | 10.0 | 10.0 | 1.72 | 100.00 | 19.5 | 18.5 | 5.0 | UNF 5 | /16-24 | 24.0 | TAG 2 |
| TGTR/L 1212-2JHP | 1.80 | 2.50 | 12.0 | 12.0 | 1.72 | 100.00 | 19.5 | 18.5 | 3.0 | UNF 5 | /16-24 | 24.0 | TAG 2 |
| TGTR/L 1616-2JHP | 1.80 | 2.50 | 16.0 | 16.0 | 1.72 | 120.00 | 21.5 | 25.5 | - | UNF 5 | /16-24 | 35.0 | TAG 2 |
| TGTR/L 2012-2JHP | 1.80 | 2.50 | 20.0 | 12.0 | 1.72 | 120.00 | 25.6 | 25.5 | - | UNF 5 | /16-24 | 35.0 | TAG 2 |
| TGTR/L 1616-3JHP | 2.80 | 3.50 | 16.0 | 16.0 | 2.50 | 120.00 | 24.5 | 25.5 | 3.0 | UNF 5 | /16-24 | 35.0 | TAG 3 |
| TGTR/L 2020-3JHP | 2.80 | 3.50 | 20.0 | 20.0 | 2.50 | 120.00 | 27.0 | 35.0 | - | G 1/ | 8-28 | 54.0 | TAG 3 |
| TGTR/L 2525-3JHP | 2.80 | 3.50 | 25.0 | 25.0 | 2.50 | 150.00 | 32.5 | 35.0 | - | G 1/ | 8-28 | 56.0 | TAG 3 |
| TGTR/L 2020-4JHP | 3.70 | 4.50 | 20.0 | 20.0 | 3.40 | 120.00 | 27.0 | 35.0 | - | G 1/ | 8-28 | 54.0 | TAG 4 |
| TGTR/L 2525-4JHP | 3.70 | 4.50 | 25.0 | 25.0 | 3.40 | 150.00 | 32.5 | 35.0 | - | G 1/ | 8-28 | 56.0 | TAG 4 |
- For user guide and accessories, see pages 416-422
For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401)
Flow Rate vs. Pressure
| Designation | 70 Bar Flow Rate(liters/min) | 100 Bar Flow Rate(liters/min) | 140 Bar Flow Rate(liters/min) |
| TGTR/L...-2JHP | 2-4 | 4-6 | 6-8 |
| TGTR/L...-3JHP | 7-9 | 9-11 | 11-13 |
| TGTR/L...-4JHP | 7-9 | 9-11 | 11-13 |
Spare Parts
| Designation | ||||
| TGTR/L 1010-2JHP | ETG 2-SH-T | SR 5/16XUNF-TL-S | HW 5/32" | |
| TGTR/L 1212-2JHP | ETG 2-SH-T | SR 5/16UNF TL360 | HW 5/32" | |
| TGTR/L 1616-2JHP | ETG 2 | SR 5/16UNF TL360 | HW 5/32" | |
| TGTR/L 2012-2JHP | ETG 2 | SR 5/16UNF TL360 | HW 5/32" | |
| TGTR/L 1616-3JHP | ETG 3-4-SH | SR 5/16UNF TL360 | HW 5/32" | |
| TGTR/L 2020-3JHP | ETG 3-4-SH | PLG 1/8BSP TL360 | HW 5.0 | |
| TGTR/L 2525-3JHP | ETG 3-4-SH | PLG 1/8BSP TL360 | SR 5/16UNF TL360 | |
| TGTR/L 2020-4JHP | ETG 3-4-SH | PLG 1/8BSP TL360 | HW 5.0 | |
| TGTR/L 2525-4JHP | ETG 3-4-SH | PLG 1/8BSP TL360 | SR 5/16UNF TL360 |
- Optional, should be ordered separately
| TGTR/L-2T..SH-L120 Integral Shank Short-Head TANG-GRIP | h | l | 1 | h1 Dmax | Dmax | ||||||
| Toolholders for Parting and Grooving | b | l2 A h4 | W Tmax-r | 1 TGTR/L 10 | 0.8 Ri | ght-hand shown | |||||
| Designation | Wmin | Wmax | h | h1 | b | A | l1 | l2 h4 | Tmax-r | Dmax(1) | |
| TGTR/L 1010-2T10SH-L120-IQ | 1.80 | 2.50 | 10.0 | 10.1 | 10.0 | 1.65 | 120.00 | 15.0 5.0 | 10.00 | 26.0 | ETG 2-SH-T |
| TGTR/L 1212-2T15SH-L120-IQ | 1.80 | 2.50 | 12.0 | 12.1 | 12.0 | 1.65 | 120.00 | 15.0 3.0 | 15.00 | 30.0 | ETG 2-SH-T |
| TGTR/L 1616-2T18SH-L120-IQ | 1.80 | 2.50 | 16.0 | 16.1 | 16.0 | 1.65 | 120.00 | - - | 18.00 | 36.0 | ETG 2-SH-T |
- For user guide, see pages 416-422
(1) For parting
- Optional, should be ordered separately
For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401)
