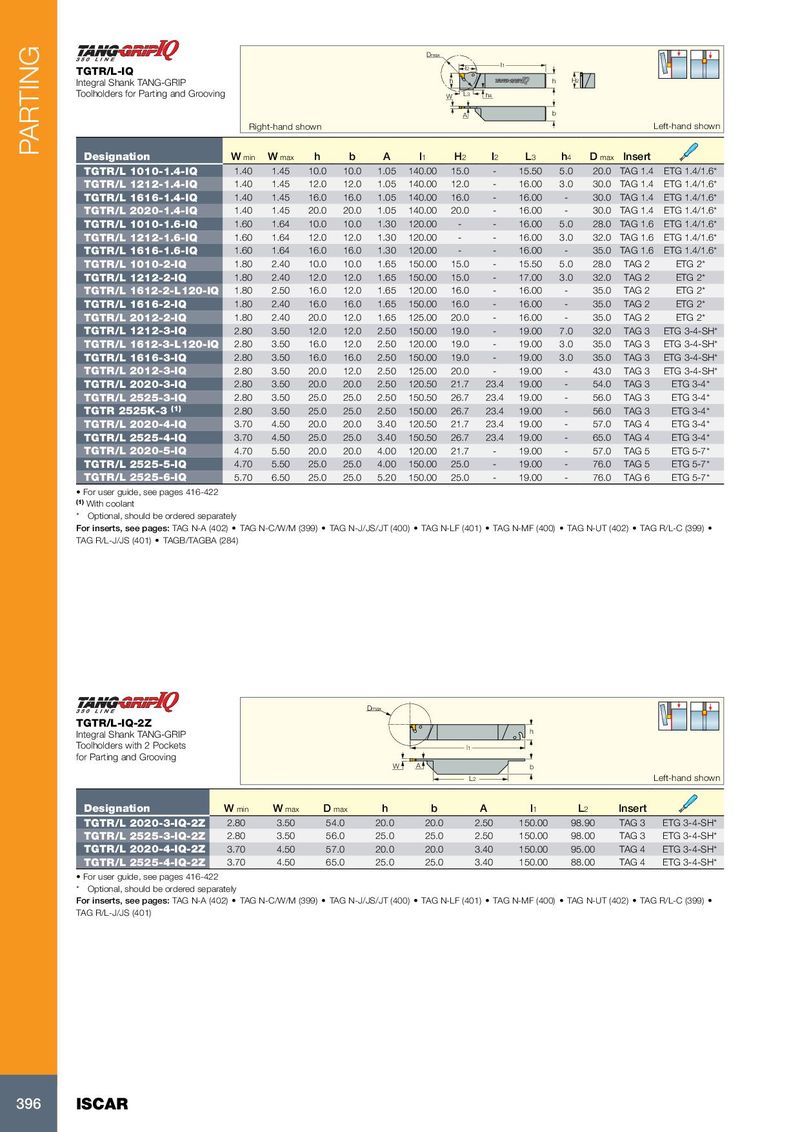

Каталог Iscar токарный инструмент 2017 - страница 400
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
| Dmax | |||||||||||||
| GTR/L-IQ | l2 | l1 | |||||||||||
| tegral Shank TANG-GRIP | h | H2 h | |||||||||||
| olholders for Parting and Grooving | W L3 | h4 | |||||||||||
| A | b | ||||||||||||
| Rig | ht-hand s | hown | L | eft-hand shown | |||||||||
| Designation | Wmin | Wmax | h | b | A | l1 | H2 | l2 | L3 | h4 | Dmax | Insert | |
| TGTR/L 1010-1.4-IQ | 1.40 | 1.45 | 10.0 | 10.0 | 1.05 | 140.00 | 15.0 | - | 15.50 | 5.0 | 20.0 | TAG 1.4 | ETG 1.4/1.6 |
| TGTR/L 1212-1.4-IQ | 1.40 | 1.45 | 12.0 | 12.0 | 1.05 | 140.00 | 12.0 | - | 16.00 | 3.0 | 30.0 | TAG 1.4 | ETG 1.4/1.6 |
| TGTR/L 1616-1.4-IQ | 1.40 | 1.45 | 16.0 | 16.0 | 1.05 | 140.00 | 16.0 | - | 16.00 | - | 30.0 | TAG 1.4 | ETG 1.4/1.6 |
| TGTR/L 2020-1.4-IQ | 1.40 | 1.45 | 20.0 | 20.0 | 1.05 | 140.00 | 20.0 | - | 16.00 | - | 30.0 | TAG 1.4 | ETG 1.4/1.6 |
| TGTR/L 1010-1.6-IQ | 1.60 | 1.64 | 10.0 | 10.0 | 1.30 | 120.00 | - | - | 16.00 | 5.0 | 28.0 | TAG 1.6 | ETG 1.4/1.6 |
| TGTR/L 1212-1.6-IQ | 1.60 | 1.64 | 12.0 | 12.0 | 1.30 | 120.00 | - | - | 16.00 | 3.0 | 32.0 | TAG 1.6 | ETG 1.4/1.6 |
| TGTR/L 1616-1.6-IQ | 1.60 | 1.64 | 16.0 | 16.0 | 1.30 | 120.00 | - | - | 16.00 | - | 35.0 | TAG 1.6 | ETG 1.4/1.6 |
| TGTR/L 1010-2-IQ | 1.80 | 2.40 | 10.0 | 10.0 | 1.65 | 150.00 | 15.0 | - | 15.50 | 5.0 | 28.0 | TAG 2 | ETG 2 |
| TGTR/L 1212-2-IQ | 1.80 | 2.40 | 12.0 | 12.0 | 1.65 | 150.00 | 15.0 | - | 17.00 | 3.0 | 32.0 | TAG 2 | ETG 2 |
| TGTR/L 1612-2-L120-IQ | 1.80 | 2.50 | 16.0 | 12.0 | 1.65 | 120.00 | 16.0 | - | 16.00 | - | 35.0 | TAG 2 | ETG 2 |
| TGTR/L 1616-2-IQ | 1.80 | 2.40 | 16.0 | 16.0 | 1.65 | 150.00 | 16.0 | - | 16.00 | - | 35.0 | TAG 2 | ETG 2 |
| TGTR/L 2012-2-IQ | 1.80 | 2.40 | 20.0 | 12.0 | 1.65 | 125.00 | 20.0 | - | 16.00 | - | 35.0 | TAG 2 | ETG 2 |
| TGTR/L 1212-3-IQ | 2.80 | 3.50 | 12.0 | 12.0 | 2.50 | 150.00 | 19.0 | - | 19.00 | 7.0 | 32.0 | TAG 3 | ETG 3-4-SH |
| TGTR/L 1612-3-L120-IQ | 2.80 | 3.50 | 16.0 | 12.0 | 2.50 | 120.00 | 19.0 | - | 19.00 | 3.0 | 35.0 | TAG 3 | ETG 3-4-SH |
| TGTR/L 1616-3-IQ | 2.80 | 3.50 | 16.0 | 16.0 | 2.50 | 150.00 | 19.0 | - | 19.00 | 3.0 | 35.0 | TAG 3 | ETG 3-4-SH |
| TGTR/L 2012-3-IQ | 2.80 | 3.50 | 20.0 | 12.0 | 2.50 | 125.00 | 20.0 | - | 19.00 | - | 43.0 | TAG 3 | ETG 3-4-SH |
| TGTR/L 2020-3-IQ | 2.80 | 3.50 | 20.0 | 20.0 | 2.50 | 120.50 | 21.7 | 23.4 | 19.00 | - | 54.0 | TAG 3 | ETG 3-4 |
| TGTR/L 2525-3-IQ | 2.80 | 3.50 | 25.0 | 25.0 | 2.50 | 150.50 | 26.7 | 23.4 | 19.00 | - | 56.0 | TAG 3 | ETG 3-4 |
| TGTR 2525K-3(1) | 2.80 | 3.50 | 25.0 | 25.0 | 2.50 | 150.00 | 26.7 | 23.4 | 19.00 | - | 56.0 | TAG 3 | ETG 3-4 |
| TGTR/L 2020-4-IQ | 3.70 | 4.50 | 20.0 | 20.0 | 3.40 | 120.50 | 21.7 | 23.4 | 19.00 | - | 57.0 | TAG 4 | ETG 3-4 |
| TGTR/L 2525-4-IQ | 3.70 | 4.50 | 25.0 | 25.0 | 3.40 | 150.50 | 26.7 | 23.4 | 19.00 | - | 65.0 | TAG 4 | ETG 3-4 |
| TGTR/L 2020-5-IQ | 4.70 | 5.50 | 20.0 | 20.0 | 4.00 | 120.00 | 21.7 | - | 19.00 | - | 57.0 | TAG 5 | ETG 5-7 |
| TGTR/L 2525-5-IQ | 4.70 | 5.50 | 25.0 | 25.0 | 4.00 | 150.00 | 25.0 | - | 19.00 | - | 76.0 | TAG 5 | ETG 5-7 |
| TGTR/L 2525-6-IQ | 5.70 | 6.50 | 25.0 | 25.0 | 5.20 | 150.00 | 25.0 | - | 19.00 | - | 76.0 | TAG 6 | ETG 5-7 |
- For user guide, see pages 416-422
(1) With coolant
- Optional, should be ordered separately
For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401) TAGB/TAGBA (284)
| Dmax | ||||||||||
| TGTR/L-IQ-2Z | ||||||||||
| Integral Shank TANG-GRIP | h | |||||||||
| Toolholders with 2 Pockets | l1 | |||||||||
| for Parting and Grooving | W | A | b | |||||||
| L2 | Left-hand shown | |||||||||
| Designation | Wmin | Wmax | Dmax | h | b | A | l1 | L2 | Insert | |
| TGTR/L 2020-3-IQ-2Z | 2.80 | 3.50 | 54.0 | 20.0 | 20.0 | 2.50 | 150.00 | 98.90 | TAG 3 | ETG 3-4-SH |
| TGTR/L 2525-3-IQ-2Z | 2.80 | 3.50 | 56.0 | 25.0 | 25.0 | 2.50 | 150.00 | 98.00 | TAG 3 | ETG 3-4-SH |
| TGTR/L 2020-4-IQ-2Z | 3.70 | 4.50 | 57.0 | 20.0 | 20.0 | 3.40 | 150.00 | 95.00 | TAG 4 | ETG 3-4-SH |
| TGTR/L 2525-4-IQ-2Z | 3.70 | 4.50 | 65.0 | 25.0 | 25.0 | 3.40 | 150.00 | 88.00 | TAG 4 | ETG 3-4-SH |
- For user guide, see pages 416-422
- Optional, should be ordered separately
For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401)
