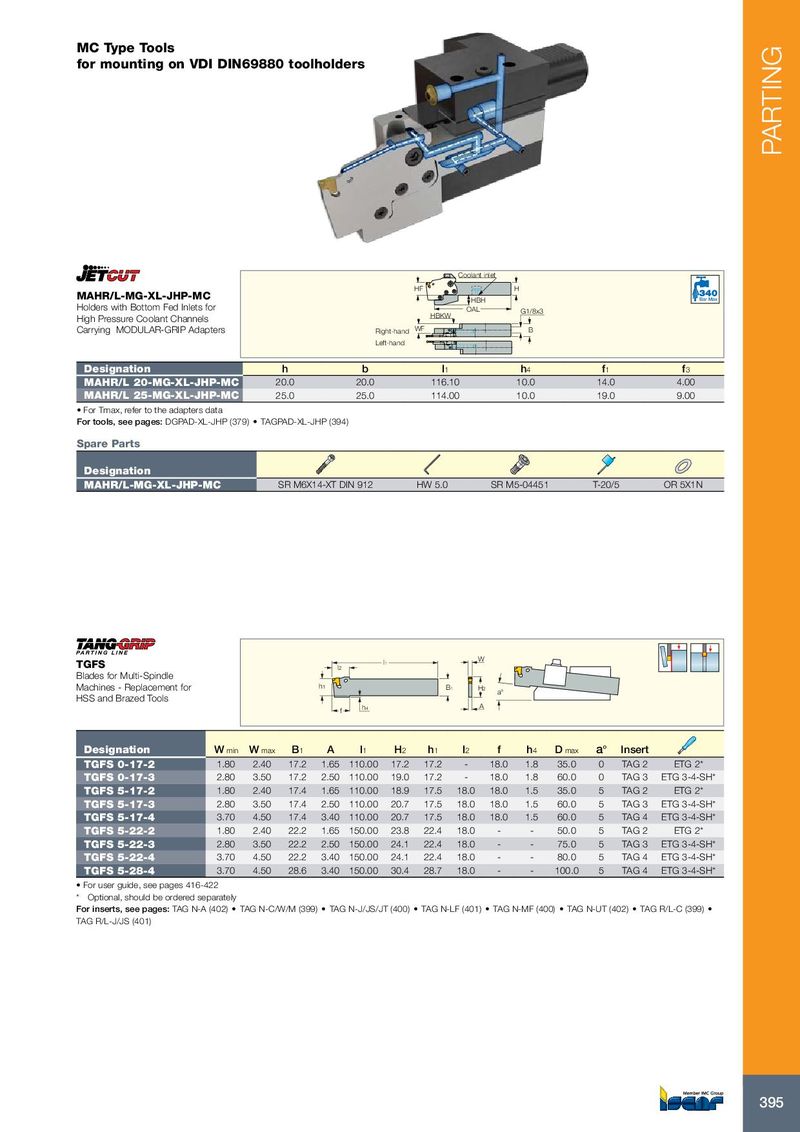

MC Type Tools
for mounting on VDI DIN69880 toolholders
Coolant inlet
| MAHR/L-MG-XL-JHP-MC | HF | H | ||
| HBH | Bar Max | |||
| Holders with Bottom Fed Inlets for | OAL | |||
| G1/8x3 | ||||
| High Pressure Coolant Channels | HBKW | |||
| Carrying MODULAR-GRIP Adapters | Right-hand | WF | B | |
| Left-hand |
| Designation | h | b | l1 | h4 | f1 | f3 |
| MAHR/L 20-MG-XL-JHP-MC | 20.0 | 20.0 | 116.10 | 10.0 | 14.0 | 4.00 |
| MAHR/L 25-MG-XL-JHP-MC | 25.0 | 25.0 | 114.00 | 10.0 | 19.0 | 9.00 |
- For Tmax, refer to the adapters data
For tools, see pages: DGPAD-XL-JHP (379) TAGPAD-XL-JHP (394)
Spare Parts
Designation
MAHR/L-MG-XL-JHP-MC SR M6X14-XT DIN 912 HW 5.0 SR M5-04451 T-20/5 OR 5X1N
| TGFS Blades for Multi-Spindle Machines - Replacement for HSS and Brazed Tools | h1 f l2 | h4 l | 1 | B | 1 H2 A W | a° | ||||||||
| Designation | Wmin | Wmax | B1 | A | l1 | H2 | h1 | l2 | f | h4 | Dmax | a° | Insert | |
| TGFS 0-17-2 | 1.80 | 2.40 | 17.2 | 1.65 | 110.00 | 17.2 | 17.2 | - | 18.0 | 1.8 | 35.0 | 0 | TAG 2 | ETG 2 |
| TGFS 0-17-3 | 2.80 | 3.50 | 17.2 | 2.50 | 110.00 | 19.0 | 17.2 | - | 18.0 | 1.8 | 60.0 | 0 | TAG 3 | ETG 3-4-SH |
| TGFS 5-17-2 | 1.80 | 2.40 | 17.4 | 1.65 | 110.00 | 18.9 | 17.5 | 18.0 | 18.0 | 1.5 | 35.0 | 5 | TAG 2 | ETG 2 |
| TGFS 5-17-3 | 2.80 | 3.50 | 17.4 | 2.50 | 110.00 | 20.7 | 17.5 | 18.0 | 18.0 | 1.5 | 60.0 | 5 | TAG 3 | ETG 3-4-SH |
| TGFS 5-17-4 | 3.70 | 4.50 | 17.4 | 3.40 | 110.00 | 20.7 | 17.5 | 18.0 | 18.0 | 1.5 | 60.0 | 5 | TAG 4 | ETG 3-4-SH |
| TGFS 5-22-2 | 1.80 | 2.40 | 22.2 | 1.65 | 150.00 | 23.8 | 22.4 | 18.0 | - | - | 50.0 | 5 | TAG 2 | ETG 2 |
| TGFS 5-22-3 | 2.80 | 3.50 | 22.2 | 2.50 | 150.00 | 24.1 | 22.4 | 18.0 | - | - | 75.0 | 5 | TAG 3 | ETG 3-4-SH |
| TGFS 5-22-4 | 3.70 | 4.50 | 22.2 | 3.40 | 150.00 | 24.1 | 22.4 | 18.0 | - | - | 80.0 | 5 | TAG 4 | ETG 3-4-SH |
| TGFS 5-28-4 | 3.70 | 4.50 | 28.6 | 3.40 | 150.00 | 30.4 | 28.7 | 18.0 | - | - | 100.0 | 5 | TAG 4 | ETG 3-4-SH |
- For user guide, see pages 416-422
* Optional, should be ordered separately For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401)
