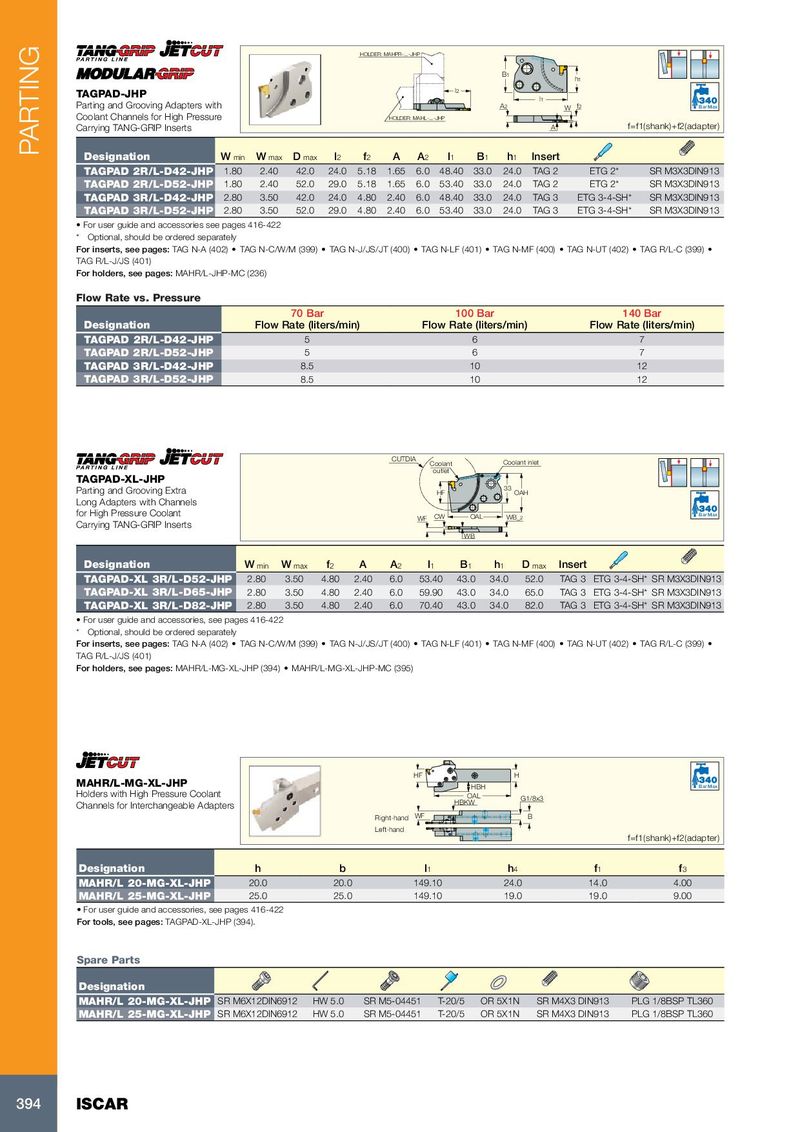

| TAGPAD-JHP Parting and Grooving Adapters wit | h | | | | HOLDER: | MAHPR-...-J | HP | l2 | | A2 B1 | l1 W | h1 f2 | Bar Max |
| Coolant Channels for High Pressur Carrying TANG-GRIP Inserts | e | | | | | HOLDER: | MAHL-... | -JHP | | | A | f=f | 1(shank)+f2(adapter) |
| Designation | Wmin | Wmax | Dmax | l2 | f2 | A | A2 | l1 | B1 | h1 | Insert | | |
| TAGPAD 2R/L-D42-JHP | 1.80 | 2.40 | 42.0 | 24.0 | 5.18 | 1.65 | 6.0 | 48.40 | 33.0 | 24.0 | TAG 2 | ETG 2 | SR M3X3DIN913 |
| TAGPAD 2R/L-D52-JHP | 1.80 | 2.40 | 52.0 | 29.0 | 5.18 | 1.65 | 6.0 | 53.40 | 33.0 | 24.0 | TAG 2 | ETG 2 | SR M3X3DIN913 |
| TAGPAD 3R/L-D42-JHP | 2.80 | 3.50 | 42.0 | 24.0 | 4.80 | 2.40 | 6.0 | 48.40 | 33.0 | 24.0 | TAG 3 | ETG 3-4-SH | SR M3X3DIN913 |
| TAGPAD 3R/L-D52-JHP | 2.80 | 3.50 | 52.0 | 29.0 | 4.80 | 2.40 | 6.0 | 53.40 | 33.0 | 24.0 | TAG 3 | ETG 3-4-SH | SR M3X3DIN913 |
- For user guide and accessories see pages 416-422
- Optional, should be ordered separately
For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401) For holders, see pages: MAHR/L-JHP-MC (236)
Flow Rate vs. Pressure
| Designation | 70 Bar Flow Rate(liters/min) | 100 Bar Flow Rate(liters/min) | 140 Bar Flow Rate(liters/min) |
| TAGPAD 2R/L-D42-JHP | 5 | 6 | 7 |
| TAGPAD 2R/L-D52-JHP | 5 | 6 | 7 |
| TAGPAD 3R/L-D42-JHP | 8.5 | 10 | 12 |
| TAGPAD 3R/L-D52-JHP | 8.5 | 10 | 12 |
| | | | | CUTDIA | Coolant outlet | | Coola | nt inlet | | | |
| TAGPAD-XL-JHP Parting and Grooving Extra Long Adapters with Channels for High Pressure Coolant Carrying TANG-GRIP Inserts | | | | | | HF WF CW | OA WB | L O WB 33 | AH 2 | | | Bar Max |
| Designation | Wmin | Wmax | f2 | A | A2 | l1 | B1 | h1 | Dmax | Insert | | |
| TAGPAD-XL 3R/L-D52-JHP | 2.80 | 3.50 | 4.80 | 2.40 | 6.0 | 53.40 | 43.0 | 34.0 | 52.0 | TAG 3 | ETG 3-4-SH | SR M3X3DIN913 |
| TAGPAD-XL 3R/L-D65-JHP | 2.80 | 3.50 | 4.80 | 2.40 | 6.0 | 59.90 | 43.0 | 34.0 | 65.0 | TAG 3 | ETG 3-4-SH | SR M3X3DIN913 |
| TAGPAD-XL 3R/L-D82-JHP | 2.80 | 3.50 | 4.80 | 2.40 | 6.0 | 70.40 | 43.0 | 34.0 | 82.0 | TAG 3 | ETG 3-4-SH | SR M3X3DIN913 |
- For user guide and accessories, see pages 416-422
- Optional, should be ordered separately
For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401) For holders, see pages: MAHR/L-MG-XL-JHP (394) MAHR/L-MG-XL-JHP-MC (395)
| MAHR/L-MG-XL-JHP | HF | | | H | |
| | | HBH | | Bar Max |
| Holders with High Pressure Coolant | | | OAL | | |
| | HBKW | | G1/8x3 | |
| Channels for Interchangeable Adapters | | | | | |
| Right-hand | WF | B | |
| Left-hand | | | |
| | | f=f1(shank)+f2(adapter) |
| Designation | h | b | | l1 | h4 | f1 | f3 |
| MAHR/L 20-MG-XL-JHP | 20.0 | 20.0 | 149.10 | | 24.0 | 14.0 | 4.00 |
| MAHR/L 25-MG-XL-JHP | 25.0 | 25.0 | 149.10 | | 19.0 | 19.0 | 9.00 |
- For user guide and accessories, see pages 416-422
For tools, see pages: TAGPAD-XL-JHP (394).
Spare Parts
| Designation | | | | | | | |
| MAHR/L 20-MG-XL-JHP | SR M6X12DIN6912 | HW 5.0 | SR M5-04451 | T-20/5 | OR 5X1N | SR M4X3 DIN913 | PLG 1/8BSP TL360 |
| MAHR/L 25-MG-XL-JHP | SR M6X12DIN6912 | HW 5.0 | SR M5-04451 | T-20/5 | OR 5X1N | SR M4X3 DIN913 | PLG 1/8BSP TL360 |
