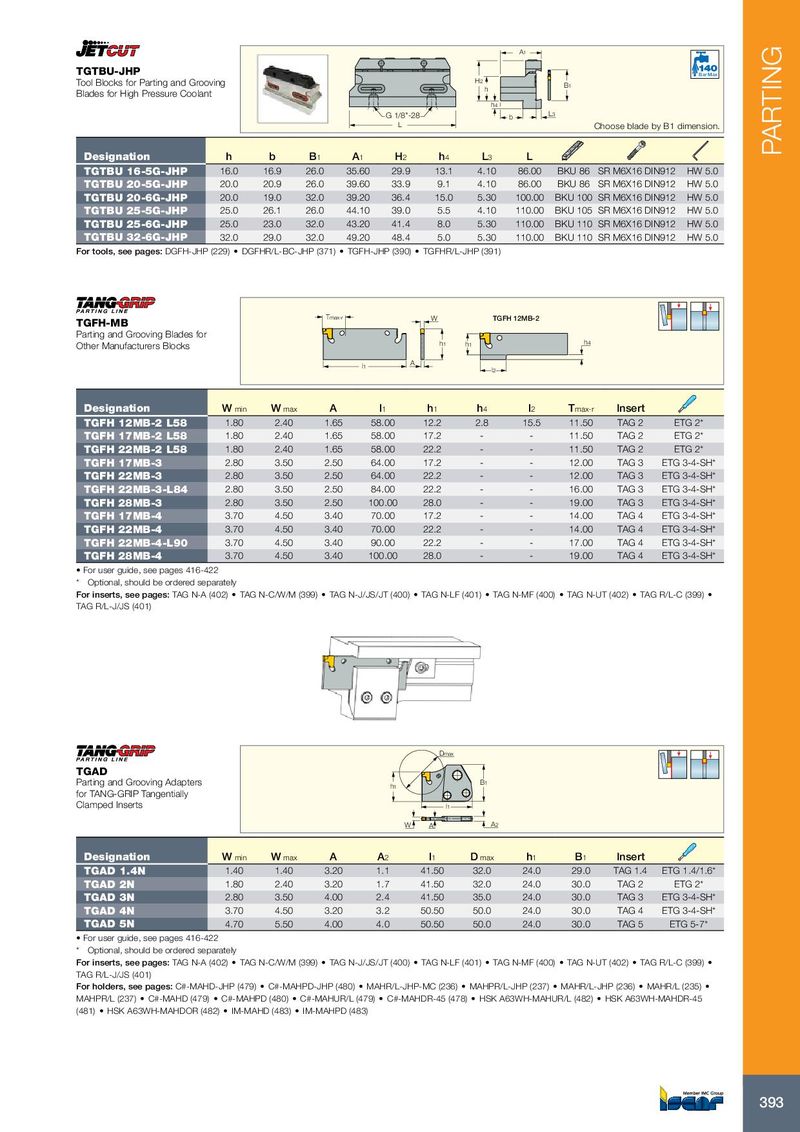

Каталог Iscar токарный инструмент 2017 - страница 397
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
| A1 | |||||||||||
| TGTBU-JHP Tool Blocks for Parting and Gro | oving | H2 | B1 | Bar Max | |||||||
| Blades for High Pressure Coolan | t | h h4 | |||||||||
| L G 1/8"-28 | b | L3 | Choose blade by B1 d | imension. | |||||||
| Designation | h | b | B1 | A1 | H2 | h4 | L3 | L | |||
| TGTBU 16-5G-JHP | 16.0 | 16.9 | 26.0 | 35.60 | 29.9 | 13.1 | 4.10 | 86.00 | BKU 86 | SR M6X16 DIN912 | HW 5.0 |
| TGTBU 20-5G-JHP | 20.0 | 20.9 | 26.0 | 39.60 | 33.9 | 9.1 | 4.10 | 86.00 | BKU 86 | SR M6X16 DIN912 | HW 5.0 |
| TGTBU 20-6G-JHP | 20.0 | 19.0 | 32.0 | 39.20 | 36.4 | 15.0 | 5.30 | 100.00 | BKU 100 | SR M6X16 DIN912 | HW 5.0 |
| TGTBU 25-5G-JHP | 25.0 | 26.1 | 26.0 | 44.10 | 39.0 | 5.5 | 4.10 | 110.00 | BKU 105 | SR M6X16 DIN912 | HW 5.0 |
| TGTBU 25-6G-JHP | 25.0 | 23.0 | 32.0 | 43.20 | 41.4 | 8.0 | 5.30 | 110.00 | BKU 110 | SR M6X16 DIN912 | HW 5.0 |
| TGTBU 32-6G-JHP | 32.0 | 29.0 | 32.0 | 49.20 | 48.4 | 5.0 | 5.30 | 110.00 | BKU 110 | SR M6X16 DIN912 | HW 5.0 |
For tools, see pages: DGFH-JHP (229) DGFHR/L-BC-JHP (371) TGFH-JHP (390) TGFHR/L-JHP (391)
| TGFH-MB | Tmax-r | W | TGFH | 12MB-2 | ||||||
| Parting and Grooving Blades for Other Manufacturers Blocks | h1 | h1 | h4 | |||||||
| l1 | A | l2 | ||||||||
| Designation | Wmin | Wmax | A | l1 | h1 | h4 | l2 | Tmax-r | Insert | |
| TGFH 12MB-2 L58 | 1.80 | 2.40 | 1.65 | 58.00 | 12.2 | 2.8 | 15.5 | 11.50 | TAG 2 | ETG 2 |
| TGFH 17MB-2 L58 | 1.80 | 2.40 | 1.65 | 58.00 | 17.2 | - | - | 11.50 | TAG 2 | ETG 2 |
| TGFH 22MB-2 L58 | 1.80 | 2.40 | 1.65 | 58.00 | 22.2 | - | - | 11.50 | TAG 2 | ETG 2 |
| TGFH 17MB-3 | 2.80 | 3.50 | 2.50 | 64.00 | 17.2 | - | - | 12.00 | TAG 3 | ETG 3-4-SH |
| TGFH 22MB-3 | 2.80 | 3.50 | 2.50 | 64.00 | 22.2 | - | - | 12.00 | TAG 3 | ETG 3-4-SH |
| TGFH 22MB-3-L84 | 2.80 | 3.50 | 2.50 | 84.00 | 22.2 | - | - | 16.00 | TAG 3 | ETG 3-4-SH |
| TGFH 28MB-3 | 2.80 | 3.50 | 2.50 | 100.00 | 28.0 | - | - | 19.00 | TAG 3 | ETG 3-4-SH |
| TGFH 17MB-4 | 3.70 | 4.50 | 3.40 | 70.00 | 17.2 | - | - | 14.00 | TAG 4 | ETG 3-4-SH |
| TGFH 22MB-4 | 3.70 | 4.50 | 3.40 | 70.00 | 22.2 | - | - | 14.00 | TAG 4 | ETG 3-4-SH |
| TGFH 22MB-4-L90 | 3.70 | 4.50 | 3.40 | 90.00 | 22.2 | - | - | 17.00 | TAG 4 | ETG 3-4-SH |
| TGFH 28MB-4 | 3.70 | 4.50 | 3.40 | 100.00 | 28.0 | - | - | 19.00 | TAG 4 | ETG 3-4-SH |
- For user guide, see pages 416-422
- Optional, should be ordered separately
For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401)
| Dma | x | |||||||||
| TGAD Parting and Grooving Adapters for TANG-GRIP Tangentially Clamped Inserts | h1 | l1 A W | B1 A2 | |||||||
| Designation | Wmin | Wmax | A | A2 | l1 | Dmax | h1 | B1 | Insert | |
| TGAD 1.4N | 1.40 | 1.40 | 3.20 | 1.1 | 41.50 | 32.0 | 24.0 | 29.0 | TAG 1.4 | ETG 1.4/1.6 |
| TGAD 2N | 1.80 | 2.40 | 3.20 | 1.7 | 41.50 | 32.0 | 24.0 | 30.0 | TAG 2 | ETG 2 |
| TGAD 3N | 2.80 | 3.50 | 4.00 | 2.4 | 41.50 | 35.0 | 24.0 | 30.0 | TAG 3 | ETG 3-4-SH |
| TGAD 4N | 3.70 | 4.50 | 3.20 | 3.2 | 50.50 | 50.0 | 24.0 | 30.0 | TAG 4 | ETG 3-4-SH |
| TGAD 5N | 4.70 | 5.50 | 4.00 | 4.0 | 50.50 | 50.0 | 24.0 | 30.0 | TAG 5 | ETG 5-7 |
- For user guide, see pages 416-422
- Optional, should be ordered separately
For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401) For holders, see pages: C#-MAHD-JHP (479) C#-MAHPD-JHP (480) MAHR/L-JHP-MC (236) MAHPR/L-JHP (237) MAHR/L-JHP (236) MAHR/L (235) MAHPR/L (237) C#-MAHD (479) C#-MAHPD (480) C#-MAHUR/L (479) C#-MAHDR-45 (478) HSK A63WH-MAHUR/L (482) HSK A63WH-MAHDR-45 (481) HSK A63WH-MAHDOR (482) IM-MAHD (483) IM-MAHPD (483)
