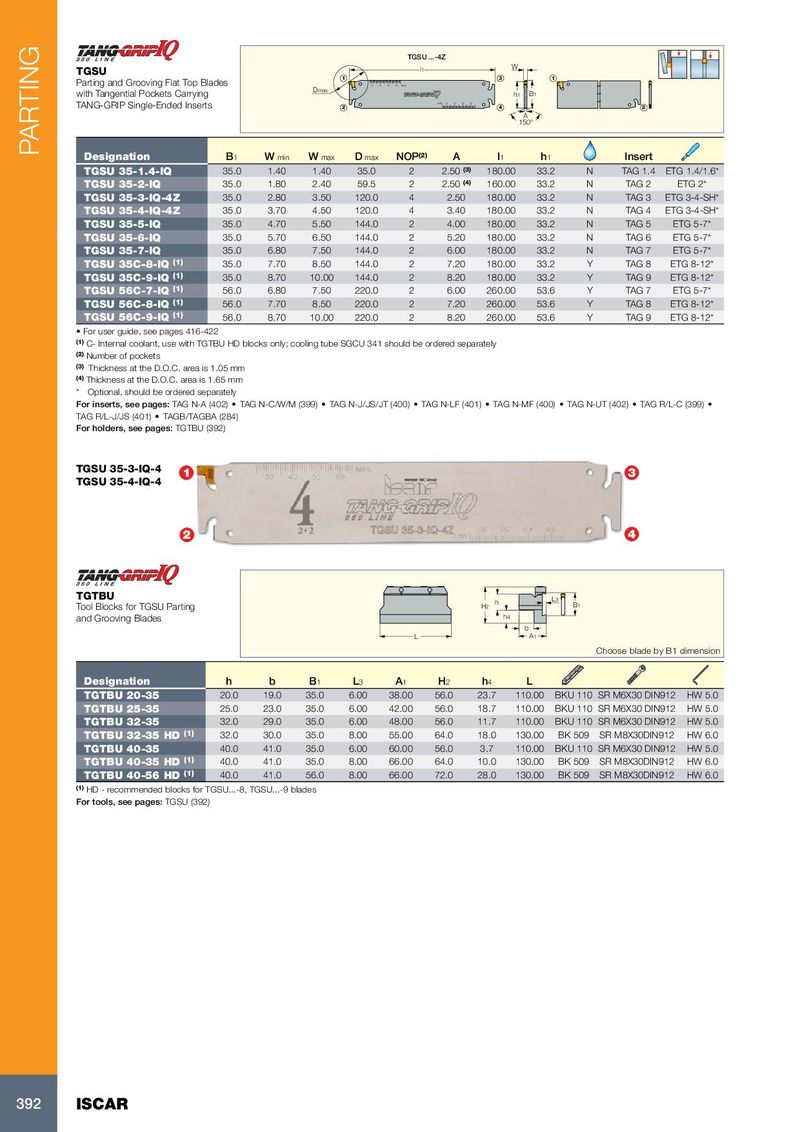

| TGSU Parting and Grooving Flat Top B with Tangential Pockets Carrying TANG-GRIP Single-Ended Insert | lades s | Dmax 1 2 | 30 40 | 50 60 MAX. l1 TGSU | 30 40 50 60 MAX. ...-4Z | W 15 h1 3 4 | A 0° B1 1 | 2 | |||
| Designation | B1 | Wmin | Wmax | Dmax | NOP(2) | A | l1 | h1 | Insert | ||
| TGSU 35-1.4-IQ | 35.0 | 1.40 | 1.40 | 35.0 | 2 | 2.50(3) | 180.00 | 33.2 | N | TAG 1.4 | ETG 1.4/1.6 |
| TGSU 35-2-IQ | 35.0 | 1.80 | 2.40 | 59.5 | 2 | 2.50(4) | 160.00 | 33.2 | N | TAG 2 | ETG 2 |
| TGSU 35-3-IQ-4Z | 35.0 | 2.80 | 3.50 | 120.0 | 4 | 2.50 | 180.00 | 33.2 | N | TAG 3 | ETG 3-4-SH |
| TGSU 35-4-IQ-4Z | 35.0 | 3.70 | 4.50 | 120.0 | 4 | 3.40 | 180.00 | 33.2 | N | TAG 4 | ETG 3-4-SH |
| TGSU 35-5-IQ | 35.0 | 4.70 | 5.50 | 144.0 | 2 | 4.00 | 180.00 | 33.2 | N | TAG 5 | ETG 5-7 |
| TGSU 35-6-IQ | 35.0 | 5.70 | 6.50 | 144.0 | 2 | 5.20 | 180.00 | 33.2 | N | TAG 6 | ETG 5-7 |
| TGSU 35-7-IQ | 35.0 | 6.80 | 7.50 | 144.0 | 2 | 6.00 | 180.00 | 33.2 | N | TAG 7 | ETG 5-7 |
| TGSU 35C-8-IQ(1) | 35.0 | 7.70 | 8.50 | 144.0 | 2 | 7.20 | 180.00 | 33.2 | Y | TAG 8 | ETG 8-12 |
| TGSU 35C-9-IQ(1) | 35.0 | 8.70 | 10.00 | 144.0 | 2 | 8.20 | 180.00 | 33.2 | Y | TAG 9 | ETG 8-12 |
| TGSU 56C-7-IQ(1) | 56.0 | 6.80 | 7.50 | 220.0 | 2 | 6.00 | 260.00 | 53.6 | Y | TAG 7 | ETG 5-7 |
| TGSU 56C-8-IQ(1) | 56.0 | 7.70 | 8.50 | 220.0 | 2 | 7.20 | 260.00 | 53.6 | Y | TAG 8 | ETG 8-12 |
| TGSU 56C-9-IQ (1) | 56.0 | 8.70 | 10.00 | 220.0 | 2 | 8.20 | 260.00 | 53.6 | Y | TAG 9 | ETG 8-12 |
- For user guide, see pages 416-422
(1) C- Internal coolant, use with TGTBU HD blocks only; cooling tube SGCU 341 should be ordered separately (2) Number of pockets (3) Thickness at the D.O.C. area is 1.05 mm (4) Thickness at the D.O.C. area is 1.65 mm * Optional, should be ordered separately For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401) TAGB/TAGBA (284) For holders, see pages: TGTBU (392)
TGSU 35-3-IQ-4 1 3
TGSU 35-4-IQ-4
2 4
TGTBU
h L3
| Tool Blocks for TGSU Parting | H2 | B1 | ||||
| and Grooving Blades | h 4 | |||||
| b | ||||||
| L | A1 | |||||
| Choose blade by B1 dimension |
| Designation | h | b | B1 | L3 | A1 | H2 | h4 | L | ||
| TGTBU 20-35 | 20.0 | 19.0 | 35.0 | 6.00 | 38.00 | 56.0 | 23.7 | 110.00 BKU 110 SR M6X30 DIN912 | HW 5.0 | |
| TGTBU 25-35 | 25.0 | 23.0 | 35.0 | 6.00 | 42.00 | 56.0 | 18.7 | 110.00 BKU 110 SR M6X30 DIN912 | HW 5.0 | |
| TGTBU 32-35 | 32.0 | 29.0 | 35.0 | 6.00 | 48.00 | 56.0 | 11.7 | 110.00 BKU 110 SR M6X30 DIN912 | HW 5.0 | |
| TGTBU 32-35 HD (1) | 32.0 | 30.0 | 35.0 | 8.00 | 55.00 | 64.0 | 18.0 | 130.00 | BK 509 SR M8X30DIN912 | HW 6.0 |
| TGTBU 40-35 | 40.0 | 41.0 | 35.0 | 6.00 | 60.00 | 56.0 | 3.7 | 110.00 BKU 110 SR M6X30 DIN912 | HW 5.0 | |
| TGTBU 40-35 HD (1) | 40.0 | 41.0 | 35.0 | 8.00 | 66.00 | 64.0 | 10.0 | 130.00 | BK 509 SR M8X30DIN912 | HW 6.0 |
| TGTBU 40-56 HD (1) | 40.0 | 41.0 | 56.0 | 8.00 | 66.00 | 72.0 | 28.0 | 130.00 | BK 509 SR M8X30DIN912 | HW 6.0 |
(1) HD - recommended blocks for TGSU...-8, TGSU...-9 blades For tools, see pages: TGSU (392)
