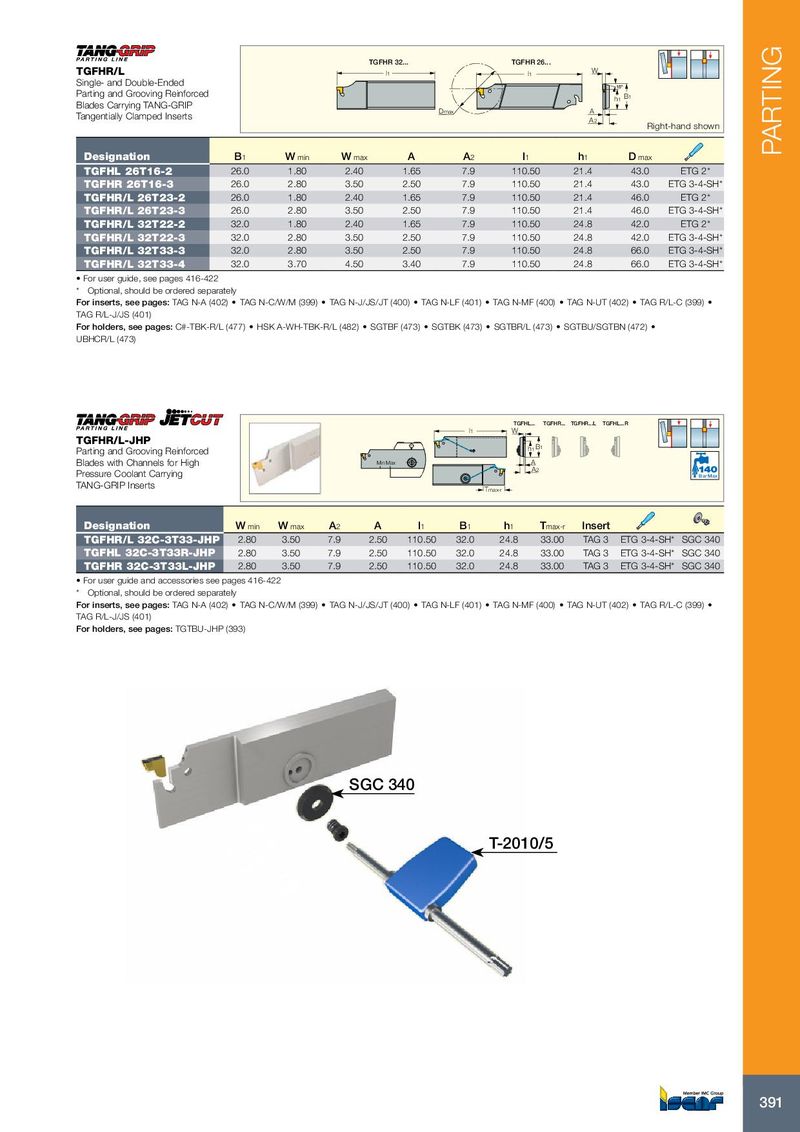

| TGFHR/L | TGF | l1 HR 32... | l1 TGFHR 26... | W | |||||
| Single- and Double-Ended Parting and Grooving Reinforced Blades Carrying TANG-GRIP | D | A | h1 B1 | ||||||
| Tangentially Clamped Inserts | max | A2 | Rig | ht-hand shown | |||||
| Designation | B1 | Wmin | Wmax | A | A2 | l1 | h1 | Dmax | |
| TGFHL 26T16-2 | 26.0 | 1.80 | 2.40 | 1.65 | 7.9 | 110.50 | 21.4 | 43.0 | ETG 2 |
| TGFHR 26T16-3 | 26.0 | 2.80 | 3.50 | 2.50 | 7.9 | 110.50 | 21.4 | 43.0 | ETG 3-4-SH |
| TGFHR/L 26T23-2 | 26.0 | 1.80 | 2.40 | 1.65 | 7.9 | 110.50 | 21.4 | 46.0 | ETG 2 |
| TGFHR/L 26T23-3 | 26.0 | 2.80 | 3.50 | 2.50 | 7.9 | 110.50 | 21.4 | 46.0 | ETG 3-4-SH |
| TGFHR/L 32T22-2 | 32.0 | 1.80 | 2.40 | 1.65 | 7.9 | 110.50 | 24.8 | 42.0 | ETG 2 |
| TGFHR/L 32T22-3 | 32.0 | 2.80 | 3.50 | 2.50 | 7.9 | 110.50 | 24.8 | 42.0 | ETG 3-4-SH |
| TGFHR/L 32T33-3 | 32.0 | 2.80 | 3.50 | 2.50 | 7.9 | 110.50 | 24.8 | 66.0 | ETG 3-4-SH |
| TGFHR/L 32T33-4 | 32.0 | 3.70 | 4.50 | 3.40 | 7.9 | 110.50 | 24.8 | 66.0 | ETG 3-4-SH |
- For user guide, see pages 416-422
- Optional, should be ordered separately
For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401) For holders, see pages: C#-TBK-R/L (477) HSK A-WH-TBK-R/L (482) SGTBF (473) SGTBK (473) SGTBR/L (473) SGTBU/SGTBN (472) UBHCR/L (473)
| TGFHR/L-JHP Parting and Grooving Reinforced Blades with Channels for High Pressure Coolant Carrying TANG-GRIP Inserts | Min Max | l1 T | TGFHL W h max-r | ... A A2 1 B | TGFHR... T 1 | GFHR...L TGF | HL...R | Bar Max | ||||
| Designation | Wmin | Wmax | A2 | A | l1 | B1 | h1 | Tmax-r | Insert | |||
| TGFHR/L 32C-3T33-JHP | 2.80 | 3.50 | 7.9 | 2.50 | 110.50 | 32.0 | 24.8 | 33.00 | TAG 3 | ETG 3-4-SH | SGC 340 | |
| TGFHL 32C-3T33R-JHP | 2.80 | 3.50 | 7.9 | 2.50 | 110.50 | 32.0 | 24.8 | 33.00 | TAG 3 | ETG 3-4-SH | SGC 340 | |
| TGFHR 32C-3T33L-JHP | 2.80 | 3.50 | 7.9 | 2.50 | 110.50 | 32.0 | 24.8 | 33.00 | TAG 3 | ETG 3-4-SH | SGC 340 |
- For user guide and accessories see pages 416-422
- Optional, should be ordered separately
For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401) For holders, see pages: TGTBU-JHP (393)
