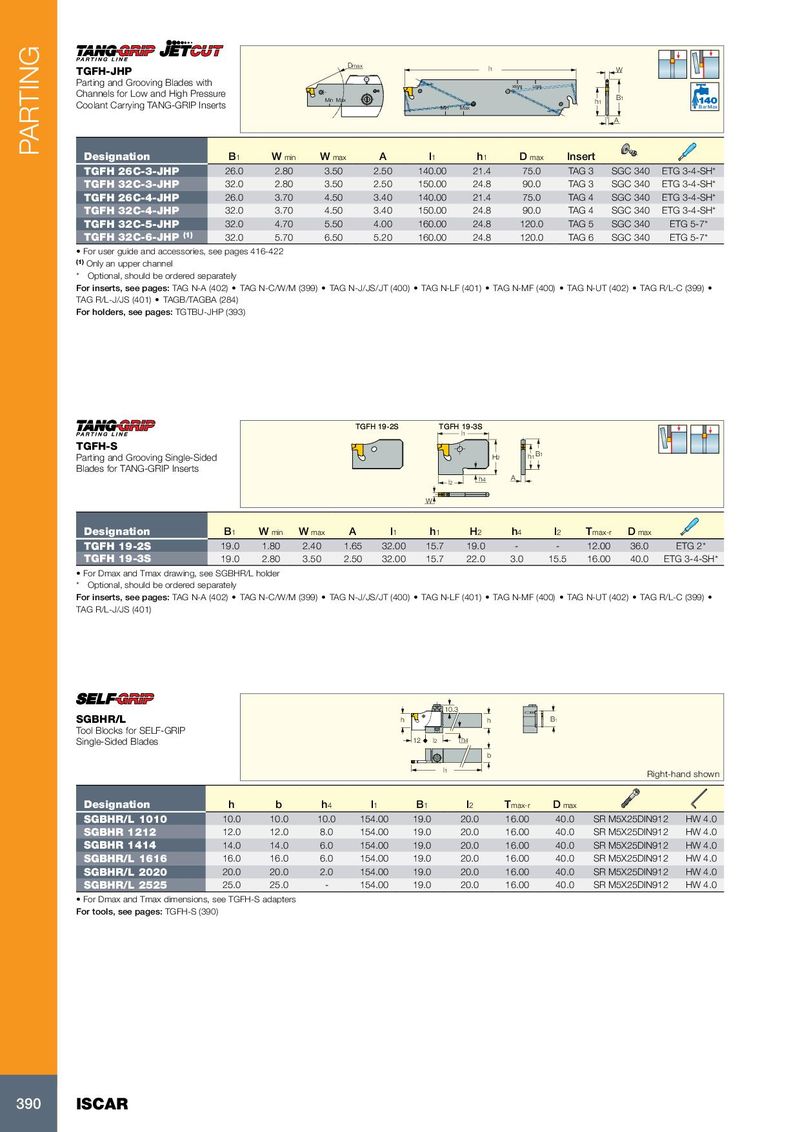

| TGFH-JHP Parting and Grooving Blades wit Channels for Low and High Pres Coolant Carrying TANG-GRIP In | h sure serts | D Min Max | max | Min | l1 Max | Min Max | h1 | W B1 A | Bar Max | |
| Designation | B1 | Wmin | Wmax | A | l1 | h1 | Dmax | Insert | ||
| TGFH 26C-3-JHP | 26.0 | 2.80 | 3.50 | 2.50 | 140.00 | 21.4 | 75.0 | TAG 3 | SGC 340 | ETG 3-4-SH |
| TGFH 32C-3-JHP | 32.0 | 2.80 | 3.50 | 2.50 | 150.00 | 24.8 | 90.0 | TAG 3 | SGC 340 | ETG 3-4-SH |
| TGFH 26C-4-JHP | 26.0 | 3.70 | 4.50 | 3.40 | 140.00 | 21.4 | 75.0 | TAG 4 | SGC 340 | ETG 3-4-SH |
| TGFH 32C-4-JHP | 32.0 | 3.70 | 4.50 | 3.40 | 150.00 | 24.8 | 90.0 | TAG 4 | SGC 340 | ETG 3-4-SH |
| TGFH 32C-5-JHP | 32.0 | 4.70 | 5.50 | 4.00 | 160.00 | 24.8 | 120.0 | TAG 5 | SGC 340 | ETG 5-7 |
| TGFH 32C-6-JHP(1) | 32.0 | 5.70 | 6.50 | 5.20 | 160.00 | 24.8 | 120.0 | TAG 6 | SGC 340 | ETG 5-7 |
- For user guide and accessories, see pages 416-422
(1) Only an upper channel
- Optional, should be ordered separately
For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401) TAGB/TAGBA (284) For holders, see pages: TGTBU-JHP (393)
| TGFH-S Parting and Grooving Single-Sided Blades for TANG-GRIP Inserts | TGFH | 19-2S | TGF | H 19-3S l1 H2 | h1B1 | |||||||
| l2 W | h4 | A | ||||||||||
| Designation | B1 | Wmin | Wmax | A | l1 | h1 | H2 | h4 | l2 | Tmax-r | Dmax | |
| TGFH 19-2S | 19.0 | 1.80 | 2.40 | 1.65 | 32.00 | 15.7 | 19.0 | - | - | 12.00 | 36.0 | ETG 2 |
| TGFH 19-3S | 19.0 | 2.80 | 3.50 | 2.50 | 32.00 | 15.7 | 22.0 | 3.0 | 15.5 | 16.00 | 40.0 | ETG 3-4-SH |
- For Dmax and Tmax drawing, see SGBHR/L holder
- Optional, should be ordered separately
For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401)
| SGBHR/L Tool Blocks for SELF-GRIP Single-Sided Blades | h 12 l2 | h4 10.3 | h | B1 | ||||||
| l1 | b | Right-h | and shown | |||||||
| Designation | h | b | h4 | l1 | B1 | l2 | Tmax-r | Dmax | ||
| SGBHR/L 1010 | 10.0 | 10.0 | 10.0 | 154.00 | 19.0 | 20.0 | 16.00 | 40.0 | SR M5X25DIN912 | HW 4.0 |
| SGBHR 1212 | 12.0 | 12.0 | 8.0 | 154.00 | 19.0 | 20.0 | 16.00 | 40.0 | SR M5X25DIN912 | HW 4.0 |
| SGBHR 1414 | 14.0 | 14.0 | 6.0 | 154.00 | 19.0 | 20.0 | 16.00 | 40.0 | SR M5X25DIN912 | HW 4.0 |
| SGBHR/L 1616 | 16.0 | 16.0 | 6.0 | 154.00 | 19.0 | 20.0 | 16.00 | 40.0 | SR M5X25DIN912 | HW 4.0 |
| SGBHR/L 2020 | 20.0 | 20.0 | 2.0 | 154.00 | 19.0 | 20.0 | 16.00 | 40.0 | SR M5X25DIN912 | HW 4.0 |
| SGBHR/L 2525 | 25.0 | 25.0 | - | 154.00 | 19.0 | 20.0 | 16.00 | 40.0 | SR M5X25DIN912 | HW 4.0 |
- For Dmax and Tmax dimensions, see TGFH-S adapters
For tools, see pages: TGFH-S (390)
