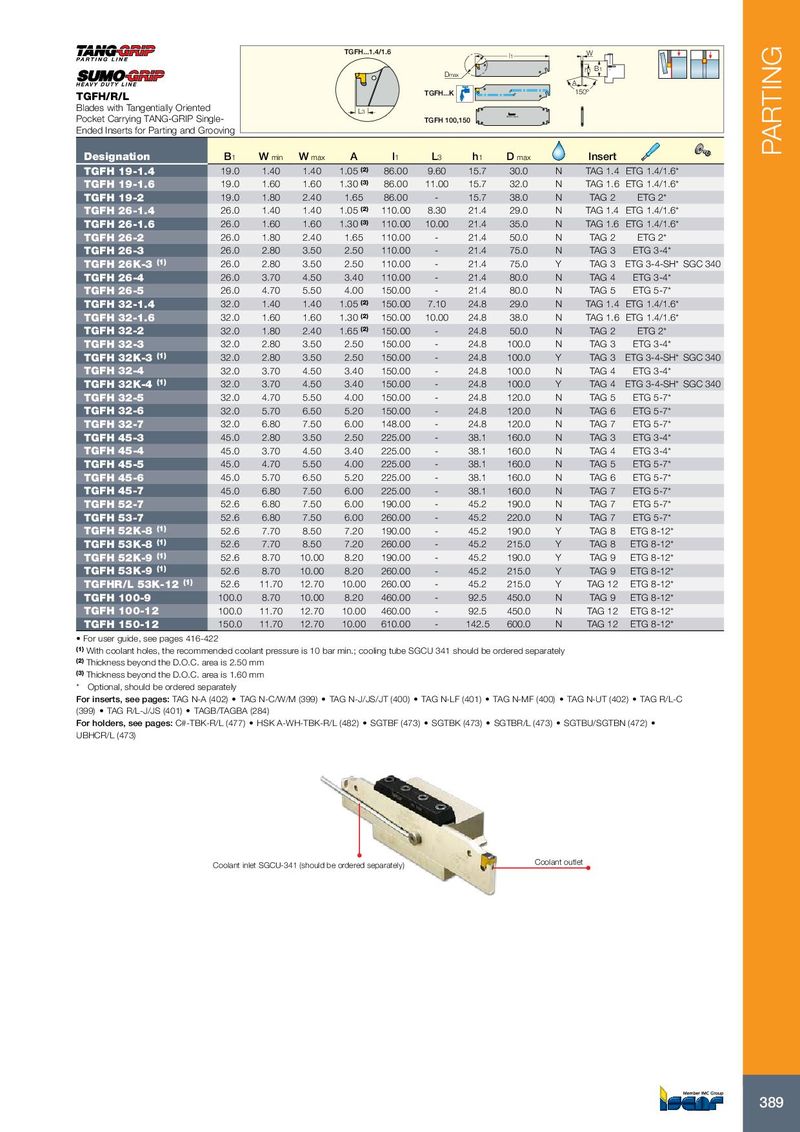

| TGFH...1. | 4/1.6 | Dmax | l1 | A W h1 B1 | ||||||||
| TGFH/R/L | TGFH...K | 150º | ||||||||||
| Blades with Tangentially Oriente Pocket Carrying TANG-GRIP Sin | gle- | L3 | TGFH 100, | 150 | TGFH 100-9 | |||||||
| Ended Inserts for Partingand Gr | ooving | |||||||||||
| Designation | B1 | Wmin | Wmax | A | l1 | L3 | h1 | Dmax | Insert | |||
| TGFH 19-1.4 | 19.0 | 1.40 | 1.40 | 1.05(2) | 86.00 | 9.60 | 15.7 | 30.0 | N | TAG 1.4 | ETG 1.4/1.6 | |
| TGFH 19-1.6 | 19.0 | 1.60 | 1.60 | 1.30(3) | 86.00 | 11.00 | 15.7 | 32.0 | N | TAG 1.6 | ETG 1.4/1.6 | |
| TGFH 19-2 | 19.0 | 1.80 | 2.40 | 1.65 | 86.00 | - | 15.7 | 38.0 | N | TAG 2 | ETG 2 | |
| TGFH 26-1.4 | 26.0 | 1.40 | 1.40 | 1.05(2) | 110.00 | 8.30 | 21.4 | 29.0 | N | TAG 1.4 | ETG 1.4/1.6 | |
| TGFH 26-1.6 | 26.0 | 1.60 | 1.60 | 1.30(3) | 110.00 | 10.00 | 21.4 | 35.0 | N | TAG 1.6 | ETG 1.4/1.6 | |
| TGFH 26-2 | 26.0 | 1.80 | 2.40 | 1.65 | 110.00 | - | 21.4 | 50.0 | N | TAG 2 | ETG 2 | |
| TGFH 26-3 | 26.0 | 2.80 | 3.50 | 2.50 | 110.00 | - | 21.4 | 75.0 | N | TAG 3 | ETG 3-4 | |
| TGFH 26K-3(1) | 26.0 | 2.80 | 3.50 | 2.50 | 110.00 | - | 21.4 | 75.0 | Y | TAG 3 | ETG 3-4-SH | SGC 340 |
| TGFH 26-4 | 26.0 | 3.70 | 4.50 | 3.40 | 110.00 | - | 21.4 | 80.0 | N | TAG 4 | ETG 3-4 | |
| TGFH 26-5 | 26.0 | 4.70 | 5.50 | 4.00 | 150.00 | - | 21.4 | 80.0 | N | TAG 5 | ETG 5-7 | |
| TGFH 32-1.4 | 32.0 | 1.40 | 1.40 | 1.05(2) | 150.00 | 7.10 | 24.8 | 29.0 | N | TAG 1.4 | ETG 1.4/1.6 | |
| TGFH 32-1.6 | 32.0 | 1.60 | 1.60 | 1.30(2) | 150.00 | 10.00 | 24.8 | 38.0 | N | TAG 1.6 | ETG 1.4/1.6 | |
| TGFH 32-2 | 32.0 | 1.80 | 2.40 | 1.65(2) | 150.00 | - | 24.8 | 50.0 | N | TAG 2 | ETG 2 | |
| TGFH 32-3 | 32.0 | 2.80 | 3.50 | 2.50 | 150.00 | - | 24.8 | 100.0 | N | TAG 3 | ETG 3-4 | |
| TGFH 32K-3(1) | 32.0 | 2.80 | 3.50 | 2.50 | 150.00 | - | 24.8 | 100.0 | Y | TAG 3 | ETG 3-4-SH | SGC 340 |
| TGFH 32-4 | 32.0 | 3.70 | 4.50 | 3.40 | 150.00 | - | 24.8 | 100.0 | N | TAG 4 | ETG 3-4 | |
| TGFH 32K-4(1) | 32.0 | 3.70 | 4.50 | 3.40 | 150.00 | - | 24.8 | 100.0 | Y | TAG 4 | ETG 3-4-SH | SGC 340 |
| TGFH 32-5 | 32.0 | 4.70 | 5.50 | 4.00 | 150.00 | - | 24.8 | 120.0 | N | TAG 5 | ETG 5-7 | |
| TGFH 32-6 | 32.0 | 5.70 | 6.50 | 5.20 | 150.00 | - | 24.8 | 120.0 | N | TAG 6 | ETG 5-7 | |
| TGFH 32-7 | 32.0 | 6.80 | 7.50 | 6.00 | 148.00 | - | 24.8 | 120.0 | N | TAG 7 | ETG 5-7 | |
| TGFH 45-3 | 45.0 | 2.80 | 3.50 | 2.50 | 225.00 | - | 38.1 | 160.0 | N | TAG 3 | ETG 3-4 | |
| TGFH 45-4 | 45.0 | 3.70 | 4.50 | 3.40 | 225.00 | - | 38.1 | 160.0 | N | TAG 4 | ETG 3-4 | |
| TGFH 45-5 | 45.0 | 4.70 | 5.50 | 4.00 | 225.00 | - | 38.1 | 160.0 | N | TAG 5 | ETG 5-7 | |
| TGFH 45-6 | 45.0 | 5.70 | 6.50 | 5.20 | 225.00 | - | 38.1 | 160.0 | N | TAG 6 | ETG 5-7 | |
| TGFH 45-7 | 45.0 | 6.80 | 7.50 | 6.00 | 225.00 | - | 38.1 | 160.0 | N | TAG 7 | ETG 5-7 | |
| TGFH 52-7 | 52.6 | 6.80 | 7.50 | 6.00 | 190.00 | - | 45.2 | 190.0 | N | TAG 7 | ETG 5-7 | |
| TGFH 53-7 | 52.6 | 6.80 | 7.50 | 6.00 | 260.00 | - | 45.2 | 220.0 | N | TAG 7 | ETG 5-7 | |
| TGFH 52K-8(1) | 52.6 | 7.70 | 8.50 | 7.20 | 190.00 | - | 45.2 | 190.0 | Y | TAG 8 | ETG 8-12 | |
| TGFH 53K-8(1) | 52.6 | 7.70 | 8.50 | 7.20 | 260.00 | - | 45.2 | 215.0 | Y | TAG 8 | ETG 8-12 | |
| TGFH 52K-9(1) | 52.6 | 8.70 | 10.00 | 8.20 | 190.00 | - | 45.2 | 190.0 | Y | TAG 9 | ETG 8-12 | |
| TGFH 53K-9(1) | 52.6 | 8.70 | 10.00 | 8.20 | 260.00 | - | 45.2 | 215.0 | Y | TAG 9 | ETG 8-12 | |
| TGFHR/L 53K-12(1) | 52.6 | 11.70 | 12.70 | 10.00 | 260.00 | - | 45.2 | 215.0 | Y | TAG 12 | ETG 8-12 | |
| TGFH 100-9 | 100.0 | 8.70 | 10.00 | 8.20 | 460.00 | - | 92.5 | 450.0 | N | TAG 9 | ETG 8-12 | |
| TGFH 100-12 | 100.0 | 11.70 | 12.70 | 10.00 | 460.00 | - | 92.5 | 450.0 | N | TAG 12 | ETG 8-12 | |
| TGFH 150-12 | 150.0 | 11.70 | 12.70 | 10.00 | 610.00 | - | 142.5 | 600.0 | N | TAG 12 | ETG 8-12 |
- For user guide, see pages 416-422
(1) With coolant holes, the recommended coolant pressure is 10 bar min.; cooling tube SGCU 341 should be ordered separately (2) Thickness beyond the D.O.C. area is 2.50 mm (3) Thickness beyond the D.O.C. area is 1.60 mm * Optional, should be ordered separately For inserts, see pages: TAG N-A (402) TAG N-C/W/M (399) TAG N-J/JS/JT (400) TAG N-LF (401) TAG N-MF (400) TAG N-UT (402) TAG R/L-C (399) TAG R/L-J/JS (401) TAGB/TAGBA (284) For holders, see pages: C#-TBK-R/L (477) HSK A-WH-TBK-R/L (482) SGTBF (473) SGTBK (473) SGTBR/L (473) SGTBU/SGTBN (472) UBHCR/L (473)
Coolant inlet SGCU-341 (should be ordered separately) Coolant outlet
