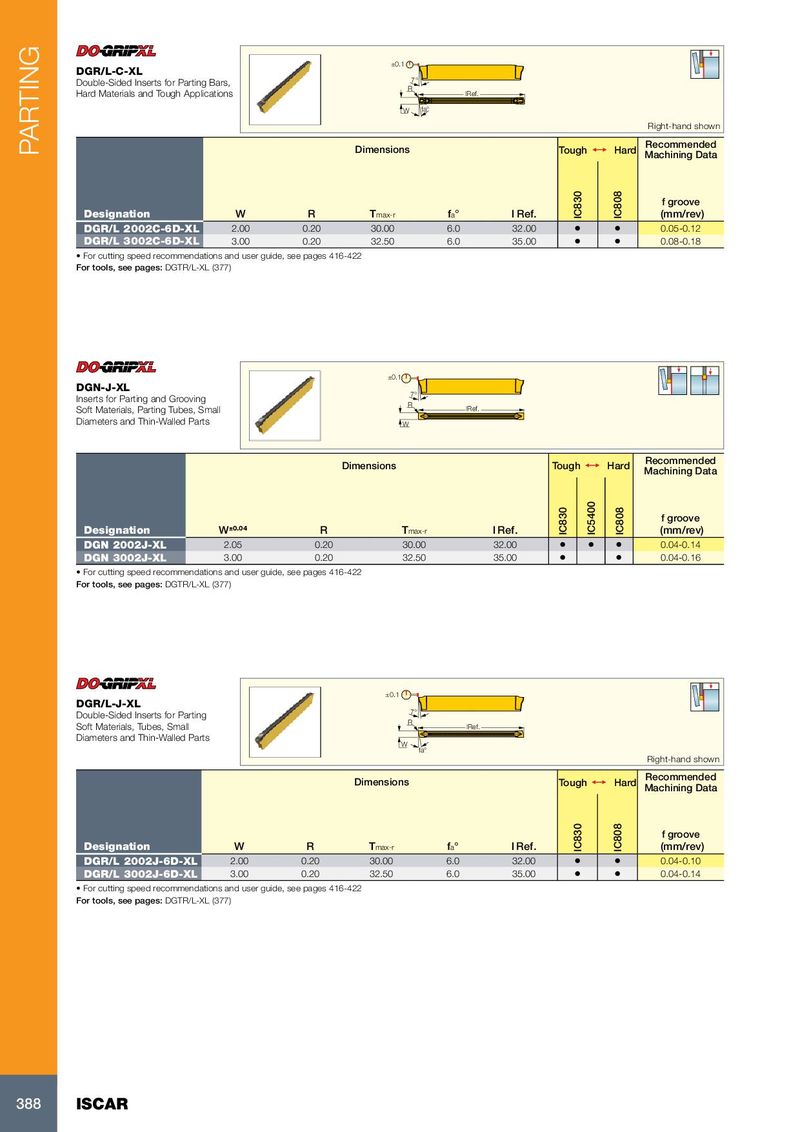

Каталог Iscar токарный инструмент 2017 - страница 392

PARTING
±0.1
DGR/L-C-XL
Double-Sided Inserts for Parting Bars, 7°
R
Hard Materials and Tough Applications lRef.
W fa°
Right-hand shown
Recommended
Dimensions Tough 1 Hard
Machining Data


IC830

IC808
f groove
Designation W R Tmax-r fa° l Ref. (mm/rev)
DGR/L 2002C-6D-XL 2.00 0.20 30.00 6.0 32.00 • • 0.05-0.12
DGR/L 3002C-6D-XL 3.00 0.20 32.50 6.0 35.00 • • 0.08-0.18
• For cutting speed recommendations and user guide, see pages 416-422
For tools, see pages: DGTR/L-XL (377)


±0.1
DGN-J-XL
7°
Inserts for Parting and Grooving
R
Soft Materials, Parting Tubes, Small lRef.
Diameters and Thin-Walled Parts W


Recommended
Dimensions Tough 1 Hard
Machining Data


IC5400
IC830


IC808
f groove
Designation W±0.04 R Tmax-r l Ref. (mm/rev)
DGN 2002J-XL 2.05 0.20 30.00 32.00 • • • 0.04-0.14
DGN 3002J-XL 3.00 0.20 32.50 35.00 • • 0.04-0.16
• For cutting speed recommendations and user guide, see pages 416-422
For tools, see pages: DGTR/L-XL (377)


±0.1
DGR/L-J-XL
7°
Double-Sided Inserts for Parting
R
Soft Materials, Tubes, Small lRef.
Diameters and Thin-Walled Parts
W
fa°
Right-hand shown
Recommended
Dimensions Tough 1 Hard
Machining Data
IC830

IC808


f groove
Designation W R Tmax-r fa° l Ref. (mm/rev)
DGR/L 2002J-6D-XL 2.00 0.20 30.00 6.0 32.00 • • 0.04-0.10
DGR/L 3002J-6D-XL 3.00 0.20 32.50 6.0 35.00 • • 0.04-0.14
• For cutting speed recommendations and user guide, see pages 416-422
For tools, see pages: DGTR/L-XL (377)


388 ISCAR
