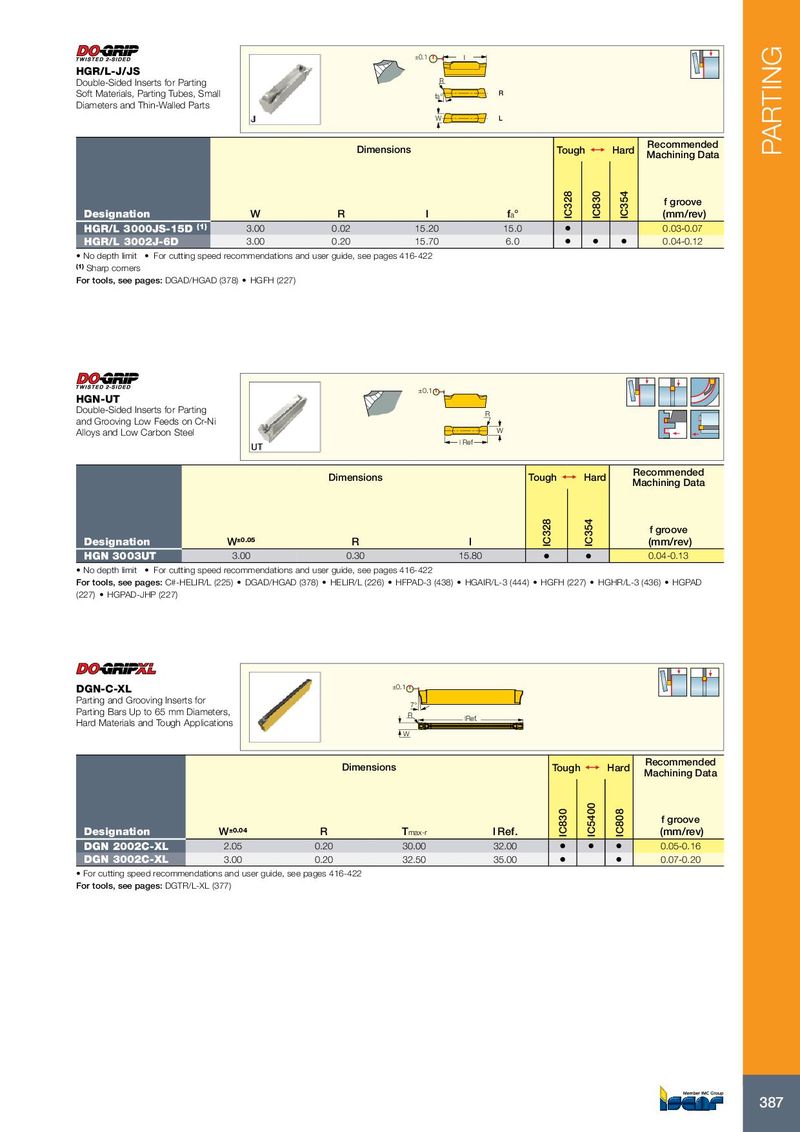

±0.1 l
HGR/L-J/JS
Double-Sided Inserts for Parting R Soft Materials, Parting Tubes, Small R fa° Diameters and Thin-Walled Parts W L
Dimensions
Recommended Tough 1 Hard Machining Data
f groove
| Designation | W | R | l | fa° | (mm/rev) | |||
| HGR/L 3000JS-15D (1) | 3.00 | 0.02 | 15.20 | 15.0 | • | 0.03-0.07 | ||
| HGR/L 3002J-6D | 3.00 | 0.20 | 15.70 | 6.0 | • | • | • | 0.04-0.12 |
- No depth limit
- For cutting speed recommendations and user guide, see pages 416-422
(1) Sharp corners For tools, see pages: DGAD/HGAD (378) HGFH (227)
HGN-UT
Double-Sided Inserts for Parting and Grooving Low Feeds on Cr-Ni Alloys and Low Carbon Steel
Dimensions
±0.1
R W l Ref
Tough 1 Hard
Recommended Machining Data
f groove
| Designation | W±0.05 | R | l | (mm/rev) | ||
| HGN 3003UT | 3.00 | 0.30 | 15.80 | • | • | 0.04-0.13 |
- No depth limit
- For cutting speed recommendations and user guide, see pages 416-422
For tools, see pages: C#-HELIR/L (225) DGAD/HGAD (378) HELIR/L (226) HFPAD-3 (438) HGAIR/L-3 (444) HGFH (227) HGHR/L-3 (436) HGPAD (227) HGPAD-JHP (227)
DGN-C-XL ±0.1 Parting and Grooving Inserts for Parting Bars Up to 65 mm Diameters, 7° R lRef. Hard Materials and Tough Applications W
Dimensions
Tough 1 Hard
Recommended Machining Data
f groove
| Designation | W±0.04 | R | Tmax-r | l Ref. | (mm/rev) | |||
| DGN 2002C-XL | 2.05 | 0.20 | 30.00 | 32.00 | • | • | • | 0.05-0.16 |
| DGN 3002C-XL | 3.00 | 0.20 | 32.50 | 35.00 | • | • | 0.07-0.20 |
- For cutting speed recommendations and user guide, see pages 416-422
For tools, see pages: DGTR/L-XL (377)
