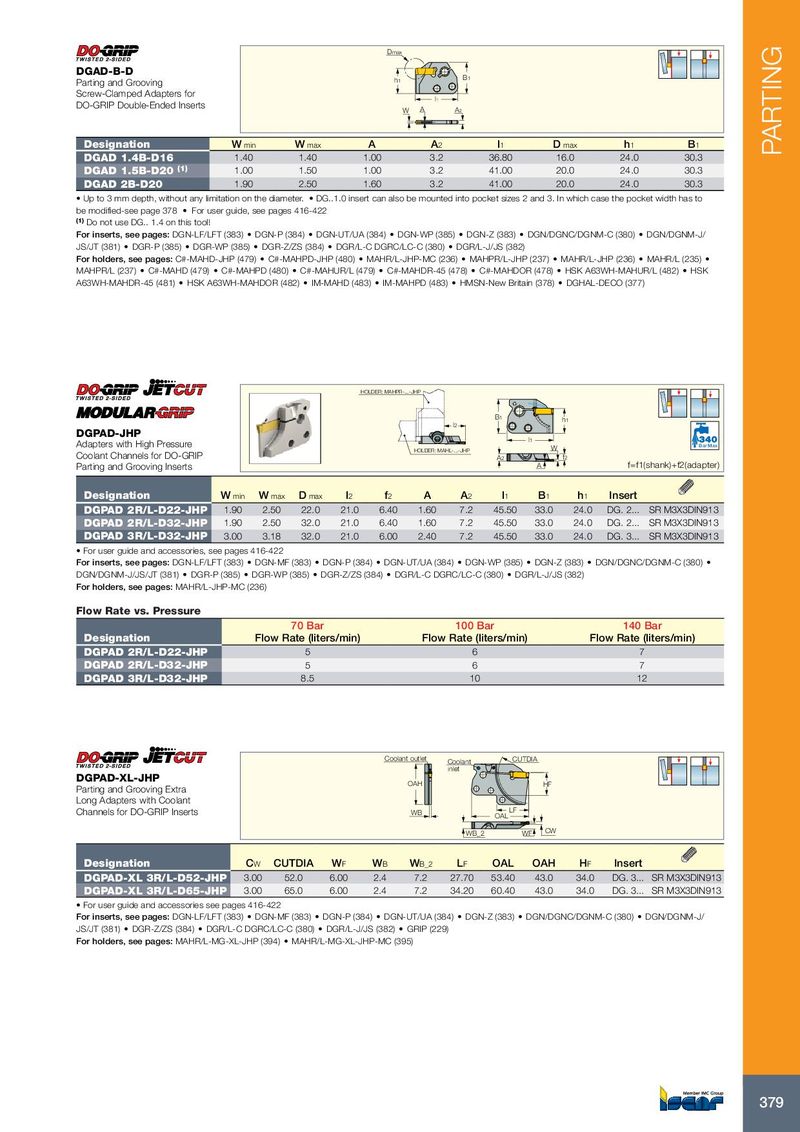

| DGAD-B-D Parting and Grooving Screw-Clamped Adapters for DO-GRIP Double-Ended Inserts | h1 l1 B1 W A A2 Dmax | ||||||
| Designation | Wmin | Wmax | A A2 | l1 | Dmax | h1 | B1 |
| DGAD 1.4B-D16 | 1.40 | 1.40 | 1.00 3.2 | 36.80 | 16.0 | 24.0 | 30.3 |
| DGAD 1.5B-D20(1) | 1.00 | 1.50 | 1.00 3.2 | 41.00 | 20.0 | 24.0 | 30.3 |
| DGAD 2B-D20 | 1.90 | 2.50 | 1.60 3.2 | 41.00 | 20.0 | 24.0 | 30.3 |
- Up to 3 mm depth, without any limitation on the diameter.
- DG..1.0 insert can also be mounted into pocket sizes 2 and 3. In which case the pocket width has to
be modified-see page 378 For user guide, see pages 416-422 (1) Do not use DG.. 1.4 on this tool! For inserts, see pages: DGN-LF/LFT (383) DGN-P (384) DGN-UT/UA (384) DGN-WP (385) DGN-Z (383) DGN/DGNC/DGNM-C (380) DGN/DGNM-J/ JS/JT (381) DGR-P (385) DGR-WP (385) DGR-Z/ZS (384) DGR/L-C DGRC/LC-C (380) DGR/L-J/JS (382) For holders, see pages: C#-MAHD-JHP (479) C#-MAHPD-JHP (480) MAHR/L-JHP-MC (236) MAHPR/L-JHP (237) MAHR/L-JHP (236) MAHR/L (235) MAHPR/L (237) C#-MAHD (479) C#-MAHPD (480) C#-MAHUR/L (479) C#-MAHDR-45 (478) C#-MAHDOR (478) HSK A63WH-MAHUR/L (482) HSK A63WH-MAHDR-45 (481) HSK A63WH-MAHDOR (482) IM-MAHD (483) IM-MAHPD (483) HMSN-New Britain (378) DGHAL-DECO (377)
| DGPAD-JHP Adapters with High Pressure Coolant Channels for DO-GRIP Parting and Grooving Inserts | HO | LDER: MAHPR-.. | HOLDER: MAH .-JHP | L-...-JHP l2 | A2 B1 | l1 h1 f2 W A | f=f1 | (shank)+f2(adapter) Bar Max | ||||
| Designation | Wmin | Wmax | Dmax | l2 | f2 | A | A2 | l1 | B1 | h1 | Insert | |
| DGPAD 2R/L-D22-JHP | 1.90 | 2.50 | 22.0 | 21.0 | 6.40 | 1.60 | 7.2 | 45.50 | 33.0 | 24.0 | DG. 2... | SR M3X3DIN913 |
| DGPAD 2R/L-D32-JHP | 1.90 | 2.50 | 32.0 | 21.0 | 6.40 | 1.60 | 7.2 | 45.50 | 33.0 | 24.0 | DG. 2... | SR M3X3DIN913 |
| DGPAD 3R/L-D32-JHP | 3.00 | 3.18 | 32.0 | 21.0 | 6.00 | 2.40 | 7.2 | 45.50 | 33.0 | 24.0 | DG. 3... | SR M3X3DIN913 |
- For user guide and accessories, see pages 416-422
For inserts, see pages: DGN-LF/LFT (383) DGN-MF (383) DGN-P (384) DGN-UT/UA (384) DGN-WP (385) DGN-Z (383) DGN/DGNC/DGNM-C (380) DGN/DGNM-J/JS/JT (381) DGR-P (385) DGR-WP (385) DGR-Z/ZS (384) DGR/L-C DGRC/LC-C (380) DGR/L-J/JS (382) For holders, see pages: MAHR/L-JHP-MC (236)
Flow Rate vs. Pressure
| Designation | 70 Bar Flow Rate(liters/min) | 100 Bar Flow Rate(liters/min) | 140 Bar Flow Rate(liters/min) |
| DGPAD 2R/L-D22-JHP | 5 | 6 | 7 |
| DGPAD 2R/L-D32-JHP | 5 | 6 | 7 |
| DGPAD 3R/L-D32-JHP | 8.5 | 10 | 12 |
| DGPAD-XL-JHP Parting and Grooving Extra | Coo | lant outlet OAH | Coolant inlet | CUT | DIA HF | ||||||
| Long Adapters with Coolant | |||||||||||
| Channels for DO-GRIP Inserts | WB | WB | 2 LF OAL | CW WF | |||||||
| Designation | CW | CUTDIA | WF | WB | WB2 | LF | OAL | OAH | HF | Insert | |
| DGPAD-XL 3R/L-D52-JHP | 3.00 | 52.0 | 6.00 | 2.4 | 7.2 | 27.70 | 53.40 | 43.0 | 34.0 | DG. 3... | SR M3X3DIN913 |
| DGPAD-XL 3R/L-D65-JHP | 3.00 | 65.0 | 6.00 | 2.4 | 7.2 | 34.20 | 60.40 | 43.0 | 34.0 | DG. 3... | SR M3X3DIN913 |
- For user guide and accessories see pages 416-422
For inserts, see pages: DGN-LF/LFT (383) DGN-MF (383) DGN-P (384) DGN-UT/UA (384) DGN-Z (383) DGN/DGNC/DGNM-C (380) DGN/DGNM-J/ JS/JT (381) DGR-Z/ZS (384) DGR/L-C DGRC/LC-C (380) DGR/L-J/JS (382) GRIP (229) For holders, see pages: MAHR/L-MG-XL-JHP (394) MAHR/L-MG-XL-JHP-MC (395)
