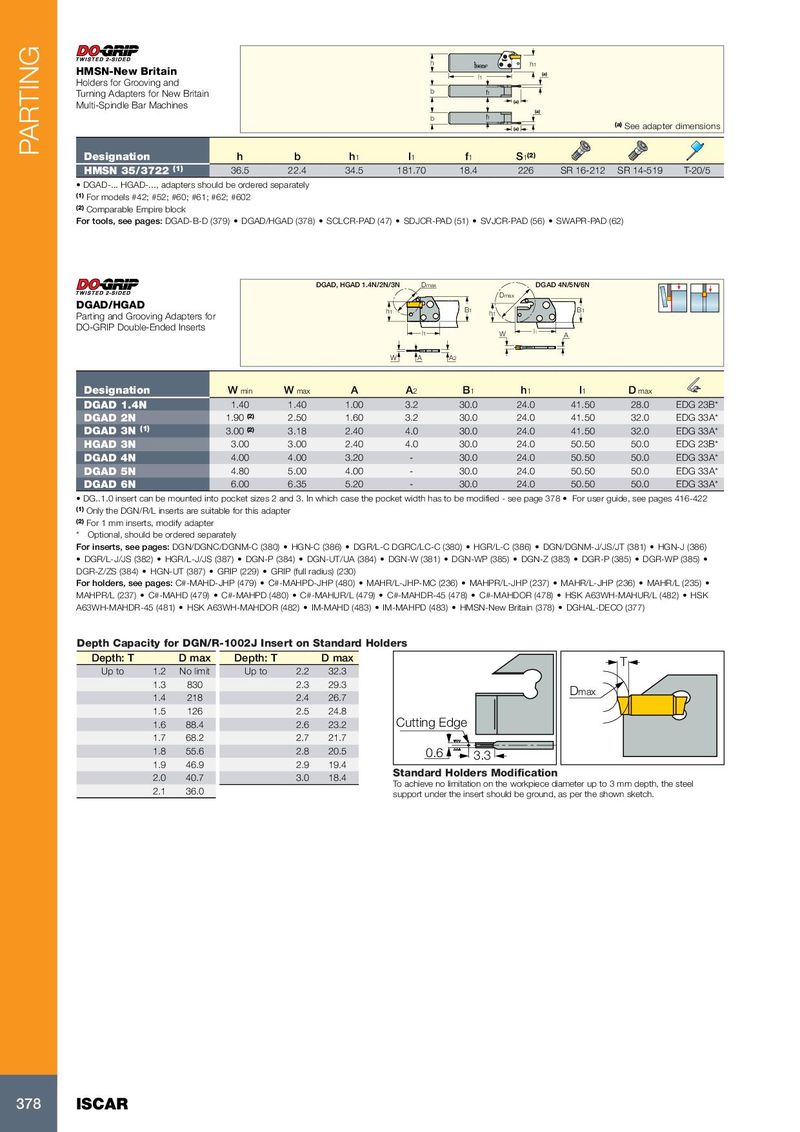

h h1
HMSN-New Britain
| Holders for Grooving and | l 1 | (a) | |
| Turning Adapters for New Britain | b | f1 |
Multi-Spindle Bar Machines (a) (a) b f1 (a) See adapter dimensions
(a)
| Designation | h | b | h1 | l1 | f1 | S1(2) | |||
| HMSN 35/3722 (1) | 36.5 | 22.4 | 34.5 | 181.70 | 18.4 | 226 | SR 16-212 | SR 14-519 | T-20/5 |
- DGAD-... HGAD-..., adapters should be ordered separately
(1) For models #42; #52; #60; #61; #62; #602 (2) Comparable Empire block For tools, see pages: DGAD-B-D (379) DGAD/HGAD (378) SCLCR-PAD (47) SDJCR-PAD (51) SVJCR-PAD (56) SWAPR-PAD (62)
| DGAD/HGAD Parting and Grooving Adapters for DO-GRIP Double-Ended Inserts | DG | AD, HGAD 1.4N | Dmax h1 /2N/3N l1 A W | B1 A2 | DGAD 4N/5N/6N h1 l1 B1 A W Dmax | |||
| Designation | Wmin | Wmax | A | A2 | B1 | h1 l1 | Dmax | |
| DGAD 1.4N | 1.40 | 1.40 | 1.00 | 3.2 | 30.0 | 24.0 41.50 | 28.0 | EDG 23B |
| DGAD 2N | 1.90(2) | 2.50 | 1.60 | 3.2 | 30.0 | 24.0 41.50 | 32.0 | EDG 33A |
| DGAD 3N(1) | 3.00(2) | 3.18 | 2.40 | 4.0 | 30.0 | 24.0 41.50 | 32.0 | EDG 33A |
| HGAD 3N | 3.00 | 3.00 | 2.40 | 4.0 | 30.0 | 24.0 50.50 | 50.0 | EDG 23B |
| DGAD 4N | 4.00 | 4.00 | 3.20 | - | 30.0 | 24.0 50.50 | 50.0 | EDG 33A |
| DGAD 5N | 4.80 | 5.00 | 4.00 | - | 30.0 | 24.0 50.50 | 50.0 | EDG 33A |
| DGAD 6N | 6.00 | 6.35 | 5.20 | - | 30.0 | 24.0 50.50 | 50.0 | EDG 33A |
- DG..1.0 insert can be mounted into pocket sizes 2 and 3. In which case the pocket width has to be modified - see page 378
- For user guide, see pages 416-422
(1) Only the DGN/R/L inserts are suitable for this adapter (2) For 1 mm inserts, modify adapter * Optional, should be ordered separately For inserts, see pages: DGN/DGNC/DGNM-C (380) HGN-C (386) DGR/L-C DGRC/LC-C (380) HGR/L-C (386) DGN/DGNM-J/JS/JT (381) HGN-J (386)
- DGR/L-J/JS (382)
- HGR/L-J/JS (387)
- DGN-P (384)
- DGN-UT/UA (384)
- DGN-W (381)
- DGN-WP (385)
- DGN-Z (383)
- DGR-P (385)
- DGR-WP (385)
DGR-Z/ZS (384) HGN-UT (387) GRIP (229) GRIP (full radius) (230) For holders, see pages: C#-MAHD-JHP (479) C#-MAHPD-JHP (480) MAHR/L-JHP-MC (236) MAHPR/L-JHP (237) MAHR/L-JHP (236) MAHR/L (235) MAHPR/L (237) C#-MAHD (479) C#-MAHPD (480) C#-MAHUR/L (479) C#-MAHDR-45 (478) C#-MAHDOR (478) HSK A63WH-MAHUR/L (482) HSK A63WH-MAHDR-45 (481) HSK A63WH-MAHDOR (482) IM-MAHD (483) IM-MAHPD (483) HMSN-New Britain (378) DGHAL-DECO (377)
Depth Capacity for DGN/R-1002J Insert on Standard Holders
| Depth: T | D max | Depth: T | D max | ||
| Up to | 1.2 | No limit | Up to | 2.2 | 32.3 |
| 1.3 | 830 | 2.3 | 29.3 | ||
| 1.4 | 218 | 2.4 | 26.7 | ||
| 1.5 | 126 | 2.5 | 24.8 | ||
| 1.6 | 88.4 | 2.6 | 23.2 | ||
| 1.7 | 68.2 | 2.7 | 21.7 | ||
| 1.8 | 55.6 | 2.8 | 20.5 | ||
| 1.9 | 46.9 | 2.9 | 19.4 | ||
| 2.0 | 40.7 | 3.0 | 18.4 | ||
| 2.1 | 36.0 |
max
Standard Holders Modification
To achieve no limitation on the workpiece diameter up to 3 mm depth, the steel
