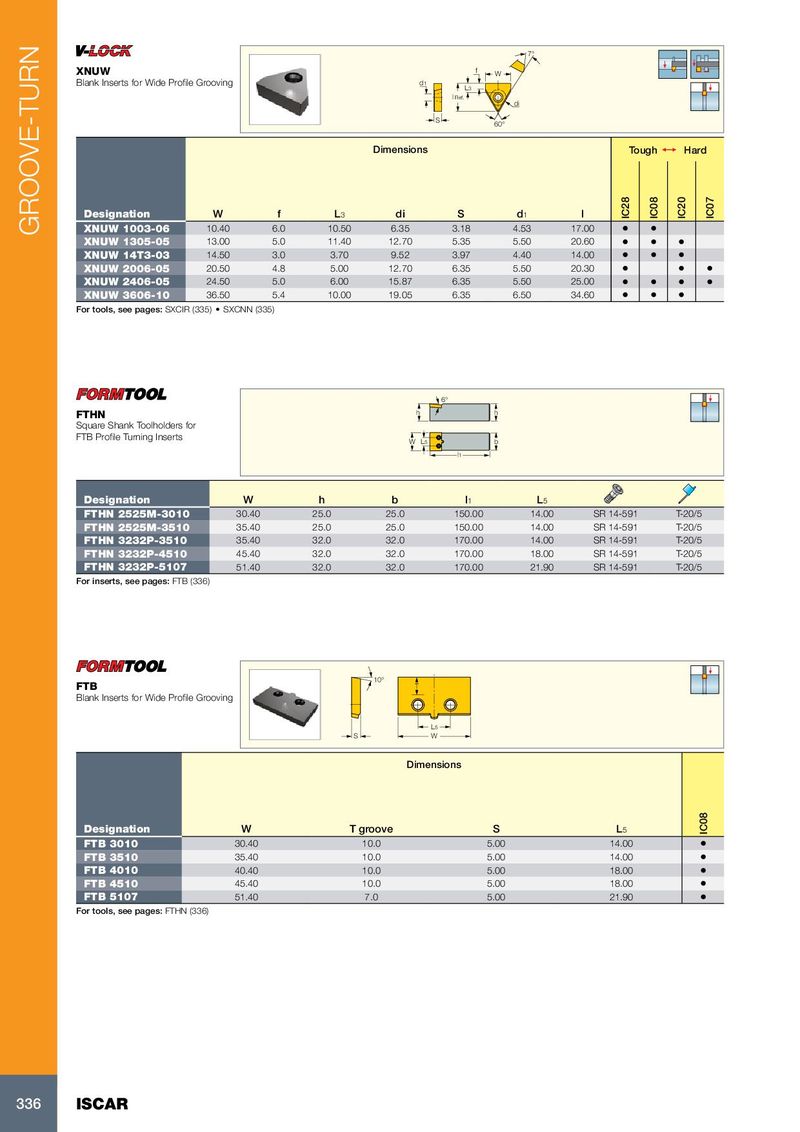

Каталог Iscar токарный инструмент 2017 - страница 340

GROOVE-TURN
7°
XNUW f W
Blank Inserts for Wide Profile Grooving d1
L3
l Ref.
di
S
60°

Dimensions Tough 1 Hard


IC28
IC08
IC20
IC07
Designation W f L3 di S d1 l
XNUW 1003-06 10.40 6.0 10.50 6.35 3.18 4.53 17.00 • •
XNUW 1305-05 13.00 5.0 11.40 12.70 5.35 5.50 20.60 • • •
XNUW 14T3-03 14.50 3.0 3.70 9.52 3.97 4.40 14.00 • • •
XNUW 2006-05 20.50 4.8 5.00 12.70 6.35 5.50 20.30 • • •
XNUW 2406-05 24.50 5.0 6.00 15.87 6.35 5.50 25.00 • • • •
XNUW 3606-10 36.50 5.4 10.00 19.05 6.35 6.50 34.60 • • •
For tools, see pages: SXCIR (335) • SXCNN (335)


6°
FTHN h h
Square Shank Toolholders for
FTB Profile Turning Inserts W L5 b
l1


Designation W h b l1 L5
FTHN 2525M-3010 30.40 25.0 25.0 150.00 14.00 SR 14-591 T-20/5
FTHN 2525M-3510 35.40 25.0 25.0 150.00 14.00 SR 14-591 T-20/5
FTHN 3232P-3510 35.40 32.0 32.0 170.00 14.00 SR 14-591 T-20/5
FTHN 3232P-4510 45.40 32.0 32.0 170.00 18.00 SR 14-591 T-20/5
FTHN 3232P-5107 51.40 32.0 32.0 170.00 21.90 SR 14-591 T-20/5
For inserts, see pages: FTB (336)


10°
FTB T
Blank Inserts for Wide Profile Grooving
L5
S W

Dimensions
IC08


Designation W T groove S L5
FTB 3010 30.40 10.0 5.00 14.00 •
FTB 3510 35.40 10.0 5.00 14.00 •
FTB 4010 40.40 10.0 5.00 18.00 •
FTB 4510 45.40 10.0 5.00 18.00 •
FTB 5107 51.40 7.0 5.00 21.90 •
For tools, see pages: FTHN (336)


336 ISCAR
