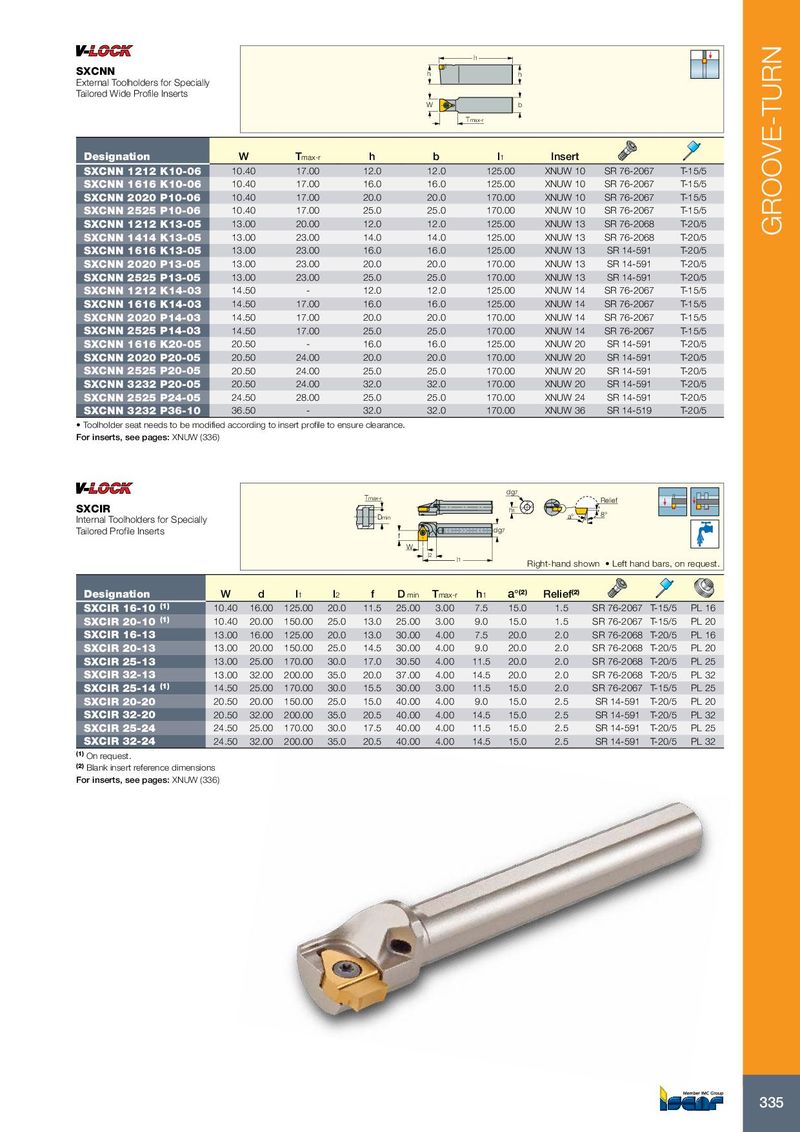

| l1 | |||||||
| XCNN xternal Toolholders for Specially | h h | ||||||
| ilored Wide Profile Inserts | W b | ||||||
| Tmax-r | |||||||
| Designation | W | Tmax-r | h | b l1 | Insert | ||
| SXCNN 1212 K10-06 | 10.40 | 17.00 | 12.0 | 12.0 125.00 | XNUW 10 | SR 76-2067 | T-15/5 |
| SXCNN 1616 K10-06 | 10.40 | 17.00 | 16.0 | 16.0 125.00 | XNUW 10 | SR 76-2067 | T-15/5 |
| SXCNN 2020 P10-06 | 10.40 | 17.00 | 20.0 | 20.0 170.00 | XNUW 10 | SR 76-2067 | T-15/5 |
| SXCNN 2525 P10-06 | 10.40 | 17.00 | 25.0 | 25.0 170.00 | XNUW 10 | SR 76-2067 | T-15/5 |
| SXCNN 1212 K13-05 | 13.00 | 20.00 | 12.0 | 12.0 125.00 | XNUW 13 | SR 76-2068 | T-20/5 |
| SXCNN 1414 K13-05 | 13.00 | 23.00 | 14.0 | 14.0 125.00 | XNUW 13 | SR 76-2068 | T-20/5 |
| SXCNN 1616 K13-05 | 13.00 | 23.00 | 16.0 | 16.0 125.00 | XNUW 13 | SR 14-591 | T-20/5 |
| SXCNN 2020 P13-05 | 13.00 | 23.00 | 20.0 | 20.0 170.00 | XNUW 13 | SR 14-591 | T-20/5 |
| SXCNN 2525 P13-05 | 13.00 | 23.00 | 25.0 | 25.0 170.00 | XNUW 13 | SR 14-591 | T-20/5 |
| SXCNN 1212 K14-03 | 14.50 | - | 12.0 | 12.0 125.00 | XNUW 14 | SR 76-2067 | T-15/5 |
| SXCNN 1616 K14-03 | 14.50 | 17.00 | 16.0 | 16.0 125.00 | XNUW 14 | SR 76-2067 | T-15/5 |
| SXCNN 2020 P14-03 | 14.50 | 17.00 | 20.0 | 20.0 170.00 | XNUW 14 | SR 76-2067 | T-15/5 |
| SXCNN 2525 P14-03 | 14.50 | 17.00 | 25.0 | 25.0 170.00 | XNUW 14 | SR 76-2067 | T-15/5 |
| SXCNN 1616 K20-05 | 20.50 | - | 16.0 | 16.0 125.00 | XNUW 20 | SR 14-591 | T-20/5 |
| SXCNN 2020 P20-05 | 20.50 | 24.00 | 20.0 | 20.0 170.00 | XNUW 20 | SR 14-591 | T-20/5 |
| SXCNN 2525 P20-05 | 20.50 | 24.00 | 25.0 | 25.0 170.00 | XNUW 20 | SR 14-591 | T-20/5 |
| SXCNN 3232 P20-05 | 20.50 | 24.00 | 32.0 | 32.0 170.00 | XNUW 20 | SR 14-591 | T-20/5 |
| SXCNN 2525 P24-05 | 24.50 | 28.00 | 25.0 | 25.0 170.00 | XNUW 24 | SR 14-591 | T-20/5 |
| SXCNN 3232 P36-10 | 36.50 | - | 32.0 | 32.0 170.00 | XNUW 36 | SR 14-519 | T-20/5 |
- Toolholder seat needs to be modified according to insert profile to ensure clearance.
For inserts, see pages: XNUW (336)
| SXCIR | Tmax-r | dg7 h1 | ° | 8° Relief | |||||||||
| Internal Toolholders for Specially Tailored Profile Inserts | Dmin | f W | l1 l2 | d | g7 Rig | a ht-hand sh | own • Left han | d bars, on | request. | ||||
| Designation | W | d | l1 | l2 | f | Dmin | Tmax-r | h1 | a°(2) | Relief(2) | |||
| SXCIR 16-10(1) | 10.40 | 16.00 | 125.00 | 20.0 | 11.5 | 25.00 | 3.00 | 7.5 | 15.0 | 1.5 | SR 76-2067 | T-15/5 | PL 16 |
| SXCIR 20-10(1) | 10.40 | 20.00 | 150.00 | 25.0 | 13.0 | 25.00 | 3.00 | 9.0 | 15.0 | 1.5 | SR 76-2067 | T-15/5 | PL 20 |
| SXCIR 16-13 | 13.00 | 16.00 | 125.00 | 20.0 | 13.0 | 30.00 | 4.00 | 7.5 | 20.0 | 2.0 | SR 76-2068 | T-20/5 | PL 16 |
| SXCIR 20-13 | 13.00 | 20.00 | 150.00 | 25.0 | 14.5 | 30.00 | 4.00 | 9.0 | 20.0 | 2.0 | SR 76-2068 | T-20/5 | PL 20 |
| SXCIR 25-13 | 13.00 | 25.00 | 170.00 | 30.0 | 17.0 | 30.50 | 4.00 | 11.5 | 20.0 | 2.0 | SR 76-2068 | T-20/5 | PL 25 |
| SXCIR 32-13 | 13.00 | 32.00 | 200.00 | 35.0 | 20.0 | 37.00 | 4.00 | 14.5 | 20.0 | 2.0 | SR 76-2068 | T-20/5 | PL 32 |
| SXCIR 25-14(1) | 14.50 | 25.00 | 170.00 | 30.0 | 15.5 | 30.00 | 3.00 | 11.5 | 15.0 | 2.0 | SR 76-2067 | T-15/5 | PL 25 |
| SXCIR 20-20 | 20.50 | 20.00 | 150.00 | 25.0 | 15.0 | 40.00 | 4.00 | 9.0 | 15.0 | 2.5 | SR 14-591 | T-20/5 | PL 20 |
| SXCIR 32-20 | 20.50 | 32.00 | 200.00 | 35.0 | 20.5 | 40.00 | 4.00 | 14.5 | 15.0 | 2.5 | SR 14-591 | T-20/5 | PL 32 |
| SXCIR 25-24 | 24.50 | 25.00 | 170.00 | 30.0 | 17.5 | 40.00 | 4.00 | 11.5 | 15.0 | 2.5 | SR 14-591 | T-20/5 | PL 25 |
| SXCIR 32-24 | 24.50 | 32.00 | 200.00 | 35.0 | 20.5 | 40.00 | 4.00 | 14.5 | 15.0 | 2.5 | SR 14-591 | T-20/5 | PL 32 |
(1) On request. (2) Blank insert reference dimensions For inserts, see pages: XNUW (336)
