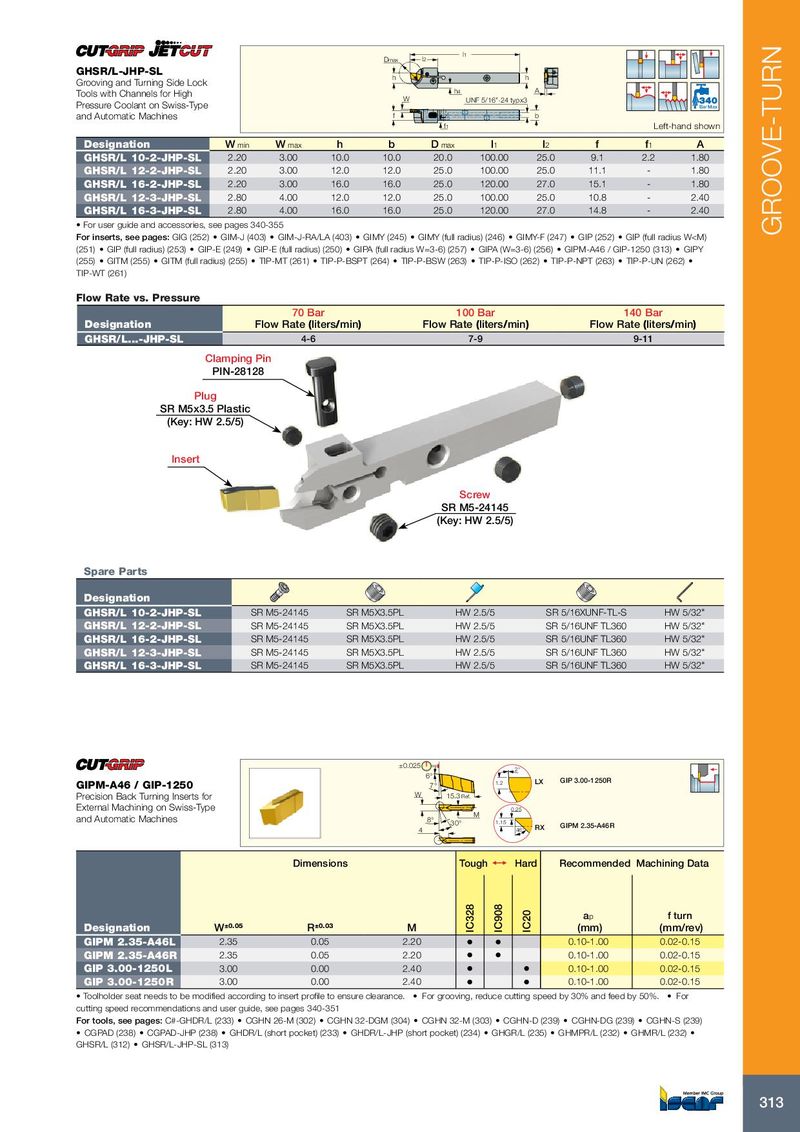

GHSR/L-JHP-SL Grooving and Turning Side Lock Tools with Channels for High Pressure Coolant on Swiss-Typeh W Dmaxl1 h4 l2UNF 5/16”-24 typA h x3Bar Max
and Automatic Machinesff1bLeft-hand shown
DesignationWminWmaxhbDmaxl1l2ff1A
GHSR/L 10-2-JHP-SL2.203.0010.010.020.0100.0025.09.12.21.80
GHSR/L 12-2-JHP-SL2.203.0012.012.025.0100.0025.011.1-1.80
GHSR/L 16-2-JHP-SL2.203.0016.016.025.0120.0027.015.1-1.80
GHSR/L 12-3-JHP-SL2.804.0012.012.025.0100.0025.010.8-2.40
GHSR/L 16-3-JHP-SL2.804.0016.016.025.0120.0027.014.8-2.40
  • For user guide and accessories, see pages 340-355

For inserts, see pages: GIG (252) GIM-J (403) GIM-J-RA/LA (403) GIMY (245) GIMY (full radius) (246) GIMY-F (247) GIP (252) GIP (full radius W<M) (251) GIP (full radius) (253) GIP-E (249) GIP-E (full radius) (250) GIPA (full radius W=3-6) (257) GIPA (W=3-6) (256) GIPM-A46 / GIP-1250 (313) GIPY (255) GITM (255) GITM (full radius) (255) TIP-MT (261) TIP-P-BSPT (264) TIP-P-BSW (263) TIP-P-ISO (262) TIP-P-NPT (263) TIP-P-UN (262) TIP-WT (261)

Flow Rate vs. Pressure

70 Bar 100 Bar 140 Bar

Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min)

GHSR/L...-JHP-SL 4-6 7-9 9-11

Clamping Pin PIN-28128 Plug SR M5x3.5 Plastic

(Key: HW 2.5/5)

Insert

Screw

SR M5-24145

(Key: HW 2.5/5)

Spare Parts

Designation
GHSR/L 10-2-JHP-SLSR M5-24145SR M5X3.5PLHW 2.5/5SR 5/16XUNF-TL-SHW 5/32"
GHSR/L 12-2-JHP-SLSR M5-24145SR M5X3.5PLHW 2.5/5SR 5/16UNF TL360HW 5/32"
GHSR/L 16-2-JHP-SLSR M5-24145SR M5X3.5PLHW 2.5/5SR 5/16UNF TL360HW 5/32"
GHSR/L 12-3-JHP-SLSR M5-24145SR M5X3.5PLHW 2.5/5SR 5/16UNF TL360HW 5/32"
GHSR/L 16-3-JHP-SLSR M5-24145SR M5X3.5PLHW 2.5/5SR 5/16UNF TL360HW 5/32"

±0.025 2° 6°

GIPM-A46 / GIP-1250LXGIP 3.00-1250R
7°1.2

Precision Back Turning Inserts for W 15.3

Ref. External Machining on Swiss-Type 0.25 and Automatic Machines M

8° 30°

1.15RXGIPM 2.35-A46R
446°

Dimensions Tough 1 Hard Recommended Machining Data

ap f turn

DesignationW±0.05R±0.03M(mm)(mm/rev)
GIPM 2.35-A46L2.350.052.20••0.10-1.000.02-0.15
GIPM 2.35-A46R2.350.052.20••0.10-1.000.02-0.15
GIP 3.00-1250L3.000.002.40••0.10-1.000.02-0.15
GIP 3.00-1250R3.000.002.40••0.10-1.000.02-0.15
  • Toolholder seat needs to be modified according to insert profile to ensure clearance.
  • For grooving, reduce cutting speed by 30% and feed by 50%.
  • For

cutting speed recommendations and user guide, see pages 340-351 For tools, see pages: C#-GHDR/L (233) CGHN 26-M (302) CGHN 32-DGM (304) CGHN 32-M (303) CGHN-D (239) CGHN-DG (239) CGHN-S (239)
