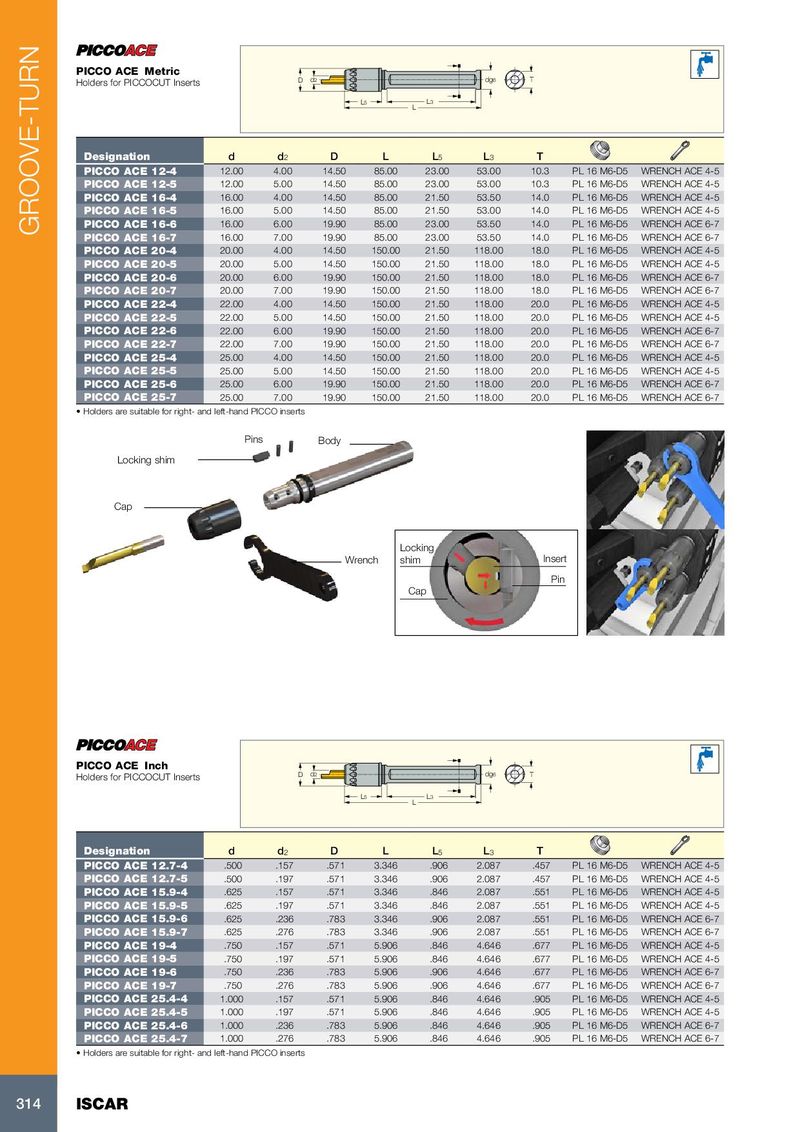

PICCO ACE Metric
| olders for PICCOCUT Inserts | D | d2 | dg6 | T | |||||
| L5 | L L3 | ||||||||
| Designation | d | d2 | D | L | L5 | L3 | T | ||
| PICCO ACE 12-4 | 12.00 | 4.00 | 14.50 | 85.00 | 23.00 | 53.00 | 10.3 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 12-5 | 12.00 | 5.00 | 14.50 | 85.00 | 23.00 | 53.00 | 10.3 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 16-4 | 16.00 | 4.00 | 14.50 | 85.00 | 21.50 | 53.50 | 14.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 16-5 | 16.00 | 5.00 | 14.50 | 85.00 | 21.50 | 53.00 | 14.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 16-6 | 16.00 | 6.00 | 19.90 | 85.00 | 23.00 | 53.50 | 14.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 16-7 | 16.00 | 7.00 | 19.90 | 85.00 | 23.00 | 53.50 | 14.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 20-4 | 20.00 | 4.00 | 14.50 | 150.00 | 21.50 | 118.00 | 18.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 20-5 | 20.00 | 5.00 | 14.50 | 150.00 | 21.50 | 118.00 | 18.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 20-6 | 20.00 | 6.00 | 19.90 | 150.00 | 21.50 | 118.00 | 18.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 20-7 | 20.00 | 7.00 | 19.90 | 150.00 | 21.50 | 118.00 | 18.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 22-4 | 22.00 | 4.00 | 14.50 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 22-5 | 22.00 | 5.00 | 14.50 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 22-6 | 22.00 | 6.00 | 19.90 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 22-7 | 22.00 | 7.00 | 19.90 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 25-4 | 25.00 | 4.00 | 14.50 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 25-5 | 25.00 | 5.00 | 14.50 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 25-6 | 25.00 | 6.00 | 19.90 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 25-7 | 25.00 | 7.00 | 19.90 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
- Holders are suitable for right- and left-hand PICCO inserts
| Cap Locking shim | P | ins | Body | |
| Wrench Locking shim Cap Insert Pin | ||||
| PICCO ACE Holders for PICCOCUT Inserts Inch | D | dg6 L L3 T L5 d2 | ||
| Designation | d | d2 | D L L5 L3 T | |
| PICCO ACE 12.7-4 | .500 | .157 | .571 3.346 .906 2.087 .457 | PL 16 M6-D5 WRENCH ACE 4-5 |
| PICCO ACE 12.7-5 | .500 | .197 | .571 3.346 .906 2.087 .457 | PL 16 M6-D5 WRENCH ACE 4-5 |
| PICCO ACE 15.9-4 | .625 | .157 | .571 3.346 .846 2.087 .551 | PL 16 M6-D5 WRENCH ACE 4-5 |
| PICCO ACE 15.9-5 | .625 | .197 | .571 3.346 .846 2.087 .551 | PL 16 M6-D5 WRENCH ACE 4-5 |
| PICCO ACE 15.9-6 | .625 | .236 | .783 3.346 .906 2.087 .551 | PL 16 M6-D5 WRENCH ACE 6-7 |
| PICCO ACE 15.9-7 | .625 | .276 | .783 3.346 .906 2.087 .551 | PL 16 M6-D5 WRENCH ACE 6-7 |
| PICCO ACE 19-4 | .750 | .157 | .571 5.906 .846 4.646 .677 | PL 16 M6-D5 WRENCH ACE 4-5 |
| PICCO ACE 19-5 | .750 | .197 | .571 5.906 .846 4.646 .677 | PL 16 M6-D5 WRENCH ACE 4-5 |
| PICCO ACE 19-6 | .750 | .236 | .783 5.906 .906 4.646 .677 | PL 16 M6-D5 WRENCH ACE 6-7 |
| PICCO ACE 19-7 | .750 | .276 | .783 5.906 .906 4.646 .677 | PL 16 M6-D5 WRENCH ACE 6-7 |
| PICCO ACE 25.4-4 | 1.000 | .157 | .571 5.906 .846 4.646 .905 | PL 16 M6-D5 WRENCH ACE 4-5 |
| PICCO ACE 25.4-5 | 1.000 | .197 | .571 5.906 .846 4.646 .905 | PL 16 M6-D5 WRENCH ACE 4-5 |
| PICCO ACE 25.4-6 | 1.000 | .236 | .783 5.906 .846 4.646 .905 | PL 16 M6-D5 WRENCH ACE 6-7 |
| PICCO ACE 25.4-7 | 1.000 | .276 | .783 5.906 .846 4.646 .905 | PL 16 M6-D5 WRENCH ACE 6-7 |
- Holders are suitable for right- and left-hand PICCO inserts
