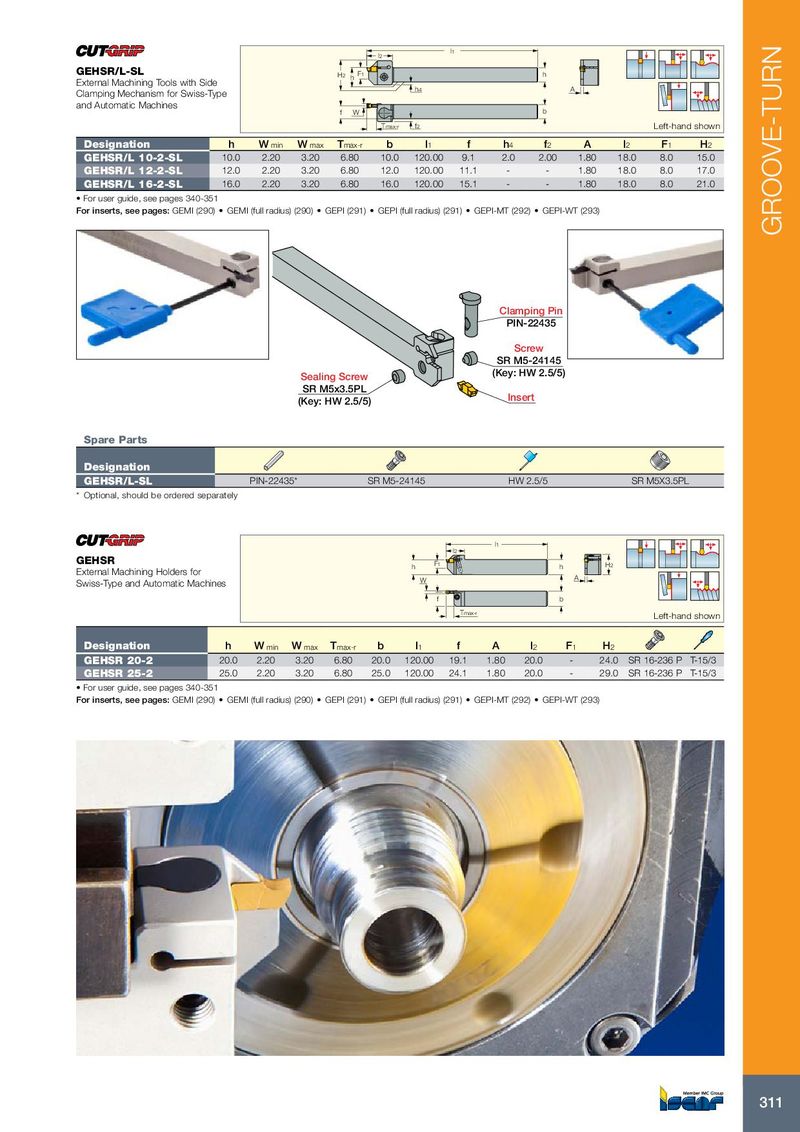

GEHSR/L-SL
| H2 | h F1 | h | |
| External Machining Tools with Side |
| Clamping Mechanism for Swiss-Type | h4 | A |
| and Automatic Machines |
f W b
Tmax-r f2 Left-hand shown
| Designation | h | W min | W max | T max-r | b | l1 | f | h4 | f2 | A | l2 | F1 | H2 | |
| GEHSR/L 10-2-SL | 10.0 | 2.20 | 3.20 | 6.80 | 10.0 | 120.00 | 9.1 | 2.0 | 2.00 | 1.80 | 18.0 | 8.0 | 15.0 | |
| GEHSR/L 12-2-SL | 12.0 | 2.20 | 3.20 | 6.80 | 12.0 | 120.00 | 11.1 | - | - | 1.80 | 18.0 | 8.0 | 17.0 | |
| GEHSR/L 16-2-SL | 16.0 | 2.20 | 3.20 | 6.80 | 16.0 | 120.00 | 15.1 | - | - | 1.80 | 18.0 | 8.0 | 21.0 |
- For user guide, see pages 340-351
For inserts, see pages: GEMI (290) GEMI (full radius) (290) GEPI (291) GEPI (full radius) (291) GEPI-MT (292) GEPI-WT (293)
Sealing Screw SR M5x3.5PL (Key: HW 2.5/5)
Spare Parts
Designation
GEHSR/L-SL PIN-22435* SR M5-24145
* Optional, should be ordered separately
Clamping Pin PIN-22435 Screw SR M5-24145 (Key: HW 2.5/5) Insert
HW 2.5/5 SR M5X3.5PL
l1 l2
GEHSR
| h | F1 | h | H2 | |
| External Machining Holders for |
| Swiss-Type and Automatic Machines | W | A | ||||
| f | b | |||||
| T max-r | Left-hand shown |
| Designation | h | W min | W max | Tmax-r | b | l1 | f | A | l2 | F 1 | H2 |
| GEHSR 20-2 | 20.0 | 2.20 | 3.20 | 6.80 | 20.0 | 120.00 | 19.1 | 1.80 | 20.0 | - | 24.0 SR 16-236 P T-15/3 |
| GEHSR 25-2 | 25.0 | 2.20 | 3.20 | 6.80 | 25.0 | 120.00 | 24.1 | 1.80 | 20.0 | - | 29.0 SR 16-236 P T-15/3 |
- For user guide, see pages 340-351
For inserts, see pages: GEMI (290) GEMI (full radius) (290) GEPI (291) GEPI (full radius) (291) GEPI-MT (292) GEPI-WT (293)
