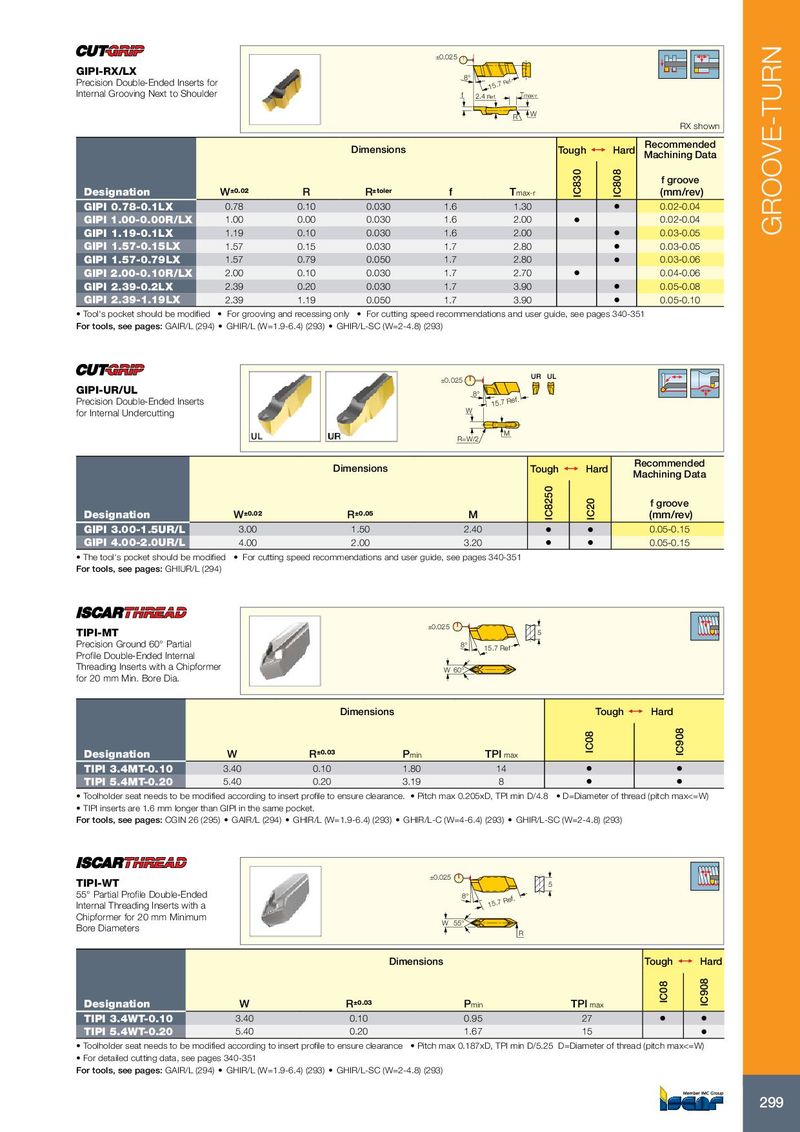

Каталог Iscar токарный инструмент 2017 - страница 303

GROOVE-TURN
±0.025
GIPI-RX/LX 8°
Precision Double-Ended Inserts for 15.7
Ref.
Internal Grooving Next to Shoulder f 2.4 Ref. Tmax-r

R W
RX shown
Recommended
Dimensions Tough 1 Hard
Machining Data


IC830

IC808
f groove
Designation W±0.02 R R±toler f Tmax-r (mm/rev)
GIPI 0.78-0.1LX 0.78 0.10 0.030 1.6 1.30 • 0.02-0.04
GIPI 1.00-0.00R/LX 1.00 0.00 0.030 1.6 2.00 • 0.02-0.04
GIPI 1.19-0.1LX 1.19 0.10 0.030 1.6 2.00 • 0.03-0.05
GIPI 1.57-0.15LX 1.57 0.15 0.030 1.7 2.80 • 0.03-0.05
GIPI 1.57-0.79LX 1.57 0.79 0.050 1.7 2.80 • 0.03-0.06
GIPI 2.00-0.10R/LX 2.00 0.10 0.030 1.7 2.70 • 0.04-0.06
GIPI 2.39-0.2LX 2.39 0.20 0.030 1.7 3.90 • 0.05-0.08
GIPI 2.39-1.19LX 2.39 1.19 0.050 1.7 3.90 • 0.05-0.10
• Tool's pocket should be modified • For grooving and recessing only • For cutting speed recommendations and user guide, see pages 340-351
For tools, see pages: GAIR/L (294) • GHIR/L (W=1.9-6.4) (293) • GHIR/L-SC (W=2-4.8) (293)


UR UL
±0.025
GIPI-UR/UL 8°
Precision Double-Ended Inserts ef.
15.7 R
for Internal Undercutting W

M
R=W/2

Recommended
Dimensions Tough 1 Hard
Machining Data


IC8250
f groove


IC20
Designation W±0.02 R±0.05 M (mm/rev)
GIPI 3.00-1.5UR/L 3.00 1.50 2.40 • • 0.05-0.15
GIPI 4.00-2.0UR/L 4.00 2.00 3.20 • • 0.05-0.15
• The tool's pocket should be modified • For cutting speed recommendations and user guide, see pages 340-351
For tools, see pages: GHIUR/L (294)


±0.025
TIPI-MT 5
Precision Ground 60° Partial 8°
15.7 Ref
Profile Double-Ended Internal
Threading Inserts with a Chipformer W 60°
for 20 mm Min. Bore Dia.

Dimensions Tough 1 Hard
IC908
IC08


Designation W R±0.03 Pmin TPI max
TIPI 3.4MT-0.10 3.40 0.10 1.80 14 • •
TIPI 5.4MT-0.20 5.40 0.20 3.19 8 • •
• Toolholder seat needs to be modified according to insert profile to ensure clearance. • Pitch max 0.205xD, TPI min D/4.8 • D=Diameter of thread (pitch max<=W)
• TIPI inserts are 1.6 mm longer than GIPI in the same pocket.
For tools, see pages: CGIN 26 (295) • GAIR/L (294) • GHIR/L (W=1.9-6.4) (293) • GHIR/L-C (W=4-6.4) (293) • GHIR/L-SC (W=2-4.8) (293)


±0.025
TIPI-WT 5
55° Partial Profile Double-Ended 8° ef.
Internal Threading Inserts with a 15.7 R
Chipformer for 20 mm Minimum
W 55°
Bore Diameters R

Dimensions Tough 1 Hard
IC908
IC08


Designation W R±0.03 Pmin TPI max
TIPI 3.4WT-0.10 3.40 0.10 0.95 27 • •
TIPI 5.4WT-0.20 5.40 0.20 1.67 15 •
• Toolholder seat needs to be modified according to insert profile to ensure clearance • Pitch max 0.187xD, TPI min D/5.25 D=Diameter of thread (pitch max<=W)
• For detailed cutting data, see pages 340-351
For tools, see pages: GAIR/L (294) • GHIR/L (W=1.9-6.4) (293) • GHIR/L-SC (W=2-4.8) (293)

299
