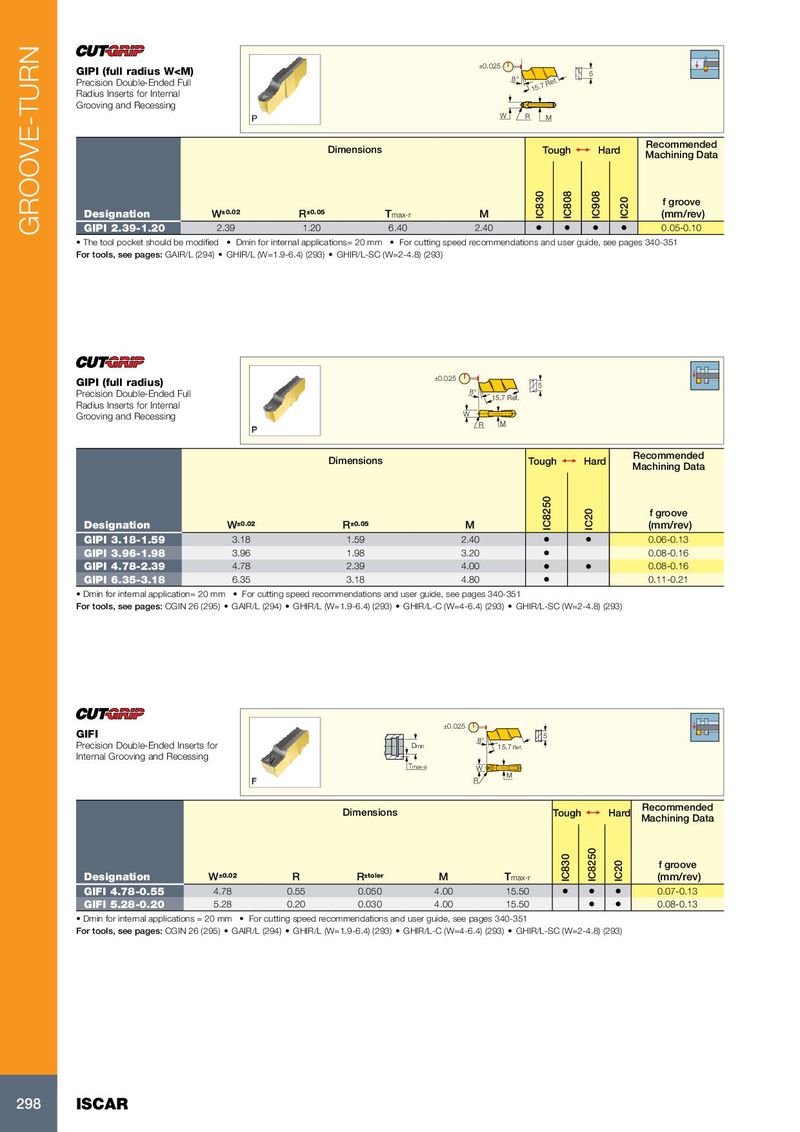

Каталог Iscar токарный инструмент 2017 - страница 302

GROOVE-TURN
±0.025
GIPI (full radius W<M) 5
8°
Precision Double-Ended Full Ref.
15.7
Radius Inserts for Internal
Grooving and Recessing
W R M

Recommended
Dimensions Tough 1 Hard
Machining Data


IC830
IC808
IC908
f groove


IC20
Designation W±0.02 R±0.05 Tmax-r M (mm/rev)
GIPI 2.39-1.20 2.39 1.20 6.40 2.40 • • • • 0.05-0.10
• The tool pocket should be modified • Dmin for internal applications= 20 mm • For cutting speed recommendations and user guide, see pages 340-351
For tools, see pages: GAIR/L (294) • GHIR/L (W=1.9-6.4) (293) • GHIR/L-SC (W=2-4.8) (293)


±0.025
GIPI (full radius) 5
Precision Double-Ended Full 8°
15.7 Ref.
Radius Inserts for Internal
Grooving and Recessing W
R M

Recommended
Dimensions Tough 1 Hard
Machining Data


IC8250
f groove


IC20
Designation W±0.02 R±0.05 M (mm/rev)
GIPI 3.18-1.59 3.18 1.59 2.40 • • 0.06-0.13
GIPI 3.96-1.98 3.96 1.98 3.20 • 0.08-0.16
GIPI 4.78-2.39 4.78 2.39 4.00 • • 0.08-0.16
GIPI 6.35-3.18 6.35 3.18 4.80 • 0.11-0.21
• Dmin for internal application= 20 mm • For cutting speed recommendations and user guide, see pages 340-351
For tools, see pages: CGIN 26 (295) • GAIR/L (294) • GHIR/L (W=1.9-6.4) (293) • GHIR/L-C (W=4-6.4) (293) • GHIR/L-SC (W=2-4.8) (293)


±0.025
GIFI 8°
5
Precision Double-Ended Inserts for Dmin 15.7 Ref.
Internal Grooving and Recessing
Tmax-a W
M
R

Recommended
Dimensions Tough 1 Hard
Machining Data
IC8250
IC830


f groove
IC20


Designation W±0.02 R R±toler M Tmax-r (mm/rev)
GIFI 4.78-0.55 4.78 0.55 0.050 4.00 15.50 • • • 0.07-0.13
GIFI 5.28-0.20 5.28 0.20 0.030 4.00 15.50 • • 0.08-0.13
• Dmin for internal applications = 20 mm • For cutting speed recommendations and user guide, see pages 340-351
For tools, see pages: CGIN 26 (295) • GAIR/L (294) • GHIR/L (W=1.9-6.4) (293) • GHIR/L-C (W=4-6.4) (293) • GHIR/L-SC (W=2-4.8) (293)


298 ISCAR
