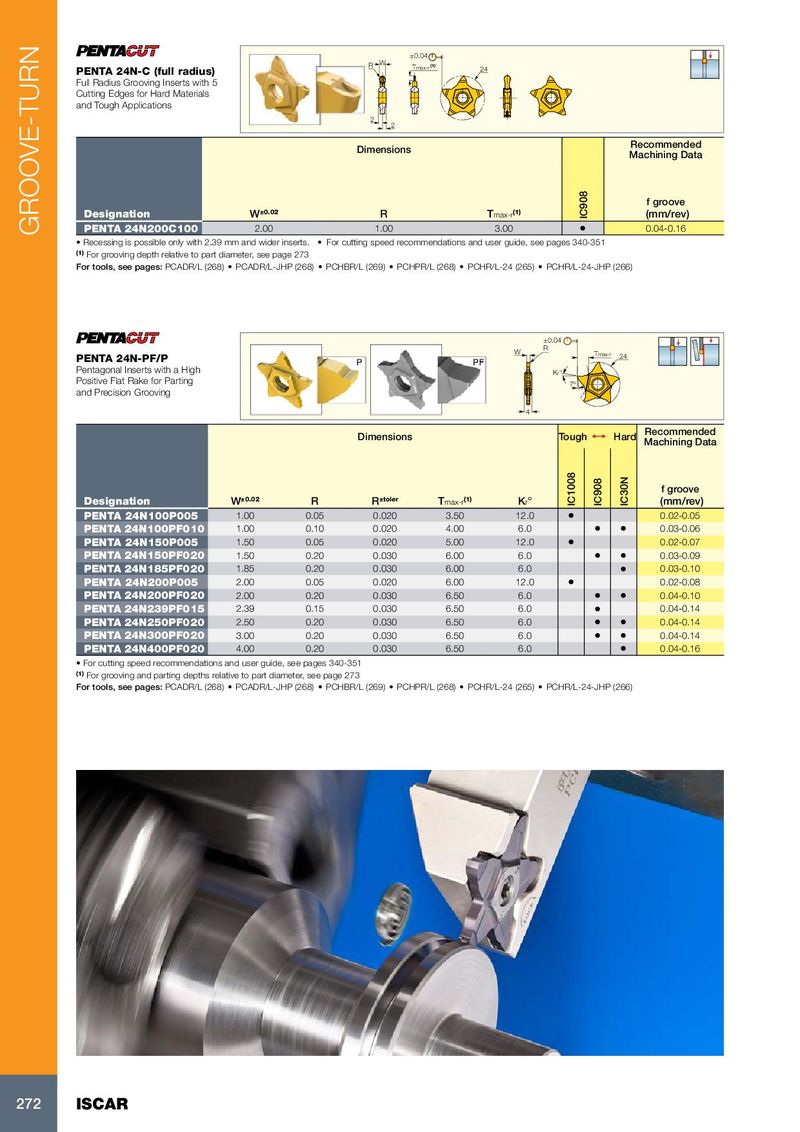

GROOVE-TURN
±0.04
R W Tmax-r (1) 24
PENTA 24N-C (full radius)
Full Radius Grooving Inserts with 5
Cutting Edges for Hard Materials
and Tough Applications
2
2
Recommended
Dimensions
Machining Data


IC908
f groove
Designation W±0.02 R Tmax-r(1) (mm/rev)
PENTA 24N200C100 2.00 1.00 3.00 • 0.04-0.16
• Recessing is possible only with 2.39 mm and wider inserts. • For cutting speed recommendations and user guide, see pages 340-351
(1) For grooving depth relative to part diameter, see page 273
For tools, see pages: PCADR/L (268) • PCADR/L-JHP (268) • PCHBR/L (269) • PCHPR/L (268) • PCHR/L-24 (265) • PCHR/L-24-JHP (266)


±0.04
R
W Tmax-r
PENTA 24N-PF/P 24
Pentagonal Inserts with a High Kr°
Positive Flat Rake for Parting 7º
and Precision Grooving
4
Recommended
Dimensions Tough 1 Hard
Machining Data


IC1008


IC30N
IC908
f groove
Designation W±0.02 R R±toler Tmax-r(1) Kr° (mm/rev)
PENTA 24N100P005 1.00 0.05 0.020 3.50 12.0 • 0.02-0.05
PENTA 24N100PF010 1.00 0.10 0.020 4.00 6.0 • • 0.03-0.06
PENTA 24N150P005 1.50 0.05 0.020 5.00 12.0 • 0.02-0.07
PENTA 24N150PF020 1.50 0.20 0.030 6.00 6.0 • • 0.03-0.09
PENTA 24N185PF020 1.85 0.20 0.030 6.00 6.0 • 0.03-0.10
PENTA 24N200P005 2.00 0.05 0.020 6.00 12.0 • 0.02-0.08
PENTA 24N200PF020 2.00 0.20 0.030 6.50 6.0 • • 0.04-0.10
PENTA 24N239PF015 2.39 0.15 0.030 6.50 6.0 • 0.04-0.14
PENTA 24N250PF020 2.50 0.20 0.030 6.50 6.0 • • 0.04-0.14
PENTA 24N300PF020 3.00 0.20 0.030 6.50 6.0 • • 0.04-0.14
PENTA 24N400PF020 4.00 0.20 0.030 6.50 6.0 • 0.04-0.16
• For cutting speed recommendations and user guide, see pages 340-351
(1) For grooving and parting depths relative to part diameter, see page 273
For tools, see pages: PCADR/L (268) • PCADR/L-JHP (268) • PCHBR/L (269) • PCHPR/L (268) • PCHR/L-24 (265) • PCHR/L-24-JHP (266)


272 ISCAR
