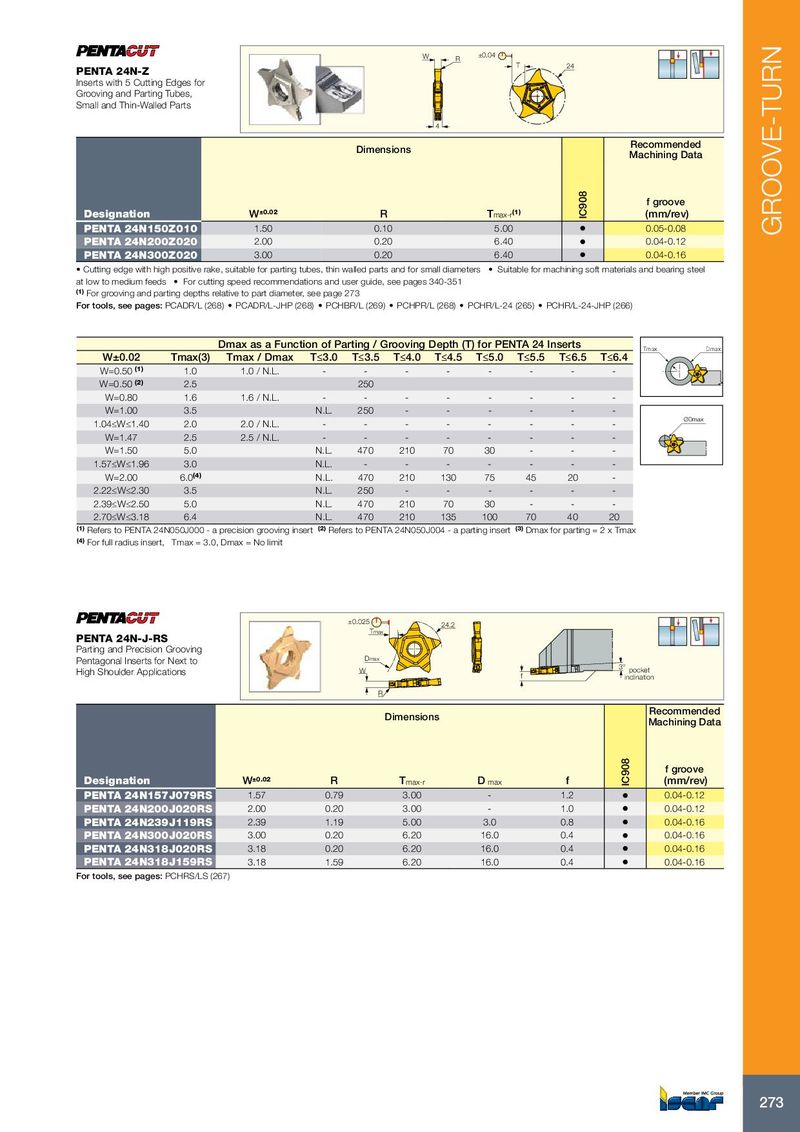

Каталог Iscar токарный инструмент 2017 - страница 277
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
| ENTA 24N-Z serts with 5 Cutting Edges for rooving and Parting Tubes, mall and Thin-Walled Parts | W R 4 | T ±0.04 | 24 | |||
| Dimensions | Recommended Machining Data | |||||
| Designation | W±0.02 | R | Tmax-r(1) | IC908 | f groove (mm/rev) | |
| PENTA 24N150Z010 | 1.50 | 0.10 | 5.00 | • | 0.05-0.08 | |
| PENTA 24N200Z020 | 2.00 | 0.20 | 6.40 | • | 0.04-0.12 | |
| PENTA 24N300Z020 | 3.00 | 0.20 | 6.40 | • | 0.04-0.16 |
- Cutting edge with high positive rake, suitable for parting tubes, thin walled parts and for small diameters
- Suitable for machining soft materials and bearing steel
at low to medium feeds For cutting speed recommendations and user guide, see pages 340-351 (1) For grooving and parting depths relative to part diameter, see page 273 For tools, see pages: PCADR/L (268) PCADR/L-JHP (268) PCHBR/L (269) PCHPR/L (268) PCHR/L-24 (265) PCHR/L-24-JHP (266)
| Dmaxas aFunct | ionof P | arting / G | rooving | Depth(T | )for PE | NTA 24 I | nserts | ÿ Dmax Tmax | |||
| W±0.02 | Tmax(3) | Tmax/Dmax | T≤3.0 | T≤3.5 | T≤4.0 | T≤4.5 | T≤5.0 | T≤5.5 | T≤6.5 | T≤6.4 | |
| W=0.50(1) | 1.0 | 1.0 / N.L. | - | - | - | - | - | - | - | - | |
| W=0.50(2) | 2.5 | 250 | |||||||||
| W=0.80 | 1.6 | 1.6 / N.L. | - | - | - | - | - | - | - | - | |
| W=1.00 | 3.5 | N.L. | 250 | - | - | - | - | - | - | ||
| 1.04≤W≤1.40 | 2.0 | 2.0 / N.L. | - | - | - | - | - | - | - | - | ØDmax |
| W=1.47 | 2.5 | 2.5 / N.L. | - | - | - | - | - | - | - | - | |
| W=1.50 | 5.0 | N.L. | 470 | 210 | 70 | 30 | - | - | - | ||
| 1.57≤W≤1.96 | 3.0 | N.L. | - | - | - | - | - | - | - | ||
| W=2.00 | 6.0(4) | N.L. | 470 | 210 | 130 | 75 | 45 | 20 | - | ||
| 2.22≤W≤2.30 | 3.5 | N.L. | 250 | - | - | - | - | - | - | ||
| 2.39≤W≤2.50 | 5.0 | N.L. | 470 | 210 | 70 | 30 | - | - | - | ||
| 2.70≤W≤3.18 | 6.4 | N.L. | 470 | 210 | 135 | 100 | 70 | 40 | 20 |
(1) Refers to PENTA 24N050J000 - a precision grooving insert (2) Refers to PENTA 24N050J004 - a parting insert (3) Dmax for parting = 2 x Tmax (4) For full radius insert, Tmax = 3.0, Dmax = No limit
| ENTA 24N-J-RS arting and Precision Grooving entagonal Inserts for Next to gh Shoulder Applications | 24.2 Tmax Dmax W R ±0.025 | f | poc inclin 3° | ket ation | ||
| Dimensions | Recommended Machining Data | |||||
| Designation | W±0.02 | R Tmax-r | Dmax | f | IC908 | f groove (mm/rev) |
| PENTA 24N157J079RS | 1.57 | 0.79 3.00 | - | 1.2 | • | 0.04-0.12 |
| PENTA 24N200J020RS | 2.00 | 0.20 3.00 | - | 1.0 | • | 0.04-0.12 |
| PENTA 24N239J119RS | 2.39 | 1.19 5.00 | 3.0 | 0.8 | • | 0.04-0.16 |
| PENTA 24N300J020RS | 3.00 | 0.20 6.20 | 16.0 | 0.4 | • | 0.04-0.16 |
| PENTA 24N318J020RS | 3.18 | 0.20 6.20 | 16.0 | 0.4 | • | 0.04-0.16 |
| PENTA 24N318J159RS | 3.18 | 1.59 6.20 | 16.0 | 0.4 | • | 0.04-0.16 |
For tools, see pages: PCHRS/LS (267)
