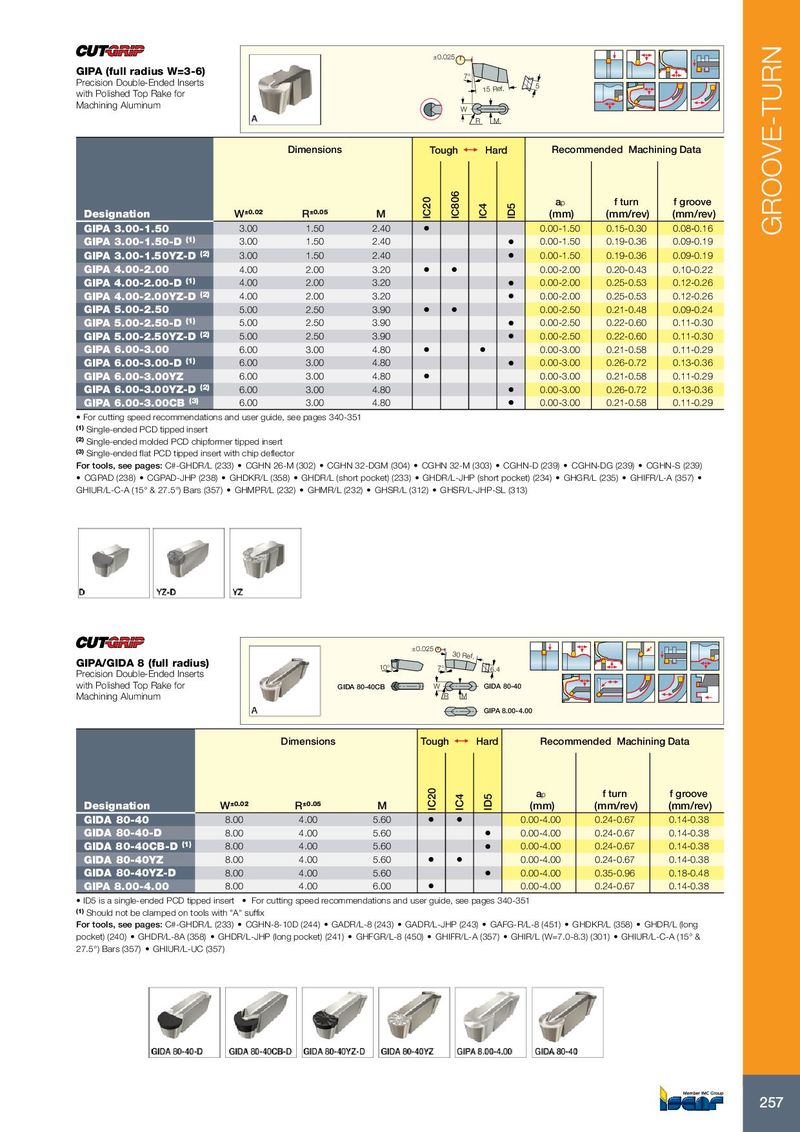

±0.025 GIPA (full radius W=3-6) 7° Precision Double-Ended Inserts 15 Ref. 5 with Polished Top Rake for Machining Aluminum W R M Dimensions Tough 1  Hard Recommended Machining Data a p f turn f groove Designation W ±0.02 R ±0.05 M IC20 IC806 IC4 ID5 (mm) (mm/rev) (mm/rev) GIPA 3.00-1.50 3.00 1.50 2.40 • 0.00-1.50 0.15-0.30 0.08-0.16 GROOVE-TURN GIPA 3.00-1.50-D (1) 3.00 1.50 2.40 • 0.00-1.50 0.19-0.36 0.09-0.19 GIPA 3.00-1.50YZ-D (2) 3.00 1.50 2.40 • 0.00-1.50 0.19-0.36 0.09-0.19 GIPA 4.00-2.00 4.00 2.00 3.20 • • 0.00-2.00 0.20-0.43 0.10-0.22 GIPA 4.00-2.00-D (1) 4.00 2.00 3.20 • 0.00-2.00 0.25-0.53 0.12-0.26 GIPA 4.00-2.00YZ-D (2) 4.00 2.00 3.20 • 0.00-2.00 0.25-0.53 0.12-0.26 GIPA 5.00-2.50 5.00 2.50 3.90 • • 0.00-2.50 0.21-0.48 0.09-0.24 GIPA 5.00-2.50-D (1) 5.00 2.50 3.90 • 0.00-2.50 0.22-0.60 0.11-0.30 GIPA 5.00-2.50YZ-D (2) 5.00 2.50 3.90 • 0.00-2.50 0.22-0.60 0.11-0.30 GIPA 6.00-3.00 6.00 3.00 4.80 • • 0.00-3.00 0.21-0.58 0.11-0.29 GIPA 6.00-3.00-D (1) 6.00 3.00 4.80 • 0.00-3.00 0.26-0.72 0.13-0.36 GIPA 6.00-3.00YZ 6.00 3.00 4.80 • 0.00-3.00 0.21-0.58 0.11-0.29 GIPA 6.00-3.00YZ-D (2) 6.00 3.00 4.80 • 0.00-3.00 0.26-0.72 0.13-0.36 GIPA 6.00-3.00CB (3) 6.00 3.00 4.80 • 0.00-3.00 0.21-0.58 0.11-0.29 • For cutting speed recommendations and user guide, see pages 340-351 (1) Single-ended PCD tipped insert (2) Single-ended molded PCD chipformer tipped insert (3) Single-ended flat PCD tipped insert with chip deflector For tools, see pages: C#-GHDR/L (233) • CGHN 26-M (302) • CGHN 32-DGM (304) • CGHN 32-M (303) • CGHN-D (239) • CGHN-DG (239) • CGHN-S (239) • CGPAD (238) • CGPAD-JHP (238) • GHDKR/L (358) • GHDR/L (short pocket) (233) • GHDR/L-JHP (short pocket) (234) • GHGR/L (235) • GHIFR/L-A (357) • GHIUR/L-C-A (15° & 27.5°) Bars (357) • GHMPR/L (232) • GHMR/L (232) • GHSR/L (312) • GHSR/L-JHP-SL (313) ±0.025 30 Ref. GIPA/GIDA 8 (full radius) 10° 7° 6.4 Precision Double-Ended Inserts with Polished Top Rake for GIDA 80-40CB W GIDA 80-40 Machining Aluminum R M GIPA 8.00-4.00 Dimensions Tough 1  Hard Recommended Machining Data a p f turn f groove Designation W ±0.02 R ±0.05 M IC20 IC4 ID5 (mm) (mm/rev) (mm/rev) GIDA 80-40 8.00 4.00 5.60 • • 0.00-4.00 0.24-0.67 0.14-0.38 GIDA 80-40-D 8.00 4.00 5.60 • 0.00-4.00 0.24-0.67 0.14-0.38 GIDA 80-40CB-D (1) 8.00 4.00 5.60 • 0.00-4.00 0.24-0.67 0.14-0.38 GIDA 80-40YZ 8.00 4.00 5.60 • • 0.00-4.00 0.24-0.67 0.14-0.38 GIDA 80-40YZ-D 8.00 4.00 5.60 • 0.00-4.00 0.35-0.96 0.18-0.48 GIPA 8.00-4.00 8.00 4.00 6.00 • 0.00-4.00 0.24-0.67 0.14-0.38 • ID5 is a single-ended PCD tipped insert • For cutting speed recommendations and user guide, see pages 340-351 (1) Should not be clamped on tools with "A" suffix For tools, see pages: C#-GHDR/L (233) • CGHN-8-10D (244) • GADR/L-8 (243) • GADR/L-JHP (243) • GAFG-R/L-8 (451) • GHDKR/L (358) • GHDR/L (long pocket) (240) • GHDR/L-8A (358) • GHDR/L-JHP (long pocket) (241) • GHFGR/L-8 (450) • GHIFR/L-A (357) • GHIR/L (W=7.0-8.3) (301) • GHIUR/L-C-A (15° & 27.5°) Bars (357) • GHIUR/L-UC (357) 257
