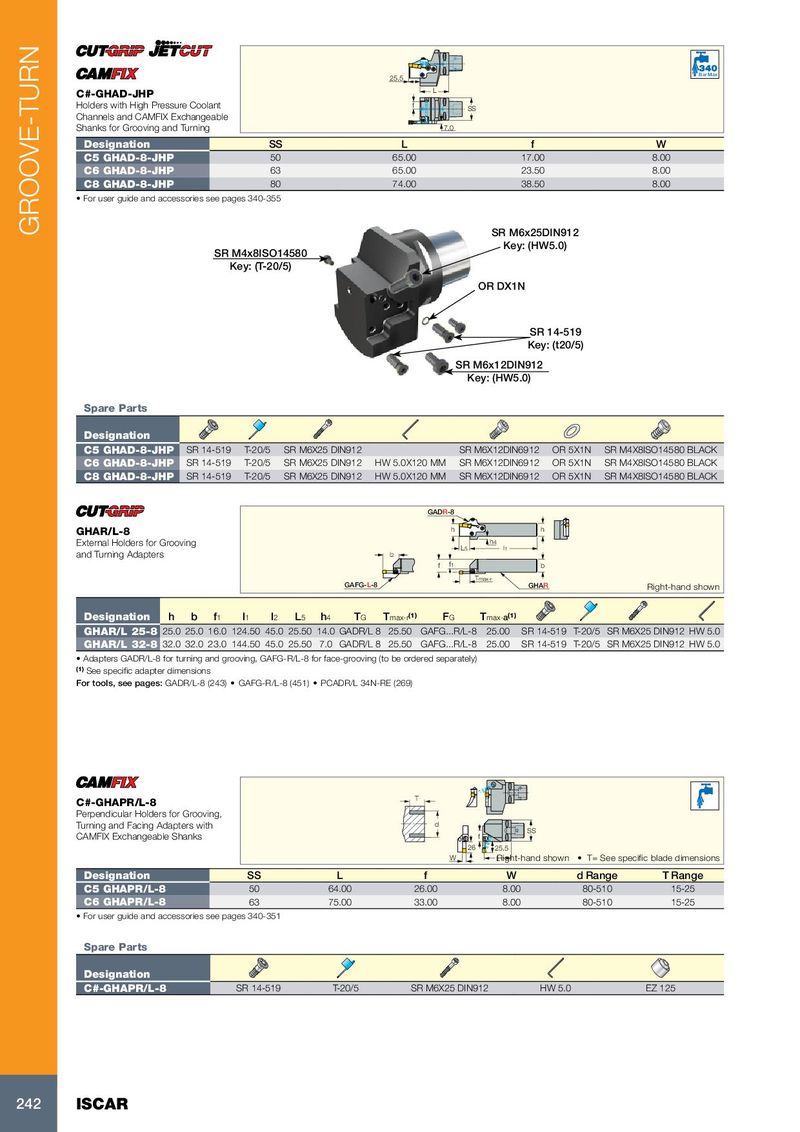

Bar Max 25.5 L C#-GHAD-JHP Holders with High Pressure Coolant f SS Channels and CAMFIX Exchangeable Shanks for Grooving and Turning 7.0 Designation SS L f W C5 GHAD-8-JHP 50 65.00 17.00 8.00 C6 GHAD-8-JHP 63 65.00 23.50 8.00 C8 GHAD-8-JHP 80 74.00 38.50 8.00 • For user guide and accessories see pages 340-355 GROOVE-TURN SR M6x25DIN912 Key: (HW5.0) SR M4x8ISO14580 Key: (T-20/5) OR DX1N SR 14-519 Key: (t20/5) SR M6x12DIN912 Key: (HW5.0) Spare Parts Designation C5 GHAD-8-JHP SR 14-519 T-20/5 SR M6X25 DIN912 SR M6X12DIN6912 OR 5X1N SR M4X8ISO14580 BLACK C6 GHAD-8-JHP SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0X120 MM SR M6X12DIN6912 OR 5X1N SR M4X8ISO14580 BLACK C8 GHAD-8-JHP SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0X120 MM SR M6X12DIN6912 OR 5X1N SR M4X8ISO14580 BLACK GADR-8 GHAR/L-8 h h External Holders for Grooving h4 L5 l1 and Turning Adapters l2 f f1 b Tmax-r GAFG-L-8 GHAR Right-hand shown Designation h b f 1 l 1 l 2 L 5 h 4 T G T max-r (1) F G T max- a (1) GHAR/L 25-8 25.0 25.0 16.0 124.50 45.0 25.50 14.0 GADR/L 8 25.50 GAFG...R/L-8 25.00 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 GHAR/L 32-8 32.0 32.0 23.0 144.50 45.0 25.50 7.0 GADR/L 8 25.50 GAFG...R/L-8 25.00 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 • Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving (to be ordered separately) (1) See specific adapter dimensions For tools, see pages: GADR/L-8 (243) • GAFG-R/L-8 (451) • PCADR/L 34N-RE (269) T C#-GHAPR/L-8 Perpendicular Holders for Grooving, Turning and Facing Adapters with d SS CAMFIX Exchangeable Shanks f 26 25.5 W L Right-hand shown • T= See specific blade dimensions Designation SS L f W d Range T Range C5 GHAPR/L-8 50 64.00 26.00 8.00 80-510 15-25 C6 GHAPR/L-8 63 75.00 33.00 8.00 80-510 15-25 • For user guide and accessories see pages 340-351 Spare Parts Designation C#-GHAPR/L-8 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 EZ 125 242 ISCAR
