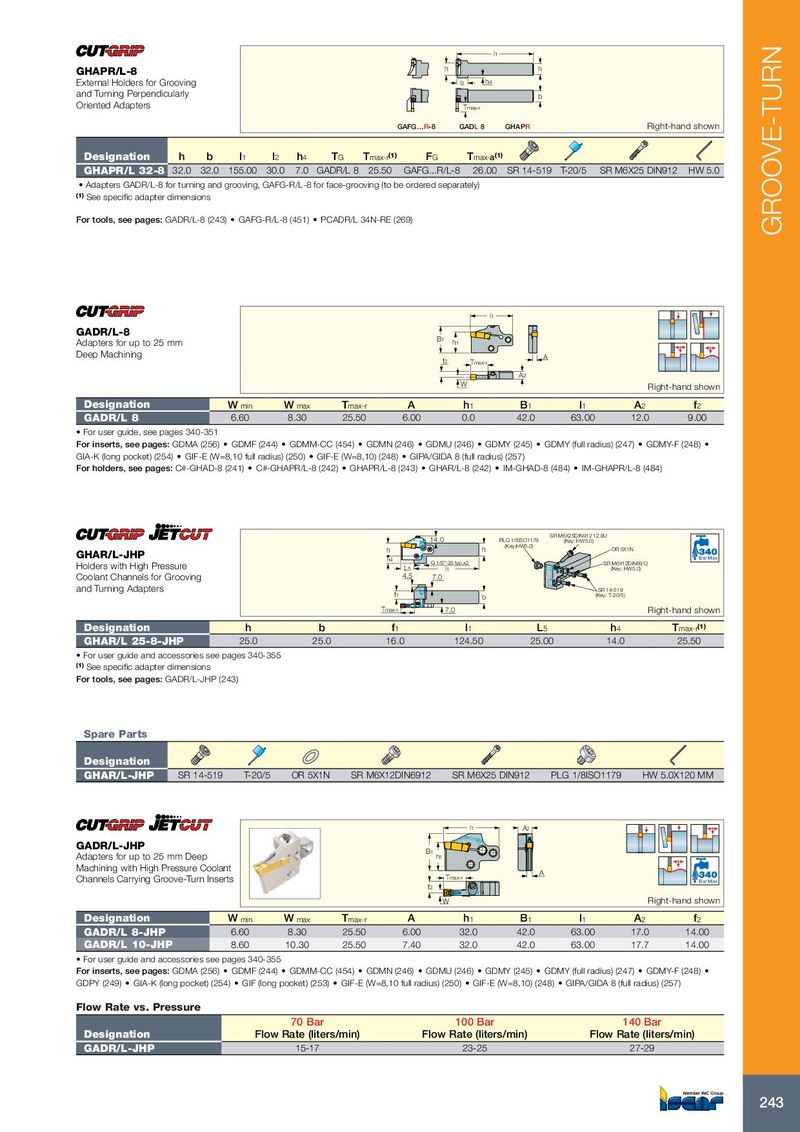

GHAPR/L-8 h h
| External Holders for Grooving | l | h4 | |
| and Turning Perpendicularly | b | ||
| Oriented Adapters | T | ||
| max-r |
GAFG…R-8 GADL 8 GHAPR Right-hand shown
| Designation | h | b | l1 | l2 | h4 | TG | Tmax-r(1) | F G | Tmax-a(1) | ||
| GHAPR/L 32-8 | 32.0 32.0 155.00 30.0 7.0 GADR/L 8 25.50 | GAFG...R/L-8 | 26.00 SR 14-519 T-20/5 | SR M6X25 DIN912 HW 5.0 |
- Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving (to be ordered separately)
(1) See specific adapter dimensions For tools, see pages: GADR/L-8 (243) GAFG-R/L-8 (451) PCADR/L 34N-RE (269)
| l1 | |||||||
| GADR/L-8 Adapters for up to 25 mm Deep Machining | B1 h1 Tmax-r f2 W | A A2 | Right-han | d shown | |||
| Designation | Wmin | Wmax | Tmax-r | A h1 | B1 | l1 A2 | f2 |
| GADR/L 8 | 6.60 | 8.30 | 25.50 | 6.00 0.0 | 42.0 | 63.00 12.0 | 9.00 |
- For user guide, see pages 340-351
For inserts, see pages: GDMA (256) GDMF (244) GDMM-CC (454) GDMN (246) GDMU (246) GDMY (245) GDMY (full radius) (247) GDMY-F (248) GIA-K (long pocket) (254) GIF-E (W=8,10 full radius) (250) GIF-E (W=8,10) (248) GIPA/GIDA 8 (full radius) (257) For holders, see pages: C#-GHAD-8 (241) C#-GHAPR/L-8 (242) GHAPR/L-8 (243) GHAR/L-8 (242) IM-GHAD-8 (484) IM-GHAPR/L-8 (484)
14.0 SR M6X25DIN912 12.9U PLG 1/8ISO1179 (Key: HW5.0)
| h | h | (Key:HW5.0) | |||
| GHAR/L-JHP | OR 5X1N | ||||
| h4 | Bar Max |
Holders with High Pressure G 1/8"-28 typ.x2 SR M6X12DIN6912
L5 l 1 (Key: HW5.0)
| Coolant Channels for Grooving | 4.5 | 7.0 | |
| and Turning Adapters | |||
| f | SR 14-519 |
1 b (Key: T-20/5)
Tmax-r 7.0 Right-hand shown
| Designation | h | b | f1 | l1 | L5 | h4 | Tmax-r (1) |
| GHAR/L 25-8-JHP | 25.0 | 25.0 | 16.0 | 124.50 | 25.00 | 14.0 | 25.50 |
- For user guide and accessories see pages 340-355
(1) See specific adapter dimensions For tools, see pages: GADR/L-JHP (243)
Spare Parts
Designation
GHAR/L-JHP SR 14-519 T-20/5 OR 5X1N SR M6X12DIN6912 SR M6X25 DIN912 PLG 1/8ISO1179 HW 5.0X120 MM
l 1 A2
GADR/L-JHP
Adapters for up to 25 mm Deep B1 h 1 Machining with High Pressure Coolant
| Channels Carrying Groove-Turn Inserts | T | A | |||
| max-r | |||||
| f | Bar Max | ||||
| 2 | |||||
| W | Right-hand shown |
| Designation | W min | W max | Tmax-r | A | h1 | B 1 | l1 | A2 | f2 |
| GADR/L 8-JHP | 6.60 | 8.30 | 25.50 | 6.00 | 32.0 | 42.0 | 63.00 | 17.0 | 14.00 |
| GADR/L 10-JHP | 8.60 | 10.30 | 25.50 | 7.40 | 32.0 | 42.0 | 63.00 | 17.7 | 14.00 |
- For user guide and accessories see pages 340-355
For inserts, see pages: GDMA (256) GDMF (244) GDMM-CC (454) GDMN (246) GDMU (246) GDMY (245) GDMY (full radius) (247) GDMY-F (248) GDPY (249) GIA-K (long pocket) (254) GIF (long pocket) (253) GIF-E (W=8,10 full radius) (250) GIF-E (W=8,10) (248) GIPA/GIDA 8 (full radius) (257)
Flow Rate vs. Pressure
| 70 Bar | 100 Bar | 140 Bar | |
| Designation | Flow Rate(liters/min) | Flow Rate(liters/min) | Flow Rate(liters/min) |
| GADR/L-JHP | 15-17 | 23-25 | 27-29 |
