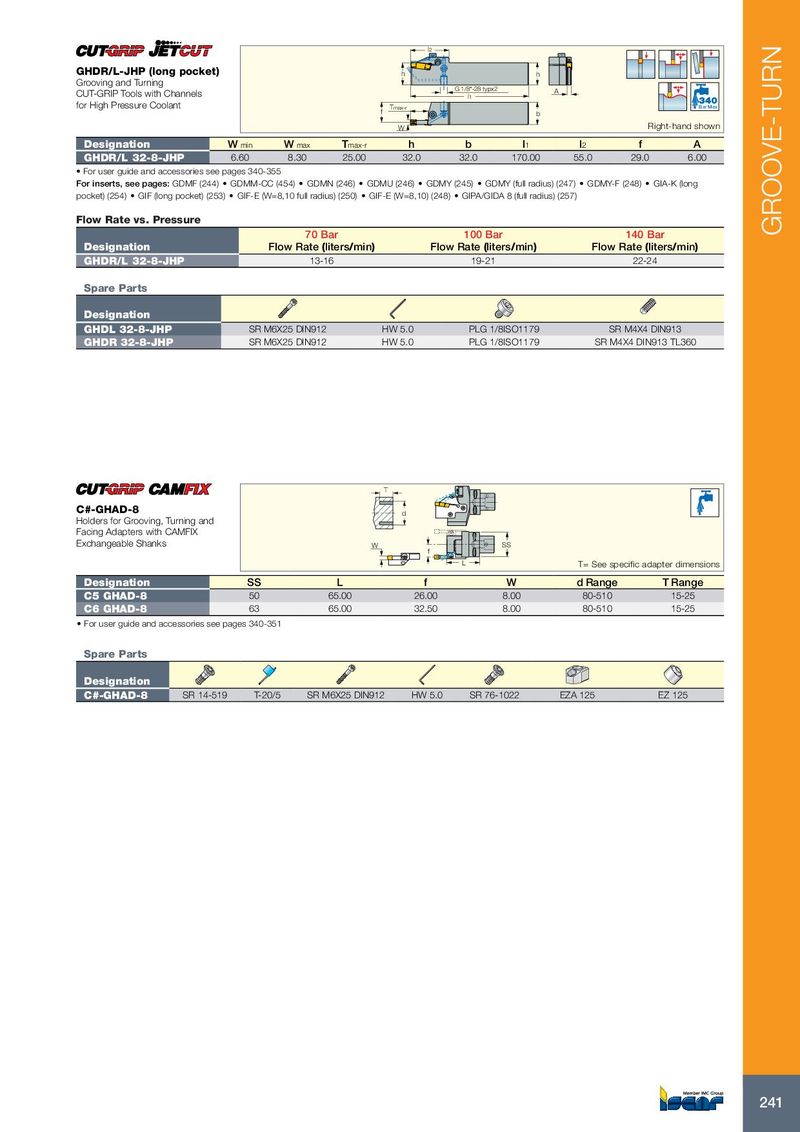

GHDR/L-JHP (long pocket)
| CUT-GRIP Tools with Channels | | G 1/8"-28 typx2 | | A |
| | | l1 | |
| for High Pressure Coolant | T | | | |
| f | max-r | | | Bar Max |
| | b | | |
| W | | Right-hand shown | |
| Designation | W min | W max | Tmax-r | h | b | l1 | l2 | f | A |
| GHDR/L 32-8-JHP | 6.60 | 8.30 | 25.00 | 32.0 | 32.0 | 170.00 | 55.0 | 29.0 | 6.00 |
- For user guide and accessories see pages 340-355
For inserts, see pages: GDMF (244) GDMM-CC (454) GDMN (246) GDMU (246) GDMY (245) GDMY (full radius) (247) GDMY-F (248) GIA-K (long pocket) (254) GIF (long pocket) (253) GIF-E (W=8,10 full radius) (250) GIF-E (W=8,10) (248) GIPA/GIDA 8 (full radius) (257)
Flow Rate vs. Pressure
| Designation | 70 Bar Flow Rate(liters/ | min) F | 100 Bar low Rate(liters/min) | 140 Bar Flow Rate(liters/min) |
| GHDR/L 32-8-JHP | 13-16 | | 19-21 | 22-24 |
| Spare Parts | | | | |
| Designation | | | | |
| GHDL 32-8-JHP | SR M6X25 DIN912 | HW 5.0 | PLG 1/8ISO1179 | SR M4X4 DIN913 |
| GHDR 32-8-JHP | SR M6X25 DIN912 | HW 5.0 | PLG 1/8ISO1179 | SR M4X4 DIN913 TL360 |
T
C#-GHAD-8
d Holders for Grooving, Turning and Facing Adapters with CAMFIX
| Exchangeable Shanks | W | | | SS | |
| | f | | | |
| | | L | | T= See specific adapter dimensions |
| Designation | SS | L | f | W | d Range | T Range |
| C5 GHAD-8 | 50 | 65.00 | 26.00 | 8.00 | 80-510 | 15-25 |
| C6 GHAD-8 | 63 | 65.00 | 32.50 | 8.00 | 80-510 | 15-25 |
- For user guide and accessories see pages 340-351 Spare Parts Designation
C#-GHAD-8 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 SR 76-1022 EZA 125 EZ 125
