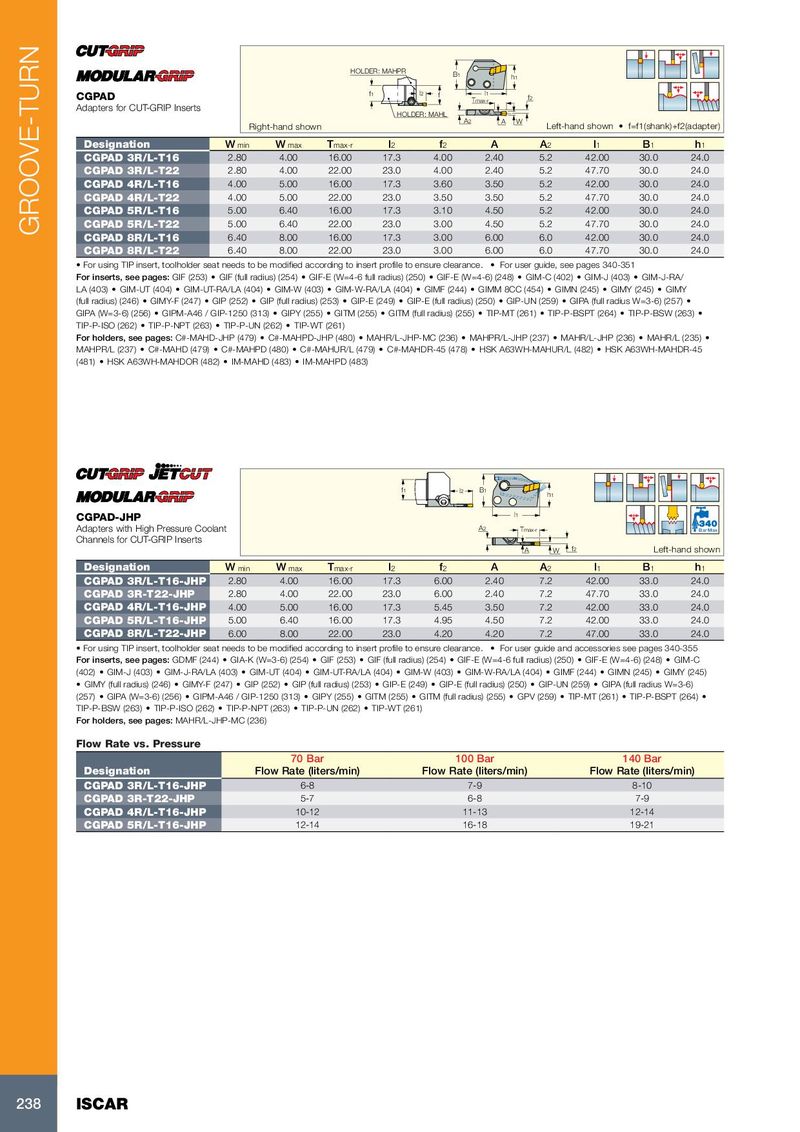

HOLDER: MAHPR B1 h1 CGPAD f1 l2 f l1 Tmax-r f2 Adapters for CUT-GRIP Inserts HOLDER: MAHL A2 A W Right-hand shown Left-hand shown • f=f1(shank)+f2(adapter) Designation W min W max T max-r l 2 f 2 A A 2 l 1 B 1 h 1 CGPAD 3R/L-T16 2.80 4.00 16.00 17.3 4.00 2.40 5.2 42.00 30.0 24.0 CGPAD 3R/L-T22 2.80 4.00 22.00 23.0 4.00 2.40 5.2 47.70 30.0 24.0 CGPAD 4R/L-T16 4.00 5.00 16.00 17.3 3.60 3.50 5.2 42.00 30.0 24.0 CGPAD 4R/L-T22 4.00 5.00 22.00 23.0 3.50 3.50 5.2 47.70 30.0 24.0 CGPAD 5R/L-T16 5.00 6.40 16.00 17.3 3.10 4.50 5.2 42.00 30.0 24.0 CGPAD 5R/L-T22 5.00 6.40 22.00 23.0 3.00 4.50 5.2 47.70 30.0 24.0 GROOVE-TURN CGPAD 8R/L-T16 6.40 8.00 16.00 17.3 3.00 6.00 6.0 42.00 30.0 24.0 CGPAD 8R/L-T22 6.40 8.00 22.00 23.0 3.00 6.00 6.0 47.70 30.0 24.0 • For using TIP insert, toolholder seat needs to be modified according to insert profile to ensure clearance. • For user guide, see pages 340-351 For inserts, see pages: GIF (253) • GIF (full radius) (254) • GIF-E (W=4-6 full radius) (250) • GIF-E (W=4-6) (248) • GIM-C (402) • GIM-J (403) • GIM-J-RA/ LA (403) • GIM-UT (404) • GIM-UT-RA/LA (404) • GIM-W (403) • GIM-W-RA/LA (404) • GIMF (244) • GIMM 8CC (454) • GIMN (245) • GIMY (245) • GIMY (full radius) (246) • GIMY-F (247) • GIP (252) • GIP (full radius) (253) • GIP-E (249) • GIP-E (full radius) (250) • GIP-UN (259) • GIPA (full radius W=3-6) (257) • GIPA (W=3-6) (256) • GIPM-A46 / GIP-1250 (313) • GIPY (255) • GITM (255) • GITM (full radius) (255) • TIP-MT (261) • TIP-P-BSPT (264) • TIP-P-BSW (263) • TIP-P-ISO (262) • TIP-P-NPT (263) • TIP-P-UN (262) • TIP-WT (261) For holders, see pages: C#-MAHD-JHP (479) • C#-MAHPD-JHP (480) • MAHR/L-JHP-MC (236) • MAHPR/L-JHP (237) • MAHR/L-JHP (236) • MAHR/L (235) • MAHPR/L (237) • C#-MAHD (479) • C#-MAHPD (480) • C#-MAHUR/L (479) • C#-MAHDR-45 (478) • HSK A63WH-MAHUR/L (482) • HSK A63WH-MAHDR-45 (481) • HSK A63WH-MAHDOR (482) • IM-MAHD (483) • IM-MAHPD (483) f1 l2 B1 h1 CGPAD-JHP l1 Adapters with High Pressure Coolant A2 Tmax-r Bar Max Channels for CUT-GRIP Inserts A W f2 Left-hand shown Designation W min W max T max-r l 2 f 2 A A 2 l 1 B 1 h 1 CGPAD 3R/L-T16-JHP 2.80 4.00 16.00 17.3 6.00 2.40 7.2 42.00 33.0 24.0 CGPAD 3R-T22-JHP 2.80 4.00 22.00 23.0 6.00 2.40 7.2 47.70 33.0 24.0 CGPAD 4R/L-T16-JHP 4.00 5.00 16.00 17.3 5.45 3.50 7.2 42.00 33.0 24.0 CGPAD 5R/L-T16-JHP 5.00 6.40 16.00 17.3 4.95 4.50 7.2 42.00 33.0 24.0 CGPAD 8R/L-T22-JHP 6.00 8.00 22.00 23.0 4.20 4.20 7.2 47.00 33.0 24.0 • For using TIP insert, toolholder seat needs to be modified according to insert profile to ensure clearance. • For user guide and accessories see pages 340-355 For inserts, see pages: GDMF (244) • GIA-K (W=3-6) (254) • GIF (253) • GIF (full radius) (254) • GIF-E (W=4-6 full radius) (250) • GIF-E (W=4-6) (248) • GIM-C (402) • GIM-J (403) • GIM-J-RA/LA (403) • GIM-UT (404) • GIM-UT-RA/LA (404) • GIM-W (403) • GIM-W-RA/LA (404) • GIMF (244) • GIMN (245) • GIMY (245) • GIMY (full radius) (246) • GIMY-F (247) • GIP (252) • GIP (full radius) (253) • GIP-E (249) • GIP-E (full radius) (250) • GIP-UN (259) • GIPA (full radius W=3-6) (257) • GIPA (W=3-6) (256) • GIPM-A46 / GIP-1250 (313) • GIPY (255) • GITM (255) • GITM (full radius) (255) • GPV (259) • TIP-MT (261) • TIP-P-BSPT (264) • TIP-P-BSW (263) • TIP-P-ISO (262) • TIP-P-NPT (263) • TIP-P-UN (262) • TIP-WT (261) For holders, see pages: MAHR/L-JHP-MC (236) Flow Rate vs. Pressure 70 Bar 100 Bar 140 Bar Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min) CGPAD 3R/L-T16-JHP 6-8 7-9 8-10 CGPAD 3R-T22-JHP 5-7 6-8 7-9 CGPAD 4R/L-T16-JHP 10-12 11-13 12-14 CGPAD 5R/L-T16-JHP 12-14 16-18 19-21 238 ISCAR
