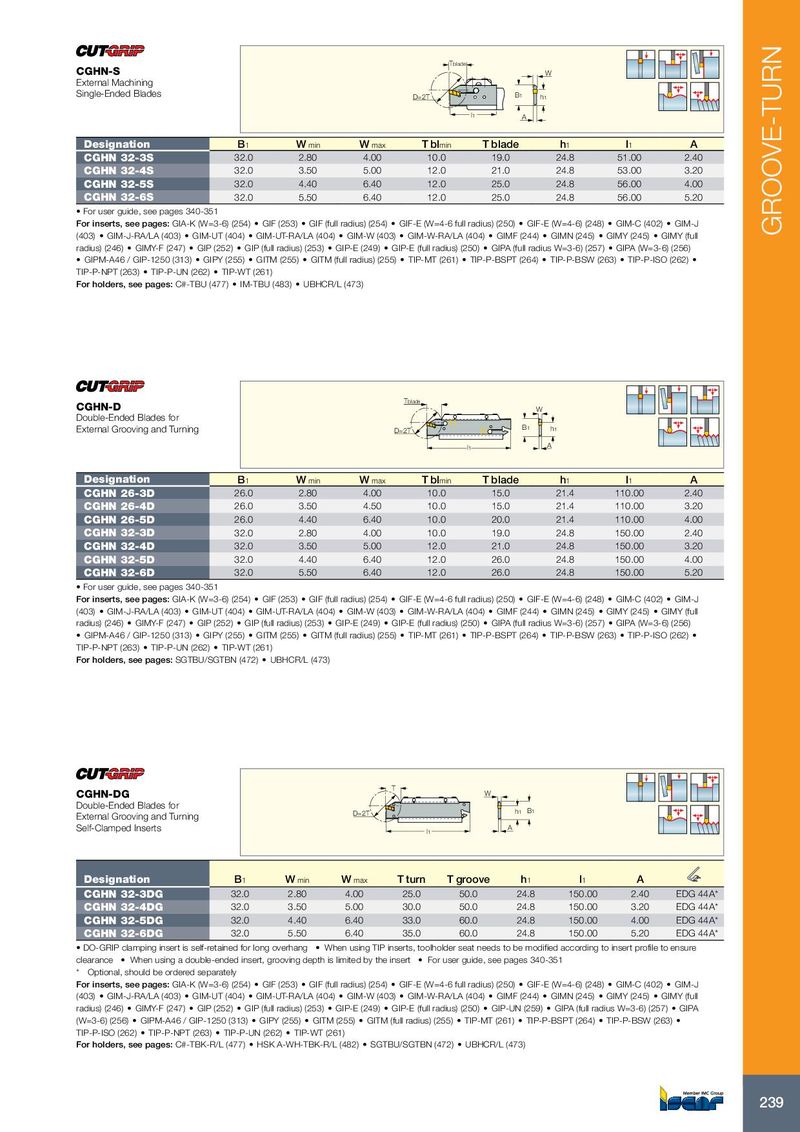

| CGHN-S External Machining Single-Ended Blades | Tblade D=2T | l1 | A B1 | h1 W | |||||
| Designation | B1 | Wmin | Wmax | T blmin | T blad | e | h1 | l1 | A |
| CGHN 32-3S | 32.0 | 2.80 | 4.00 | 10.0 | 19.0 | 24.8 | 51.00 | 2.40 | |
| CGHN 32-4S | 32.0 | 3.50 | 5.00 | 12.0 | 21.0 | 24.8 | 53.00 | 3.20 | |
| CGHN 32-5S | 32.0 | 4.40 | 6.40 | 12.0 | 25.0 | 24.8 | 56.00 | 4.00 | |
| CGHN 32-6S | 32.0 | 5.50 | 6.40 | 12.0 | 25.0 | 24.8 | 56.00 | 5.20 |
- For user guide, see pages 340-351
For inserts, see pages: GIA-K (W=3-6) (254) GIF (253) GIF (full radius) (254) GIF-E (W=4-6 full radius) (250) GIF-E (W=4-6) (248) GIM-C (402) GIM-J (403) GIM-J-RA/LA (403) GIM-UT (404) GIM-UT-RA/LA (404) GIM-W (403) GIM-W-RA/LA (404) GIMF (244) GIMN (245) GIMY (245) GIMY (full radius) (246) GIMY-F (247) GIP (252) GIP (full radius) (253) GIP-E (249) GIP-E (full radius) (250) GIPA (full radius W=3-6) (257) GIPA (W=3-6) (256)
- GIPM-A46 / GIP-1250 (313)
- GIPY (255)
- GITM (255)
- GITM (full radius) (255)
- TIP-MT (261)
- TIP-P-BSPT (264)
- TIP-P-BSW (263)
- TIP-P-ISO (262)
TIP-P-NPT (263) TIP-P-UN (262) TIP-WT (261) For holders, see pages: C#-TBU (477) IM-TBU (483) UBHCR/L (473)
| CGHN-D Double-Ended Blades for External Grooving and Turning | D= | 2T Tblade | l1 | A B1 h1 W | ||||
| Designation | B1 | Wmin | Wmax | T blmin | T blade | h1 | l1 | A |
| CGHN 26-3D | 26.0 | 2.80 | 4.00 | 10.0 | 15.0 | 21.4 | 110.00 | 2.40 |
| CGHN 26-4D | 26.0 | 3.50 | 4.50 | 10.0 | 15.0 | 21.4 | 110.00 | 3.20 |
| CGHN 26-5D | 26.0 | 4.40 | 6.40 | 10.0 | 20.0 | 21.4 | 110.00 | 4.00 |
| CGHN 32-3D | 32.0 | 2.80 | 4.00 | 10.0 | 19.0 | 24.8 | 150.00 | 2.40 |
| CGHN 32-4D | 32.0 | 3.50 | 5.00 | 12.0 | 21.0 | 24.8 | 150.00 | 3.20 |
| CGHN 32-5D | 32.0 | 4.40 | 6.40 | 12.0 | 26.0 | 24.8 | 150.00 | 4.00 |
| CGHN 32-6D | 32.0 | 5.50 | 6.40 | 12.0 | 26.0 | 24.8 | 150.00 | 5.20 |
- For user guide, see pages 340-351
For inserts, see pages: GIA-K (W=3-6) (254) GIF (253) GIF (full radius) (254) GIF-E (W=4-6 full radius) (250) GIF-E (W=4-6) (248) GIM-C (402) GIM-J (403) GIM-J-RA/LA (403) GIM-UT (404) GIM-UT-RA/LA (404) GIM-W (403) GIM-W-RA/LA (404) GIMF (244) GIMN (245) GIMY (245) GIMY (full radius) (246) GIMY-F (247) GIP (252) GIP (full radius) (253) GIP-E (249) GIP-E (full radius) (250) GIPA (full radius W=3-6) (257) GIPA (W=3-6) (256)
- GIPM-A46 / GIP-1250 (313)
- GIPY (255)
- GITM (255)
- GITM (full radius) (255)
- TIP-MT (261)
- TIP-P-BSPT (264)
- TIP-P-BSW (263)
- TIP-P-ISO (262)
TIP-P-NPT (263) TIP-P-UN (262) TIP-WT (261) For holders, see pages: SGTBU/SGTBN (472) UBHCR/L (473)
CGHN-DG T W Double-Ended Blades for
D=2T h1 B 1
External Grooving and Turning Self-Clamped Inserts A l 1
| Designation | B1 | Wmin | Wmax | T turn | T groove | h1 | l1 | A | |
| CGHN 32-3DG | 32.0 | 2.80 | 4.00 | 25.0 | 50.0 | 24.8 | 150.00 | 2.40 | EDG 44A |
| CGHN 32-4DG | 32.0 | 3.50 | 5.00 | 30.0 | 50.0 | 24.8 | 150.00 | 3.20 | EDG 44A |
| CGHN 32-5DG | 32.0 | 4.40 | 6.40 | 33.0 | 60.0 | 24.8 | 150.00 | 4.00 | EDG 44A |
| CGHN 32-6DG | 32.0 | 5.50 | 6.40 | 35.0 | 60.0 | 24.8 | 150.00 | 5.20 | EDG 44A |
- DO-GRIP clamping insert is self-retained for long overhang
- When using TIP inserts, toolholder seat needs to be modified according to insert profile to ensure
clearance When using a double-ended insert, grooving depth is limited by the insert For user guide, see pages 340-351 * Optional, should be ordered separately For inserts, see pages: GIA-K (W=3-6) (254) GIF (253) GIF (full radius) (254) GIF-E (W=4-6 full radius) (250) GIF-E (W=4-6) (248) GIM-C (402) GIM-J (403) GIM-J-RA/LA (403) GIM-UT (404) GIM-UT-RA/LA (404) GIM-W (403) GIM-W-RA/LA (404) GIMF (244) GIMN (245) GIMY (245) GIMY (full radius) (246) GIMY-F (247) GIP (252) GIP (full radius) (253) GIP-E (249) GIP-E (full radius) (250) GIP-UN (259) GIPA (full radius W=3-6) (257) GIPA (W=3-6) (256) GIPM-A46 / GIP-1250 (313) GIPY (255) GITM (255) GITM (full radius) (255) TIP-MT (261) TIP-P-BSPT (264) TIP-P-BSW (263) TIP-P-ISO (262) TIP-P-NPT (263) TIP-P-UN (262) TIP-WT (261) For holders, see pages: C#-TBK-R/L (477) HSK A-WH-TBK-R/L (482) SGTBU/SGTBN (472) UBHCR/L (473)
