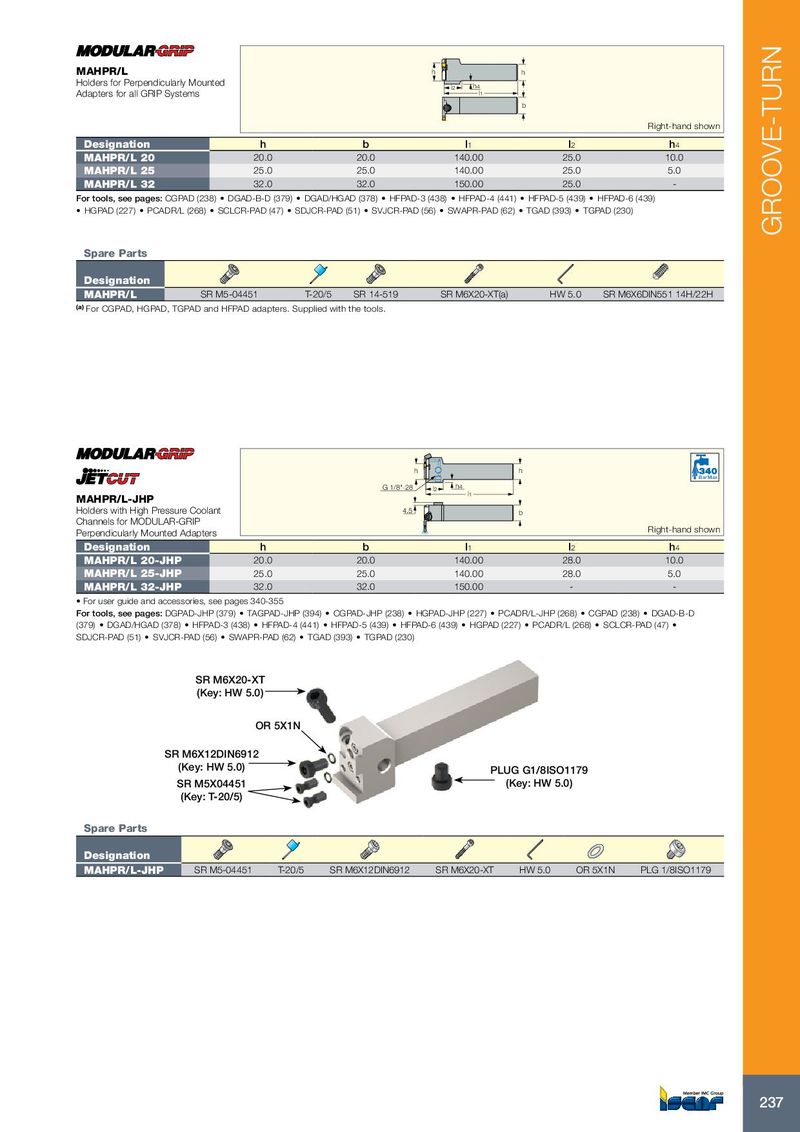

MAHPR/L h h Holders for Perpendicularly Mounted l2 h4 Adapters for all GRIP Systems l1 b Right-hand shown Designation h b l 1 l 2 h 4 MAHPR/L 20 20.0 20.0 140.00 25.0 10.0 MAHPR/L 25 25.0 25.0 140.00 25.0 5.0 MAHPR/L 32 32.0 32.0 150.00 25.0 - For tools, see pages: CGPAD (238) • DGAD-B-D (379) • DGAD/HGAD (378) • HFPAD-3 (438) • HFPAD-4 (441) • HFPAD-5 (439) • HFPAD-6 (439) • HGPAD (227) • PCADR/L (268) • SCLCR-PAD (47) • SDJCR-PAD (51) • SVJCR-PAD (56) • SWAPR-PAD (62) • TGAD (393) • TGPAD (230) GROOVE-TURN Spare Parts Designation MAHPR/L SR M5-04451 T-20/5 SR 14-519 SR M6X20-XT(a) HW 5.0 SR M6X6DIN551 14H/22H (a) For CGPAD, HGPAD, TGPAD and HFPAD adapters. Supplied with the tools. h h Bar Max G 1/8"-28 l2 h4 l1 MAHPR/L-JHP Holders with High Pressure Coolant 4.5 b Channels for MODULAR-GRIP Right-hand shown Perpendicularly Mounted Adapters Designation h b l 1 l 2 h 4 MAHPR/L 20-JHP 20.0 20.0 140.00 28.0 10.0 MAHPR/L 25-JHP 25.0 25.0 140.00 28.0 5.0 MAHPR/L 32-JHP 32.0 32.0 150.00 - - • For user guide and accessories, see pages 340-355 For tools, see pages: DGPAD-JHP (379) • TAGPAD-JHP (394) • CGPAD-JHP (238) • HGPAD-JHP (227) • PCADR/L-JHP (268) • CGPAD (238) • DGAD-B-D (379) • DGAD/HGAD (378) • HFPAD-3 (438) • HFPAD-4 (441) • HFPAD-5 (439) • HFPAD-6 (439) • HGPAD (227) • PCADR/L (268) • SCLCR-PAD (47) • SDJCR-PAD (51) • SVJCR-PAD (56) • SWAPR-PAD (62) • TGAD (393) • TGPAD (230) SR M6X20-XT (Key: HW 5.0) OR 5X1N SR M6X12DIN6912 (Key: HW 5.0) PLUG G1/8ISO1179 SR M5X04451 (Key: HW 5.0) (Key: T-20/5) Spare Parts Designation MAHPR/L-JHP SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N PLG 1/8ISO1179 237
