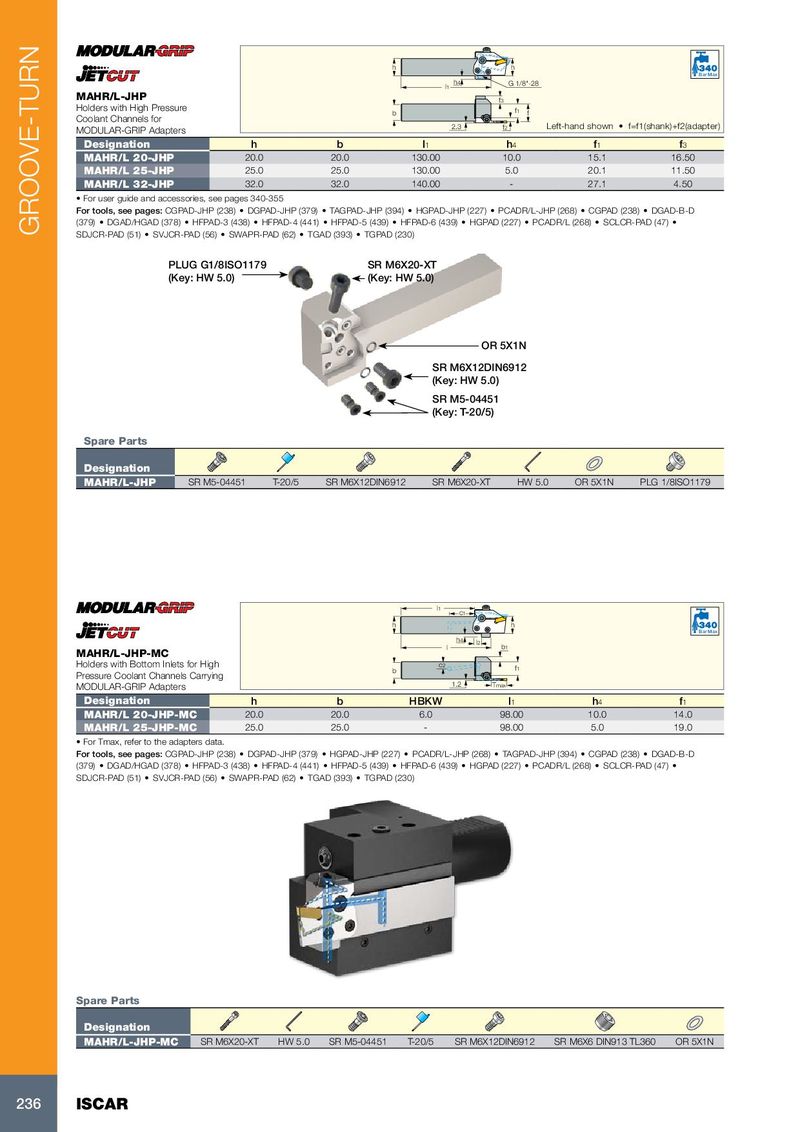

h h Bar Max h4 l1 G 1/8"-28 MAHR/L-JHP f3 Holders with High Pressure b f1 f Coolant Channels for 2.3 MODULAR-GRIP Adapters f2 Left-hand shown • f=f1(shank)+f2(adapter) Designation h b l 1 h 4 f 1 f 3 MAHR/L 20-JHP 20.0 20.0 130.00 10.0 15.1 16.50 MAHR/L 25-JHP 25.0 25.0 130.00 5.0 20.1 11.50 MAHR/L 32-JHP 32.0 32.0 140.00 - 27.1 4.50 • For user guide and accessories, see pages 340-355 For tools, see pages: CGPAD-JHP (238) • DGPAD-JHP (379) • TAGPAD-JHP (394) • HGPAD-JHP (227) • PCADR/L-JHP (268) • CGPAD (238) • DGAD-B-D (379) • DGAD/HGAD (378) • HFPAD-3 (438) • HFPAD-4 (441) • HFPAD-5 (439) • HFPAD-6 (439) • HGPAD (227) • PCADR/L (268) • SCLCR-PAD (47) • GROOVE-TURN SDJCR-PAD (51) • SVJCR-PAD (56) • SWAPR-PAD (62) • TGAD (393) • TGPAD (230) PLUG G1/8ISO1179 SR M6X20-XT (Key: HW 5.0) (Key: HW 5.0) OR 5X1N SR M6X12DIN6912 (Key: HW 5.0) SR M5-04451 (Key: T-20/5) Spare Parts Designation MAHR/L-JHP SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N PLG 1/8ISO1179 l1 c1 h h Bar Max h4 l2 l b1 MAHR/L-JHP-MC Holders with Bottom Inlets for High c2 b f1 Pressure Coolant Channels Carrying MODULAR-GRIP Adapters 1.2 Tmax Designation h b HBKW l 1 h 4 f 1 MAHR/L 20-JHP-MC 20.0 20.0 6.0 98.00 10.0 14.0 MAHR/L 25-JHP-MC 25.0 25.0 - 98.00 5.0 19.0 • For Tmax, refer to the adapters data. For tools, see pages: CGPAD-JHP (238) • DGPAD-JHP (379) • HGPAD-JHP (227) • PCADR/L-JHP (268) • TAGPAD-JHP (394) • CGPAD (238) • DGAD-B-D (379) • DGAD/HGAD (378) • HFPAD-3 (438) • HFPAD-4 (441) • HFPAD-5 (439) • HFPAD-6 (439) • HGPAD (227) • PCADR/L (268) • SCLCR-PAD (47) • SDJCR-PAD (51) • SVJCR-PAD (56) • SWAPR-PAD (62) • TGAD (393) • TGPAD (230) Spare Parts Designation MAHR/L-JHP-MC SR M6X20-XT HW 5.0 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X6 DIN913 TL360 OR 5X1N 236 ISCAR
