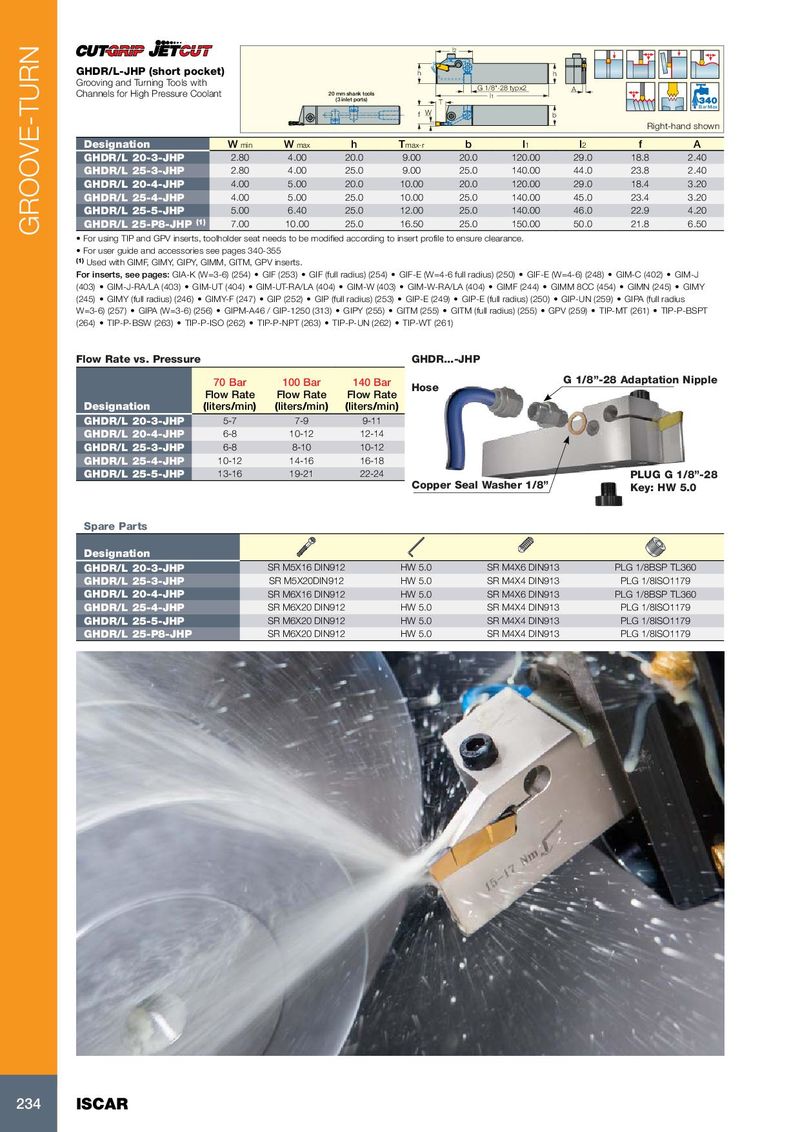

| GHDR/L-JHP (short pocket) Grooving and Turning Tools with Channels for High Pressure Coolant | | | 20 mm shank tools (3 inlet ports) | h f W | l2 l1 G 1/8 T | "-28 typx2 | b h A | Rig | ht-hand shown Bar Max |
| Designation | Wmin | Wmax | h | Tmax-r | b | l1 | l2 | f | A |
| GHDR/L 20-3-JHP | 2.80 | 4.00 | 20.0 | 9.00 | 20.0 | 120.00 | 29.0 | 18.8 | 2.40 |
| GHDR/L 25-3-JHP | 2.80 | 4.00 | 25.0 | 9.00 | 25.0 | 140.00 | 44.0 | 23.8 | 2.40 |
| GHDR/L 20-4-JHP | 4.00 | 5.00 | 20.0 | 10.00 | 20.0 | 120.00 | 29.0 | 18.4 | 3.20 |
| GHDR/L 25-4-JHP | 4.00 | 5.00 | 25.0 | 10.00 | 25.0 | 140.00 | 45.0 | 23.4 | 3.20 |
| GHDR/L 25-5-JHP | 5.00 | 6.40 | 25.0 | 12.00 | 25.0 | 140.00 | 46.0 | 22.9 | 4.20 |
| GHDR/L 25-P8-JHP(1) | 7.00 | 10.00 | 25.0 | 16.50 | 25.0 | 150.00 | 50.0 | 21.8 | 6.50 |
- For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance.
- For user guide and accessories see pages 340-355
(1) Used with GIMF, GIMY, GIPY, GIMM, GITM, GPV inserts. For inserts, see pages: GIA-K (W=3-6) (254) GIF (253) GIF (full radius) (254) GIF-E (W=4-6 full radius) (250) GIF-E (W=4-6) (248) GIM-C (402) GIM-J (403) GIM-J-RA/LA (403) GIM-UT (404) GIM-UT-RA/LA (404) GIM-W (403) GIM-W-RA/LA (404) GIMF (244) GIMM 8CC (454) GIMN (245) GIMY (245) GIMY (full radius) (246) GIMY-F (247) GIP (252) GIP (full radius) (253) GIP-E (249) GIP-E (full radius) (250) GIP-UN (259) GIPA (full radius W=3-6) (257) GIPA (W=3-6) (256) GIPM-A46 / GIP-1250 (313) GIPY (255) GITM (255) GITM (full radius) (255) GPV (259) TIP-MT (261) TIP-P-BSPT (264) TIP-P-BSW (263) TIP-P-ISO (262) TIP-P-NPT (263) TIP-P-UN (262) TIP-WT (261)
Flow Rate vs. Pressure GHDR...-JHP
| Designation | 70 Bar Flow Rate (liters/min) | 100 Bar Flow Rate (liters/min) | 140 Bar Flow Rate (liters/min) | Hose G 1/8”-28 Adaptation Nipple |
| GHDR/L 20-3-JHP | 5-7 | 7-9 | 9-11 | |
| GHDR/L 20-4-JHP | 6-8 | 10-12 | 12-14 | |
| GHDR/L 25-3-JHP | 6-8 | 8-10 | 10-12 | |
| GHDR/L 25-4-JHP | 10-12 | 14-16 | 16-18 | |
| GHDR/L 25-5-JHP | 13-16 | 19-21 | 22-24 | PLUG G 1/8”-28 |
| | | | Key: HW 5.0 Copper Seal Washer 1/8” |
Spare Parts
| Designation | | | | |
| GHDR/L 20-3-JHP | SR M5X16 DIN912 | HW 5.0 | SR M4X6 DIN913 | PLG 1/8BSP TL360 |
| GHDR/L 25-3-JHP | SR M5X20DIN912 | HW 5.0 | SR M4X4 DIN913 | PLG 1/8ISO1179 |
| GHDR/L 20-4-JHP | SR M6X16 DIN912 | HW 5.0 | SR M4X6 DIN913 | PLG 1/8BSP TL360 |
| GHDR/L 25-4-JHP | SR M6X20 DIN912 | HW 5.0 | SR M4X4 DIN913 | PLG 1/8ISO1179 |
| GHDR/L 25-5-JHP | SR M6X20 DIN912 | HW 5.0 | SR M4X4 DIN913 | PLG 1/8ISO1179 |
| GHDR/L 25-P8-JHP | SR M6X20 DIN912 | HW 5.0 | SR M4X4 DIN913 | PLG 1/8ISO1179 |
