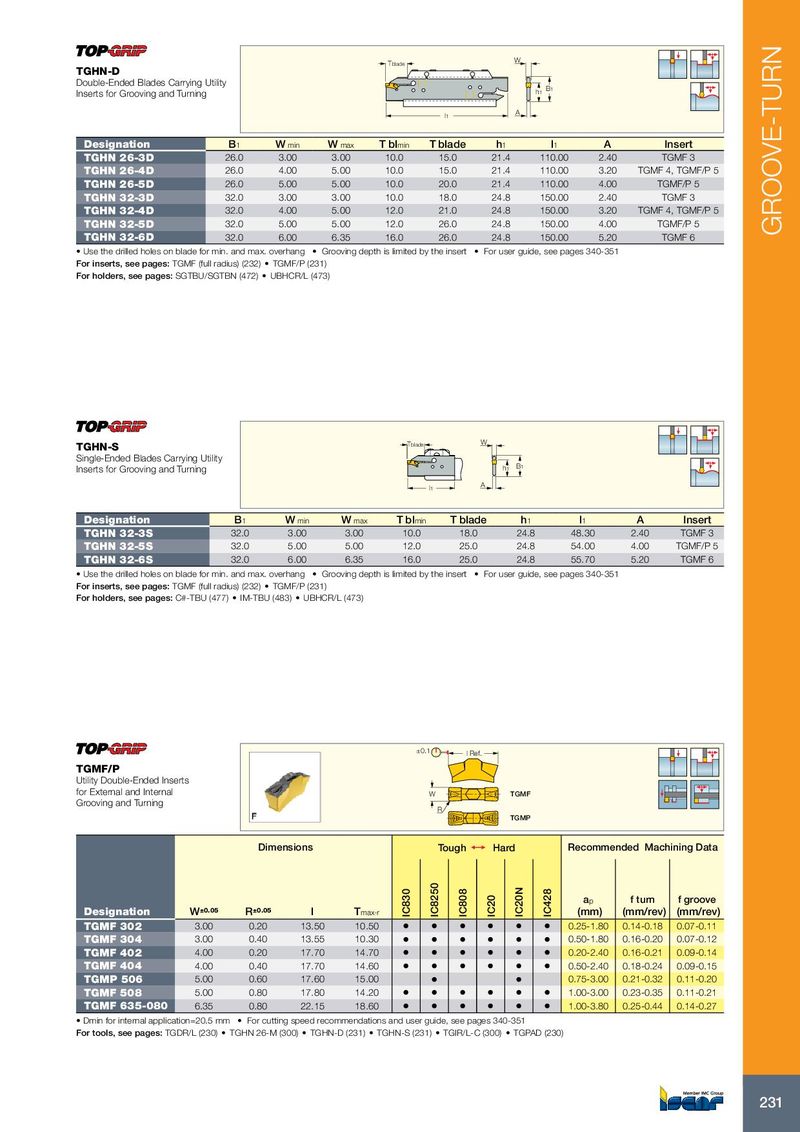

| TGHN-D Double-Ended Blades Carrying Inserts for Grooving and Turning | Utility | Tblade | l1 | A W | B1 h1 | ||||
| Designation | B1 | Wmin | Wmax | T blmin | T blade | h1 | l1 | A | Insert |
| TGHN 26-3D | 26.0 | 3.00 | 3.00 | 10.0 | 15.0 | 21.4 | 110.00 | 2.40 | TGMF 3 |
| TGHN 26-4D | 26.0 | 4.00 | 5.00 | 10.0 | 15.0 | 21.4 | 110.00 | 3.20 | TGMF 4, TGMF/P 5 |
| TGHN 26-5D | 26.0 | 5.00 | 5.00 | 10.0 | 20.0 | 21.4 | 110.00 | 4.00 | TGMF/P 5 |
| TGHN 32-3D | 32.0 | 3.00 | 3.00 | 10.0 | 18.0 | 24.8 | 150.00 | 2.40 | TGMF 3 |
| TGHN 32-4D | 32.0 | 4.00 | 5.00 | 12.0 | 21.0 | 24.8 | 150.00 | 3.20 | TGMF 4, TGMF/P 5 |
| TGHN 32-5D | 32.0 | 5.00 | 5.00 | 12.0 | 26.0 | 24.8 | 150.00 | 4.00 | TGMF/P 5 |
| TGHN 32-6D | 32.0 | 6.00 | 6.35 | 16.0 | 26.0 | 24.8 | 150.00 | 5.20 | TGMF 6 |
- Use the drilled holes on blade for min. and max. overhang
- Grooving depth is limited by the insert
- For user guide, see pages 340-351
For inserts, see pages: TGMF (full radius) (232) TGMF/P (231) For holders, see pages: SGTBU/SGTBN (472) UBHCR/L (473)
| TGHN-S Single-Ended Blades Carrying Utility Inserts for Grooving and Turning | W Tblade | B1 h1 | ||||||
| l1 A | ||||||||
| Designation | B1 | Wmin | Wmax | T blmin T blade | h1 | l1 | A | Insert |
| TGHN 32-3S | 32.0 | 3.00 | 3.00 | 10.0 18.0 | 24.8 | 48.30 | 2.40 | TGMF 3 |
| TGHN 32-5S | 32.0 | 5.00 | 5.00 | 12.0 25.0 | 24.8 | 54.00 | 4.00 | TGMF/P 5 |
| TGHN 32-6S | 32.0 | 6.00 | 6.35 | 16.0 25.0 | 24.8 | 55.70 | 5.20 | TGMF 6 |
- Use the drilled holes on blade for min. and max. overhang
- Grooving depth is limited by the insert
- For user guide, see pages 340-351
For inserts, see pages: TGMF (full radius) (232) TGMF/P (231) For holders, see pages: C#-TBU (477) IM-TBU (483) UBHCR/L (473)
| GMF/P tility Double-Ended Inser r External and Internal rooving and Turning | ts | ±0 | W .1 R | l R | ef. | TGMF | |||||||
| TGMP | |||||||||||||
| Dimen | sions | T | ough1 | Ha | rd | Recomme | nded Mac | hining Data | |||||
| Designation | W±0.05 | R±0.05 | l | Tmax-r | IC830 | IC8250 | IC808 | IC20 | IC20N | IC428 | ap (mm) | f turn (mm/rev) | f groove (mm/rev) |
| TGMF 302 | 3.00 | 0.20 | 13.50 | 10.50 | • | • | • | • | • | • | 0.25-1.80 | 0.14-0.18 | 0.07-0.11 |
| TGMF 304 | 3.00 | 0.40 | 13.55 | 10.30 | • | • | • | • | • | • | 0.50-1.80 | 0.16-0.20 | 0.07-0.12 |
| TGMF 402 | 4.00 | 0.20 | 17.70 | 14.70 | • | • | • | • | • | • | 0.20-2.40 | 0.16-0.21 | 0.09-0.14 |
| TGMF 404 | 4.00 | 0.40 | 17.70 | 14.60 | • | • | • | • | • | • | 0.50-2.40 | 0.18-0.24 | 0.09-0.15 |
| TGMP 506 | 5.00 | 0.60 | 17.60 | 15.00 | • | • | 0.75-3.00 | 0.21-0.32 | 0.11-0.20 | ||||
| TGMF 508 | 5.00 | 0.80 | 17.80 | 14.20 | • | • | • | • | • | • | 1.00-3.00 | 0.23-0.35 | 0.11-0.21 |
| TGMF 635-080 | 6.35 | 0.80 | 22.15 | 18.60 | • | • | • | • | • | • | 1.00-3.80 | 0.25-0.44 | 0.14-0.27 |
- Dmin for internal application=20.5 mm
- For cutting speed recommendations and user guide, see pages 340-351
For tools, see pages: TGDR/L (230) TGHN 26-M (300) TGHN-D (231) TGHN-S (231) TGIR/L-C (300) TGPAD (230)
