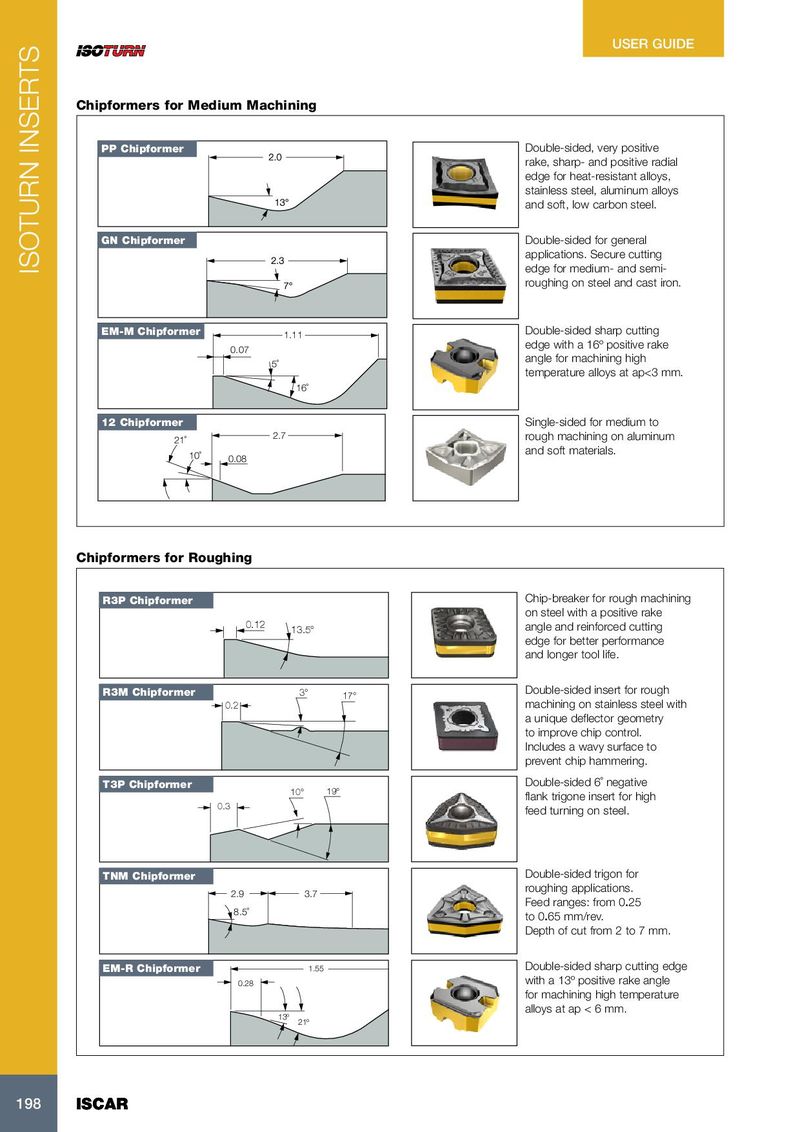

USER GUIDE Chipformers for Medium Machining PP Chipformer Double-sided, very positive rake, sharp- and positive radial edge for heat-resistant alloys, stainless steel, aluminum alloys and soft, low carbon steel. GN Chipformer Double-sided for general applications. Secure cutting ISOTURN INSERTS edge for medium- and semi- roughing on steel and cast iron. EM-M Chipformer Double-sided sharp cutting 1.11 edge with a 16º positive rake 0.07 angle for machining high 5˚ temperature alloys at ap<3 mm. 16˚ 12 Chipformer Single-sided for medium to 2.7 21˚ rough machining on aluminum and soft materials. 10˚ 0.08 Chipformers for Roughing R3P Chipformer Chip-breaker for rough machining on steel with a positive rake 0.12 13.5° angle and reinforced cutting edge for better performance and longer tool life. R3M Chipformer 3° Double-sided insert for rough 17° 0.2 machining on stainless steel with a unique deflector geometry to improve chip control. Includes a wavy surface to prevent chip hammering. T3P Chipformer Double-sided 6˚ negative 10° 19° flank trigone insert for high 0.3 feed turning on steel. TNM Chipformer Double-sided trigon for roughing applications. 2.9 3.7 Feed ranges: from 0.25 8.5˚ to 0.65 mm/rev. Depth of cut from 2 to 7 mm. EM-R Chipformer 1.55 Double-sided sharp cutting edge 0.28 with a 13º positive rake angle for machining high temperature alloys at ap < 6 mm. 13º 21º 198 198 ISCAR ISCAR
