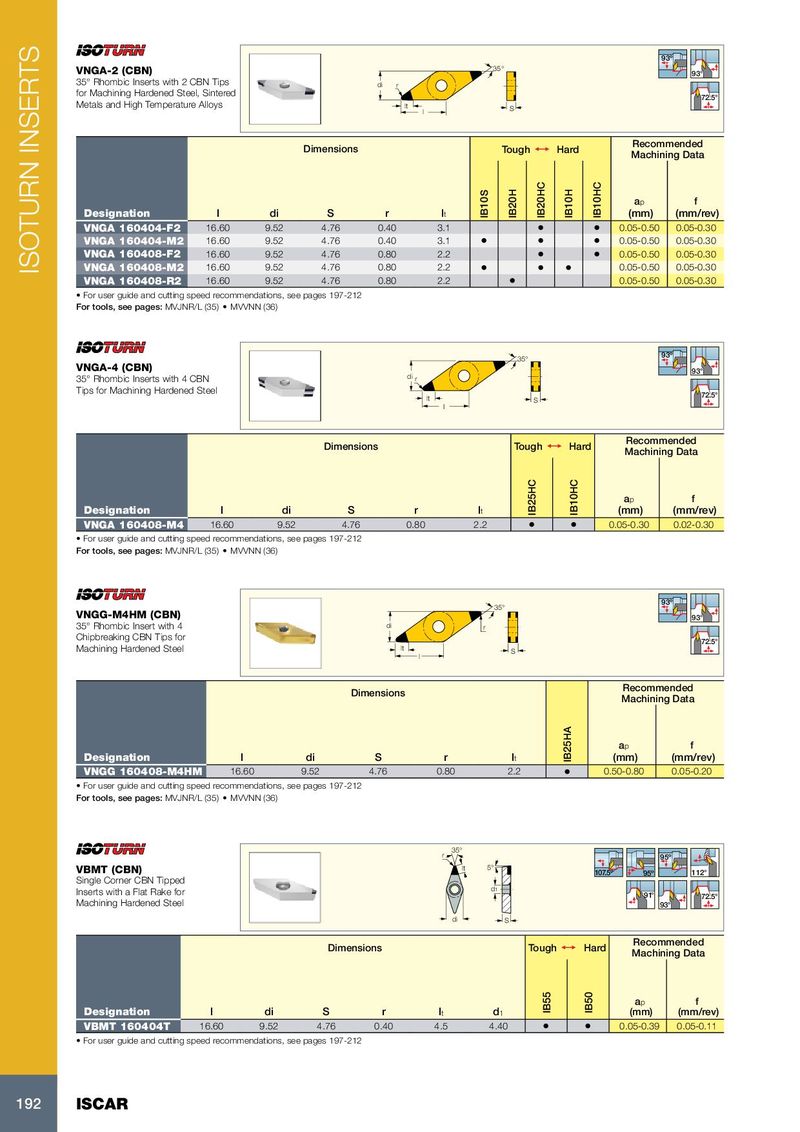

VNGA-2 (CBN)
35° Rhombic Inserts with 2 CBN Tips di r for Machining Hardened Steel, Sintered Metals and High Temperature Alloys lt
Dimensions
35°
l S
Tough 1 Hard
72.5°
Recommended Machining Data
ap f
| Designation | l | di | S | r | lt | (mm) | (mm/rev) | |||
| VNGA 160404-F2 | 16.60 | 9.52 | 4.76 | 0.40 | 3.1 | • | • | 0.05-0.50 | 0.05-0.30 | |
| VNGA 160404-M2 | 16.60 | 9.52 | 4.76 | 0.40 | 3.1 | • | • | • | 0.05-0.50 | 0.05-0.30 |
| VNGA 160408-F2 | 16.60 | 9.52 | 4.76 | 0.80 | 2.2 | • | • | 0.05-0.50 | 0.05-0.30 | |
| VNGA 160408-M2 | 16.60 | 9.52 | 4.76 | 0.80 | 2.2 | • | • | • | 0.05-0.50 | 0.05-0.30 |
| VNGA 160408-R2 | 16.60 | 9.52 | 4.76 | 0.80 | 2.2 | • | 0.05-0.50 | 0.05-0.30 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: MVJNR/L (35) MVVNN (36)
VNGA-4 (CBN)
35° Rhombic Inserts with 4 CBN Tips for Machining Hardened Steel
di r lt
Dimensions
I
35°
S
Tough 1 Hard
93º 93° 72.5°
Recommended Machining Data
a p f
| Designation | l | di | S | r | lt | (mm) | (mm/rev) | ||
| VNGA 160408-M4 | 16.60 | 9.52 | 4.76 | 0.80 | 2.2 | • | • | 0.05-0.30 | 0.02-0.30 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: MVJNR/L (35) MVVNN (36)
VNGG-M4HM (CBN) 35°
| 35° Rhombic Insert with 4 | di | r |
| Chipbreaking CBN Tips for |
Machining Hardened Steel lt S
l
Dimensions
93º 93° 72.5°
Recommended Machining Data
ap f
| Designation | l | di | S | r | lt | (mm) | (mm/rev) | |
| VNGG 160408-M4HM | 16.60 | 9.52 | 4.76 | 0.80 | 2.2 | • | 0.50-0.80 | 0.05-0.20 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: MVJNR/L (35) MVVNN (36)
35° r
VBMT (CBN) lt 5°
Single Corner CBN Tipped Inserts with a Flat Rake for d1 Machining Hardened Steel di S
Dimensions
95º
107.5º 95º 112°
91° 72.5° 93°
Recommended Tough 1 Hard Machining Data
a p f
| Designation | l | di | S | r | lt | d 1 | (mm) | (mm/rev) | ||
| VBMT 160404T | 16.60 | 9.52 | 4.76 | 0.40 | 4.5 | 4.40 | • | • | 0.05-0.39 | 0.05-0.11 |
