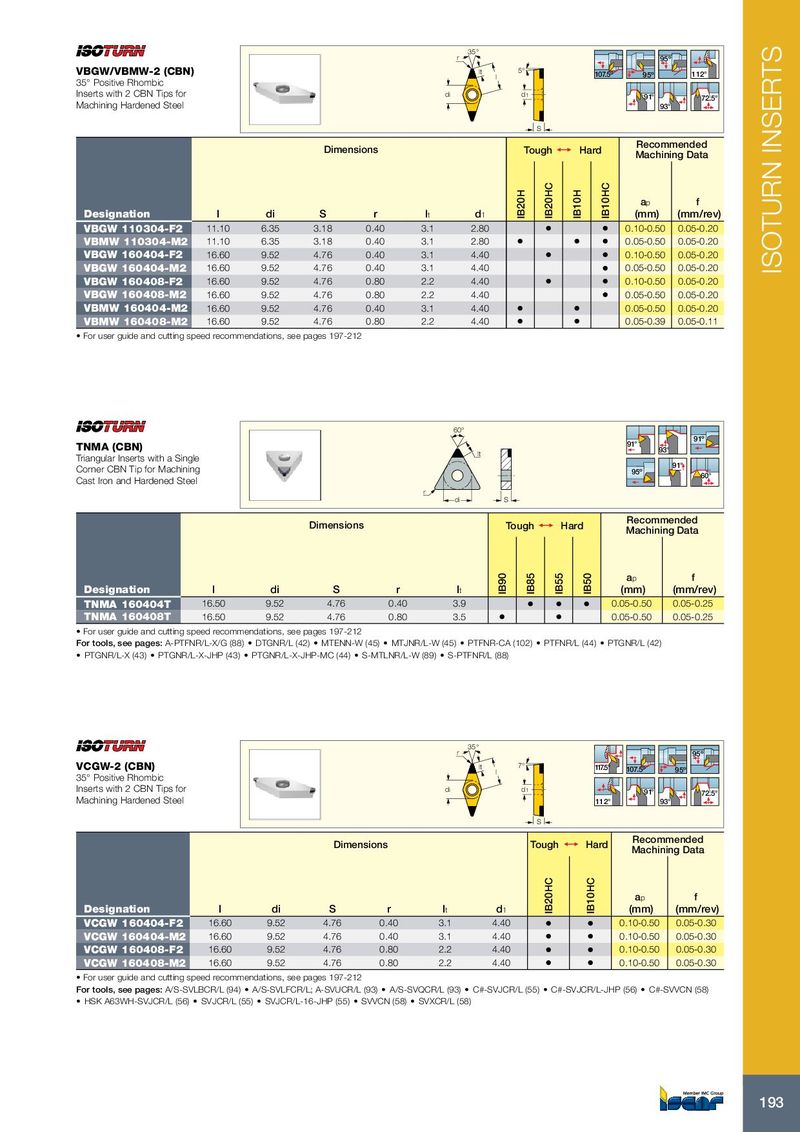

r 95º
VBGW/VBMW-2 (CBN) lt 5°
| l | 107.5º | 95º | 112° | |
| 35° Positive Rhombic |
Inserts with 2 CBN Tips for di d
1 91° 72.5°
Machining Hardened Steel 93° S Recommended Dimensions Tough 1 Hard
Machining Data
ap f
| Designation | l | di | S | r | lt | d1 | (mm) | (mm/rev) | ||||
| VBGW 110304-F2 | 11.10 | 6.35 | 3.18 | 0.40 | 3.1 | 2.80 | • | • | 0.10-0.50 | 0.05-0.20 | ||
| VBMW 110304-M2 | 11.10 | 6.35 | 3.18 | 0.40 | 3.1 | 2.80 | • | • | • | 0.05-0.50 | 0.05-0.20 | |
| VBGW 160404-F2 | 16.60 | 9.52 | 4.76 | 0.40 | 3.1 | 4.40 | • | • | 0.10-0.50 | 0.05-0.20 | ||
| VBGW 160404-M2 | 16.60 | 9.52 | 4.76 | 0.40 | 3.1 | 4.40 | • | 0.05-0.50 | 0.05-0.20 | |||
| VBGW 160408-F2 | 16.60 | 9.52 | 4.76 | 0.80 | 2.2 | 4.40 | • | • | 0.10-0.50 | 0.05-0.20 | ||
| VBGW 160408-M2 | 16.60 | 9.52 | 4.76 | 0.80 | 2.2 | 4.40 | • | 0.05-0.50 | 0.05-0.20 | |||
| VBMW 160404-M2 | 16.60 | 9.52 | 4.76 | 0.40 | 3.1 | 4.40 | • | • | 0.05-0.50 | 0.05-0.20 | ||
| VBMW 160408-M2 | 16.60 | 9.52 | 4.76 | 0.80 | 2.2 | 4.40 | • | • | 0.05-0.39 | 0.05-0.11 |
- For user guide and cutting speed recommendations, see pages 197-212
60° 91º TNMA (CBN) 91° lt 93° Triangular Inserts with a Single Corner CBN Tip for Machining 91° 95º Cast Iron and Hardened Steel 60° r di S Recommended Dimensions Tough 1 Hard Machining Data
ap f
| Designation | l | di | S | r | lt | (mm) | (mm/rev) | ||||
| TNMA 160404T | 16.50 | 9.52 | 4.76 | 0.40 | 3.9 | • | • | • | 0.05-0.50 | 0.05-0.25 | |
| TNMA 160408T | 16.50 | 9.52 | 4.76 | 0.80 | 3.5 | • | • | 0.05-0.50 | 0.05-0.25 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) DTGNR/L (42) MTENN-W (45) MTJNR/L-W (45) PTFNR-CA (102) PTFNR/L (44) PTGNR/L (42)
- PTGNR/L-X (43)
- PTGNR/L-X-JHP (43)
- PTGNR/L-X-JHP-MC (44)
- S-MTLNR/L-W (89)
- S-PTFNR/L (88)
35° r 95º
VCGW-2 (CBN) lt 7° 117.5°
| l | 107.5º | 95º | |
| 35° Positive Rhombic |
Inserts with 2 CBN Tips for di d
1 91° 72.5°
Machining Hardened Steel 112° 93°
S Recommended Dimensions Tough 1 Hard Machining Data
a p f
| Designation | l | di | S | r | lt | d 1 | (mm) | (mm/rev) | ||
| VCGW 160404-F2 | 16.60 | 9.52 | 4.76 | 0.40 | 3.1 | 4.40 | • | • | 0.10-0.50 | 0.05-0.30 |
| VCGW 160404-M2 | 16.60 | 9.52 | 4.76 | 0.40 | 3.1 | 4.40 | • | • | 0.10-0.50 | 0.05-0.30 |
| VCGW 160408-F2 | 16.60 | 9.52 | 4.76 | 0.80 | 2.2 | 4.40 | • | • | 0.10-0.50 | 0.05-0.30 |
| VCGW 160408-M2 | 16.60 | 9.52 | 4.76 | 0.80 | 2.2 | 4.40 | • | • | 0.10-0.50 | 0.05-0.30 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-SVLBCR/L (94) A/S-SVLFCR/L; A-SVUCR/L (93) A/S-SVQCR/L (93) C#-SVJCR/L (55) C#-SVJCR/L-JHP (56) C#-SVVCN (58)
- HSK A63WH-SVJCR/L (56)
- SVJCR/L (55)
- SVJCR/L-16-JHP (55)
- SVVCN (58)
- SVXCR/L (58)
