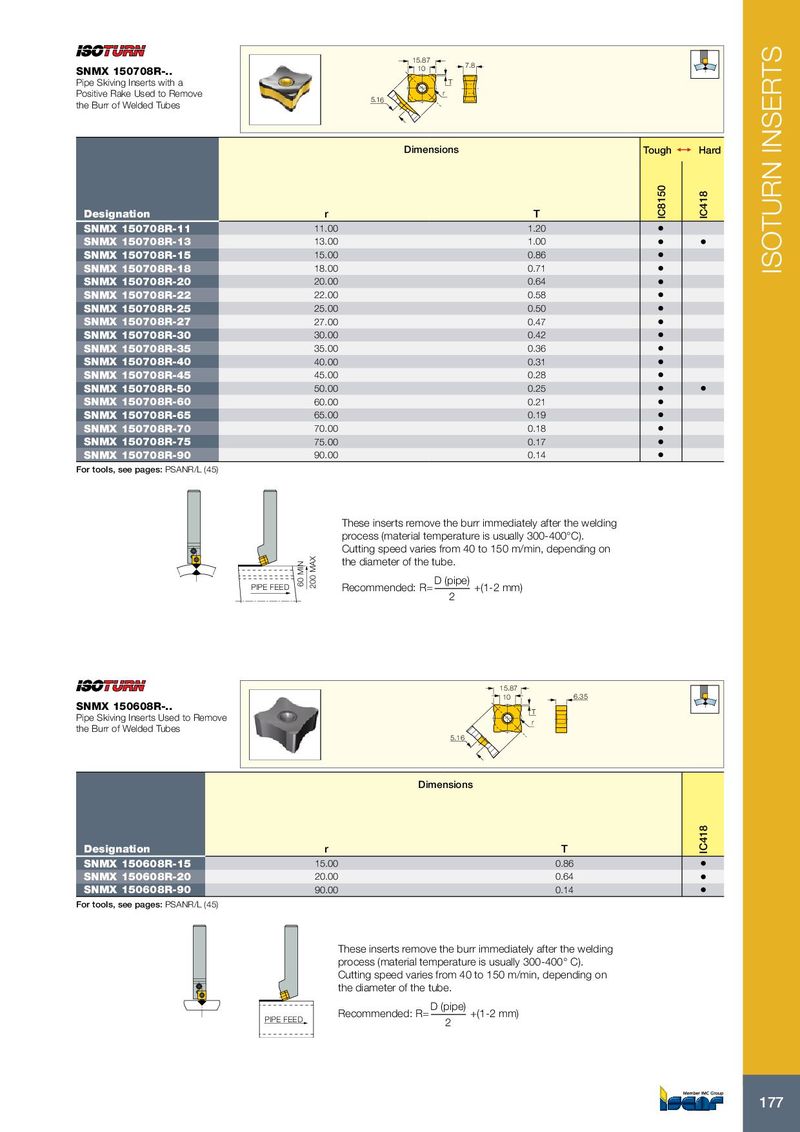

ISOTURN INSERTS
15.87
10 7.8
SNMX 150708R-..
Pipe Skiving Inserts with a T
Positive Rake Used to Remove r
5.16
the Burr of Welded Tubes

Dimensions Tough 1 Hard


IC8150

IC418
Designation r T
SNMX 150708R-11 11.00 1.20 •
SNMX 150708R-13 13.00 1.00 • •
SNMX 150708R-15 15.00 0.86 •
SNMX 150708R-18 18.00 0.71 •
SNMX 150708R-20 20.00 0.64 •
SNMX 150708R-22 22.00 0.58 •
SNMX 150708R-25 25.00 0.50 •
SNMX 150708R-27 27.00 0.47 •
SNMX 150708R-30 30.00 0.42 •
SNMX 150708R-35 35.00 0.36 •
SNMX 150708R-40 40.00 0.31 •
SNMX 150708R-45 45.00 0.28 •
SNMX 150708R-50 50.00 0.25 • •
SNMX 150708R-60 60.00 0.21 •
SNMX 150708R-65 65.00 0.19 •
SNMX 150708R-70 70.00 0.18 •
SNMX 150708R-75 75.00 0.17 •
SNMX 150708R-90 90.00 0.14 •
For tools, see pages: PSANR/L (45)


These inserts remove the burr immediately after the welding
process (material temperature is usually 300-400°C).
Cutting speed varies from 40 to 150 m/min, depending on
the diameter of the tube.
200 MAX
60 MIN


D (pipe)
PIPE FEED Recommended: R= +(1-2 mm)
2


15.87
10 6.35
SNMX 150608R-.. T
Pipe Skiving Inserts Used to Remove r
the Burr of Welded Tubes
5.16


Dimensions
IC418


Designation r T
SNMX 150608R-15 15.00 0.86 •
SNMX 150608R-20 20.00 0.64 •
SNMX 150608R-90 90.00 0.14 •
For tools, see pages: PSANR/L (45)


These inserts remove the burr immediately after the welding
process (material temperature is usually 300-400° C).
Cutting speed varies from 40 to 150 m/min, depending on
the diameter of the tube.
D (pipe)
PIPE FEED
Recommended: R= +(1-2 mm)
2
