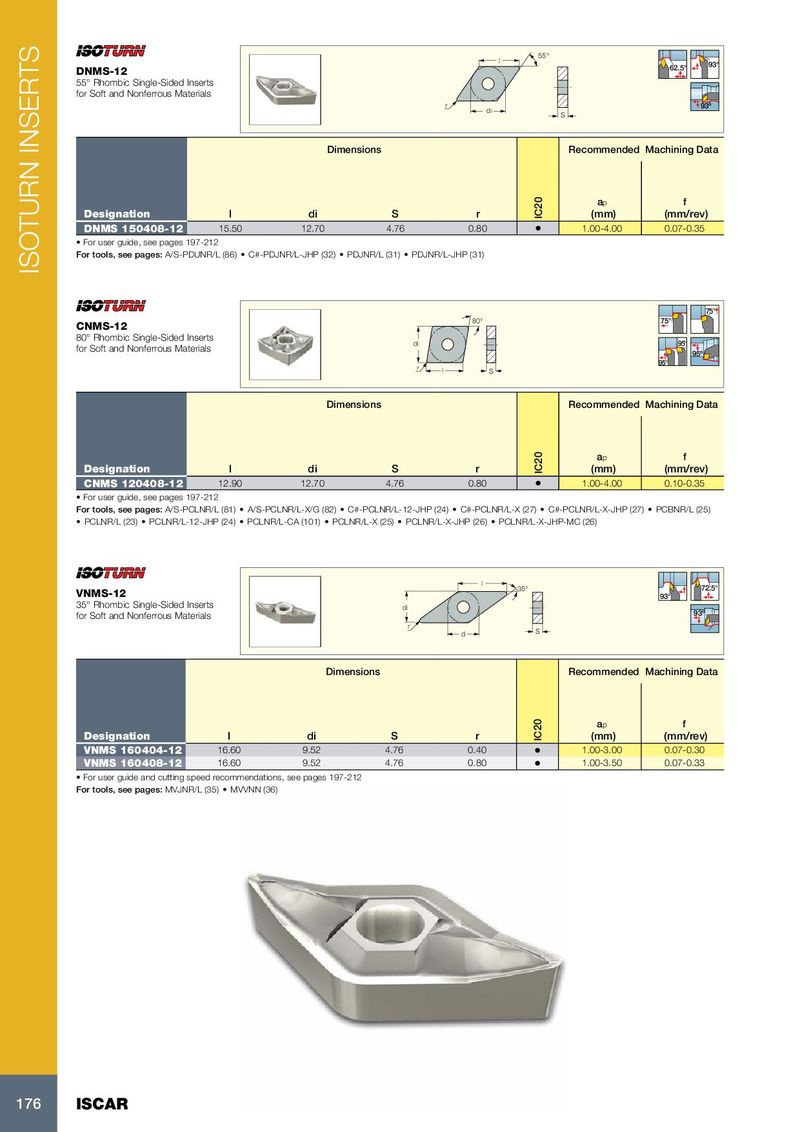

Каталог Iscar токарный инструмент 2017 - страница 180

ISOTURN INSERTS
55°
l
62.5° 93°
DNMS-12
55° Rhombic Single-Sided Inserts
for Soft and Nonferrous Materials
r 93º
di
S


Dimensions Recommended Machining Data


ap f


IC20
Designation l di S r (mm) (mm/rev)
DNMS 150408-12 15.50 12.70 4.76 0.80 • 1.00-4.00 0.07-0.35
• For user guide, see pages 197-212
For tools, see pages: A/S-PDUNR/L (86) • C#-PDJNR/L-JHP (32) • PDJNR/L (31) • PDJNR/L-JHP (31)


75°
80° 75°
CNMS-12
80° Rhombic Single-Sided Inserts
di 95°
for Soft and Nonferrous Materials 95º
95°
r l S

Dimensions Recommended Machining Data


ap f


IC20
Designation l di S r (mm) (mm/rev)
CNMS 120408-12 12.90 12.70 4.76 0.80 • 1.00-4.00 0.10-0.35
• For user guide, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) • A/S-PCLNR/L-X/G (82) • C#-PCLNR/L-12-JHP (24) • C#-PCLNR/L-X (27) • C#-PCLNR/L-X-JHP (27) • PCBNR/L (25)
• PCLNR/L (23) • PCLNR/L-12-JHP (24) • PCLNR/L-CA (101) • PCLNR/L-X (25) • PCLNR/L-X-JHP (26) • PCLNR/L-X-JHP-MC (26)


l
35° 72.5°
VNMS-12 93°
35° Rhombic Single-Sided Inserts di
for Soft and Nonferrous Materials 93º
r
d S


Dimensions Recommended Machining Data


ap f
IC20


Designation l di S r (mm) (mm/rev)
VNMS 160404-12 16.60 9.52 4.76 0.40 • 1.00-3.00 0.07-0.30
VNMS 160408-12 16.60 9.52 4.76 0.80 • 1.00-3.50 0.07-0.33
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: MVJNR/L (35) • MVVNN (36)


176 ISCAR
