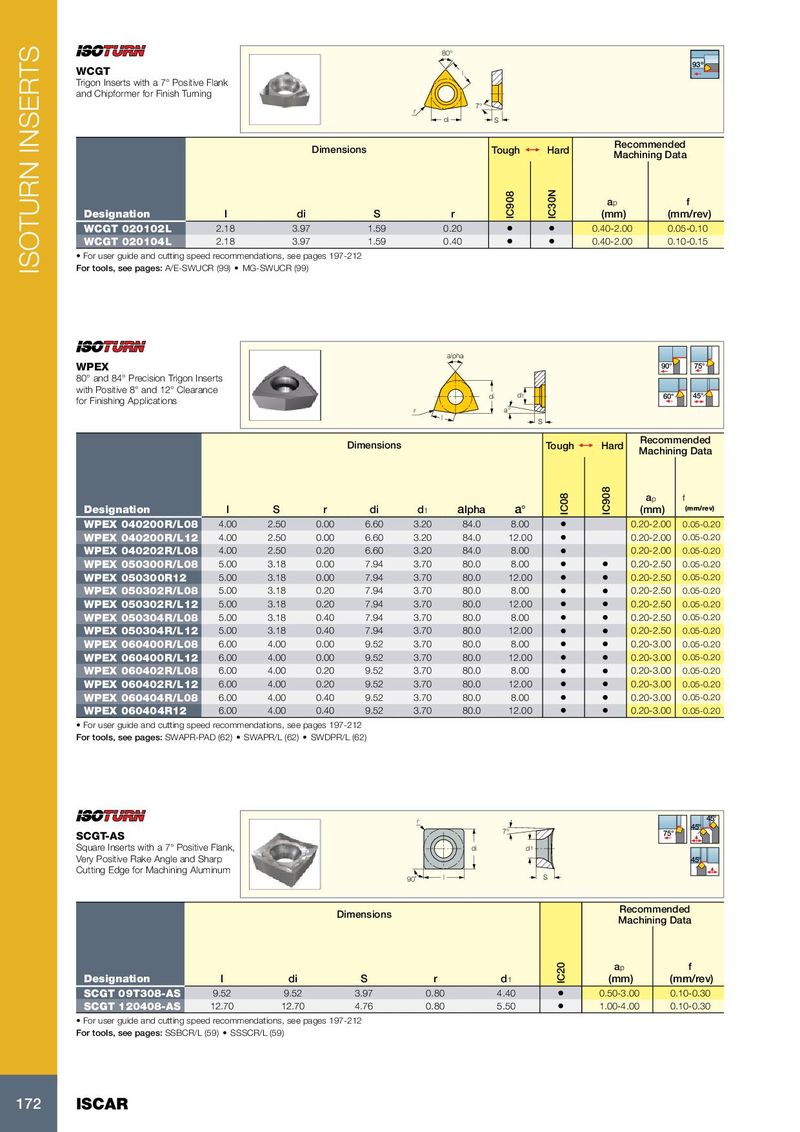

ISOTURN INSERTS
80°
93º
WCGT l
Trigon Inserts with a 7° Positive Flank
and Chipformer for Finish Turning
7°
r
di S

Recommended
Dimensions Tough 1 Hard
Machining Data


IC30N
IC908
ap f
Designation l di S r (mm) (mm/rev)
WCGT 020102L 2.18 3.97 1.59 0.20 • • 0.40-2.00 0.05-0.10
WCGT 020104L 2.18 3.97 1.59 0.40 • • 0.40-2.00 0.10-0.15
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/E-SWUCR (99) • MG-SWUCR (99)


alpha
WPEX 90° 75°
80° and 84° Precision Trigon Inserts
with Positive 8° and 12° Clearance
di d1 60° 45°
for Finishing Applications
r a°
l
S
Recommended
Dimensions Tough 1 Hard
Machining Data


IC908
ap f


IC08
Designation l S r di d1 alpha a° (mm) (mm/rev)
WPEX 040200R/L08 4.00 2.50 0.00 6.60 3.20 84.0 8.00 • 0.20-2.00 0.05-0.20
WPEX 040200R/L12 4.00 2.50 0.00 6.60 3.20 84.0 12.00 • 0.20-2.00 0.05-0.20
WPEX 040202R/L08 4.00 2.50 0.20 6.60 3.20 84.0 8.00 • 0.20-2.00 0.05-0.20
WPEX 050300R/L08 5.00 3.18 0.00 7.94 3.70 80.0 8.00 • • 0.20-2.50 0.05-0.20
WPEX 050300R12 5.00 3.18 0.00 7.94 3.70 80.0 12.00 • • 0.20-2.50 0.05-0.20
WPEX 050302R/L08 5.00 3.18 0.20 7.94 3.70 80.0 8.00 • • 0.20-2.50 0.05-0.20
WPEX 050302R/L12 5.00 3.18 0.20 7.94 3.70 80.0 12.00 • • 0.20-2.50 0.05-0.20
WPEX 050304R/L08 5.00 3.18 0.40 7.94 3.70 80.0 8.00 • • 0.20-2.50 0.05-0.20
WPEX 050304R/L12 5.00 3.18 0.40 7.94 3.70 80.0 12.00 • • 0.20-2.50 0.05-0.20
WPEX 060400R/L08 6.00 4.00 0.00 9.52 3.70 80.0 8.00 • • 0.20-3.00 0.05-0.20
WPEX 060400R/L12 6.00 4.00 0.00 9.52 3.70 80.0 12.00 • • 0.20-3.00 0.05-0.20
WPEX 060402R/L08 6.00 4.00 0.20 9.52 3.70 80.0 8.00 • • 0.20-3.00 0.05-0.20
WPEX 060402R/L12 6.00 4.00 0.20 9.52 3.70 80.0 12.00 • • 0.20-3.00 0.05-0.20
WPEX 060404R/L08 6.00 4.00 0.40 9.52 3.70 80.0 8.00 • • 0.20-3.00 0.05-0.20
WPEX 060404R12 6.00 4.00 0.40 9.52 3.70 80.0 12.00 • • 0.20-3.00 0.05-0.20
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: SWAPR-PAD (62) • SWAPR/L (62) • SWDPR/L (62)


r 45°
45°
7° 75°
SCGT-AS
Square Inserts with a 7° Positive Flank, di d1
Very Positive Rake Angle and Sharp 45°
Cutting Edge for Machining Aluminum
90˚ l S

Recommended
Dimensions
Machining Data

ap f
IC20


Designation l di S r d1 (mm) (mm/rev)
SCGT 09T308-AS 9.52 9.52 3.97 0.80 4.40 • 0.50-3.00 0.10-0.30
SCGT 120408-AS 12.70 12.70 4.76 0.80 5.50 • 1.00-4.00 0.10-0.30
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: SSBCR/L (59) • SSSCR/L (59)


172 ISCAR
