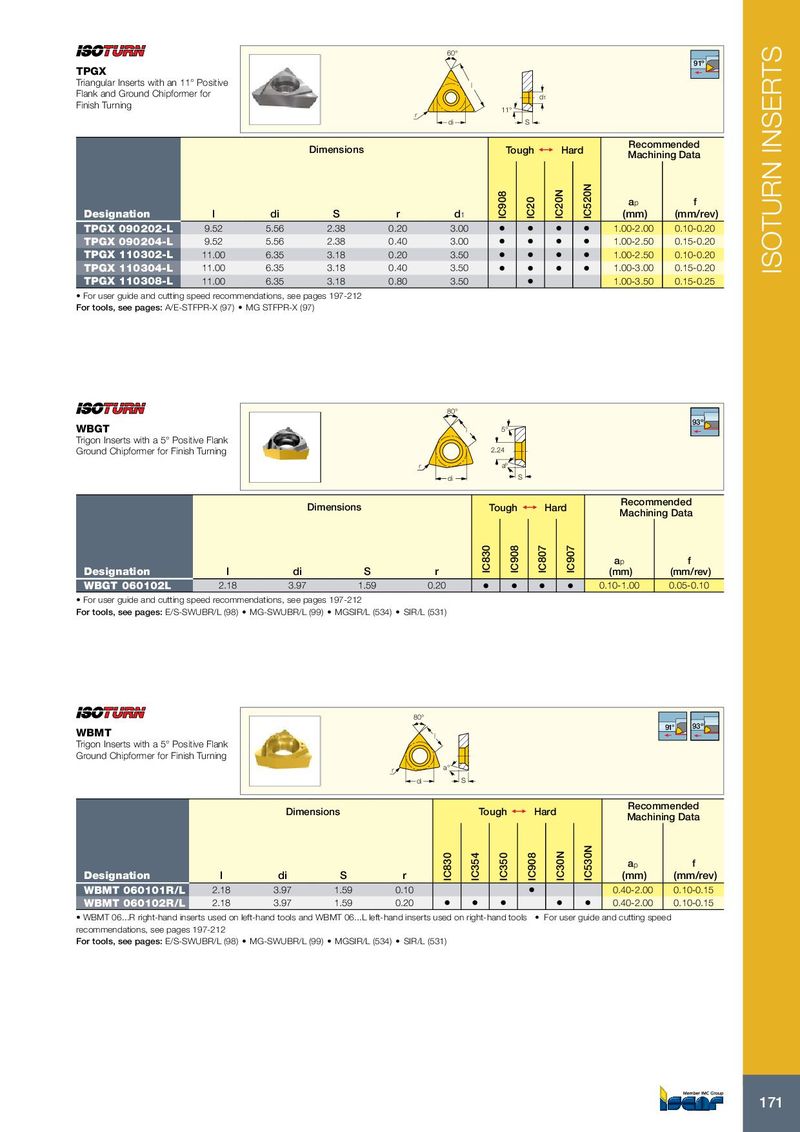

TPGX
Triangular Inserts with an 11° Positive Flank and Ground Chipformer for Finish Turning
Dimensions
r
di
d1 11° S Tough 1 Hard
91º
Recommended Machining Data
a p f
| Designation | l | di | S | r | d1 | (mm) | (mm/rev) | ||||
| TPGX 090202-L | 9.52 | 5.56 | 2.38 | 0.20 | 3.00 | • | • | • | • | 1.00-2.00 | 0.10-0.20 |
| TPGX 090204-L | 9.52 | 5.56 | 2.38 | 0.40 | 3.00 | • | • | • | • | 1.00-2.50 | 0.15-0.20 |
| TPGX 110302-L | 11.00 | 6.35 | 3.18 | 0.20 | 3.50 | • | • | • | • | 1.00-2.50 | 0.10-0.20 |
| TPGX 110304-L | 11.00 | 6.35 | 3.18 | 0.40 | 3.50 | • | • | • | • | 1.00-3.00 | 0.15-0.20 |
| TPGX 110308-L | 11.00 | 6.35 | 3.18 | 0.80 | 3.50 | • | 1.00-3.50 | 0.15-0.25 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/E-STFPR-X (97) MG STFPR-X (97)
80°
WBGT
l 5° Trigon Inserts with a 5° Positive Flank Ground Chipformer for Finish Turning 2.24 r aº di S Dimensions Tough 1 Hard
93º
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||||
| WBGT 060102L | 2.18 | 3.97 | 1.59 | 0.20 | • | • | • | • | 0.10-1.00 | 0.05-0.10 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: E/S-SWUBR/L (98) MG-SWUBR/L (99) MGSIR/L (534) SIR/L (531)
WBMT
Trigon Inserts with a 5° Positive Flank Ground Chipformer for Finish Turning
80° l
r a° di S Dimensions Tough 1 Hard
91° 93º
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||||||
| WBMT 060101R/L | 2.18 | 3.97 | 1.59 | 0.10 | • | 0.40-2.00 | 0.10-0.15 | |||||
| WBMT 060102R/L | 2.18 | 3.97 | 1.59 | 0.20 | • | • | • | • | • | 0.40-2.00 | 0.10-0.15 |
- WBMT 06...R right-hand inserts used on left-hand tools and WBMT 06...L left-hand inserts used on right-hand tools
- For user guide and cutting speed
recommendations, see pages 197-212 For tools, see pages: E/S-SWUBR/L (98) MG-SWUBR/L (99) MGSIR/L (534) SIR/L (531)
