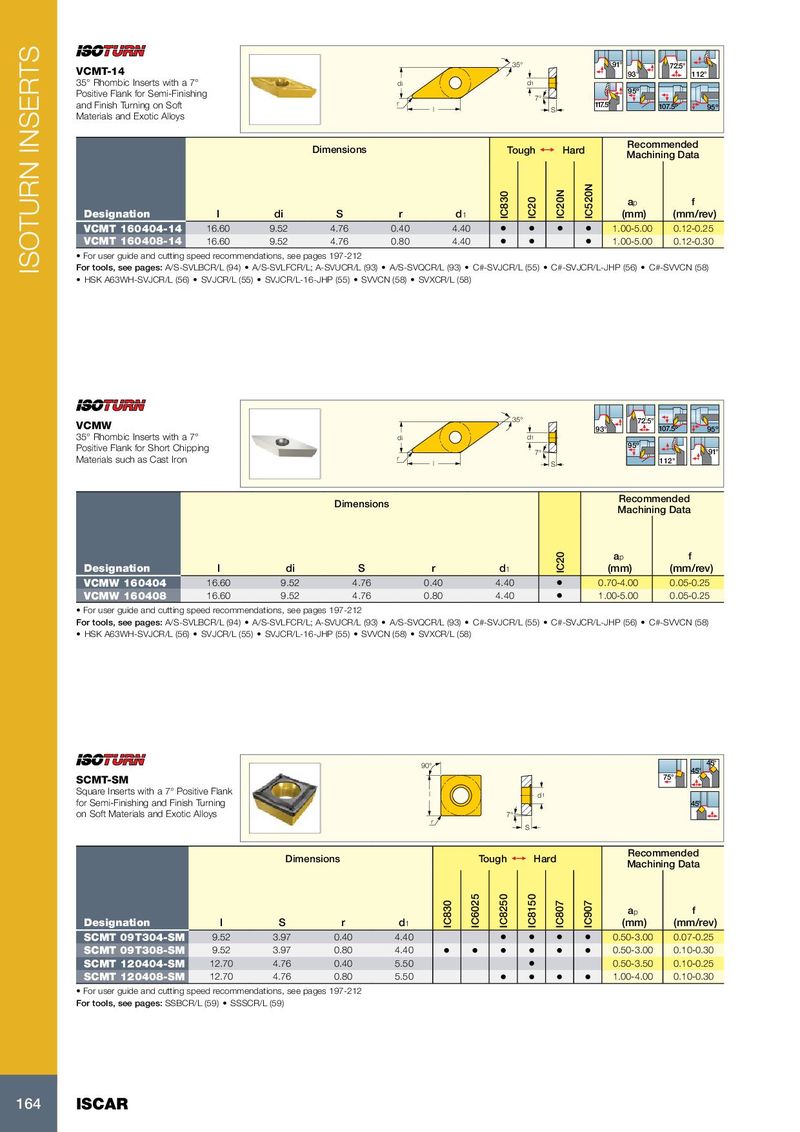

Каталог Iscar токарный инструмент 2017 - страница 168

ISOTURN INSERTS
35° 91° 72.5°
VCMT-14 93° 112°
35° Rhombic Inserts with a 7° di d1
Positive Flank for Semi-Finishing 95º
7°
and Finish Turning on Soft r
l S
117.5° 107.5º 95º
Materials and Exotic Alloys
Recommended
Dimensions Tough 1 Hard
Machining Data


IC520N
IC20N
IC830
ap f


IC20
Designation l di S r d1 (mm) (mm/rev)
VCMT 160404-14 16.60 9.52 4.76 0.40 4.40 • • • • 1.00-5.00 0.12-0.25
VCMT 160408-14 16.60 9.52 4.76 0.80 4.40 • • • 1.00-5.00 0.12-0.30
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-SVLBCR/L (94) • A/S-SVLFCR/L; A-SVUCR/L (93) • A/S-SVQCR/L (93) • C#-SVJCR/L (55) • C#-SVJCR/L-JHP (56) • C#-SVVCN (58)
• HSK A63WH-SVJCR/L (56) • SVJCR/L (55) • SVJCR/L-16-JHP (55) • SVVCN (58) • SVXCR/L (58)


35° 72.5°
VCMW 93° 107.5º 95º
35° Rhombic Inserts with a 7° di d1
Positive Flank for Short Chipping 95º
7° 91°
Materials such as Cast Iron r
l S 112°


Recommended
Dimensions
Machining Data


IC20 ap f
Designation l di S r d1 (mm) (mm/rev)
VCMW 160404 16.60 9.52 4.76 0.40 4.40 • 0.70-4.00 0.05-0.25
VCMW 160408 16.60 9.52 4.76 0.80 4.40 • 1.00-5.00 0.05-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-SVLBCR/L (94) • A/S-SVLFCR/L; A-SVUCR/L (93) • A/S-SVQCR/L (93) • C#-SVJCR/L (55) • C#-SVJCR/L-JHP (56) • C#-SVVCN (58)
• HSK A63WH-SVJCR/L (56) • SVJCR/L (55) • SVJCR/L-16-JHP (55) • SVVCN (58) • SVXCR/L (58)


90° 45°
45°
75°
SCMT-SM
Square Inserts with a 7° Positive Flank l d1
for Semi-Finishing and Finish Turning 45°
on Soft Materials and Exotic Alloys 7°
r
S

Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025
IC8250
IC8150
IC830


IC807
IC907


ap f
Designation l S r d1 (mm) (mm/rev)
SCMT 09T304-SM 9.52 3.97 0.40 4.40 • • • • 0.50-3.00 0.07-0.25
SCMT 09T308-SM 9.52 3.97 0.80 4.40 • • • • • • 0.50-3.00 0.10-0.30
SCMT 120404-SM 12.70 4.76 0.40 5.50 • 0.50-3.50 0.10-0.25
SCMT 120408-SM 12.70 4.76 0.80 5.50 • • • • 1.00-4.00 0.10-0.30
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: SSBCR/L (59) • SSSCR/L (59)


164 ISCAR
