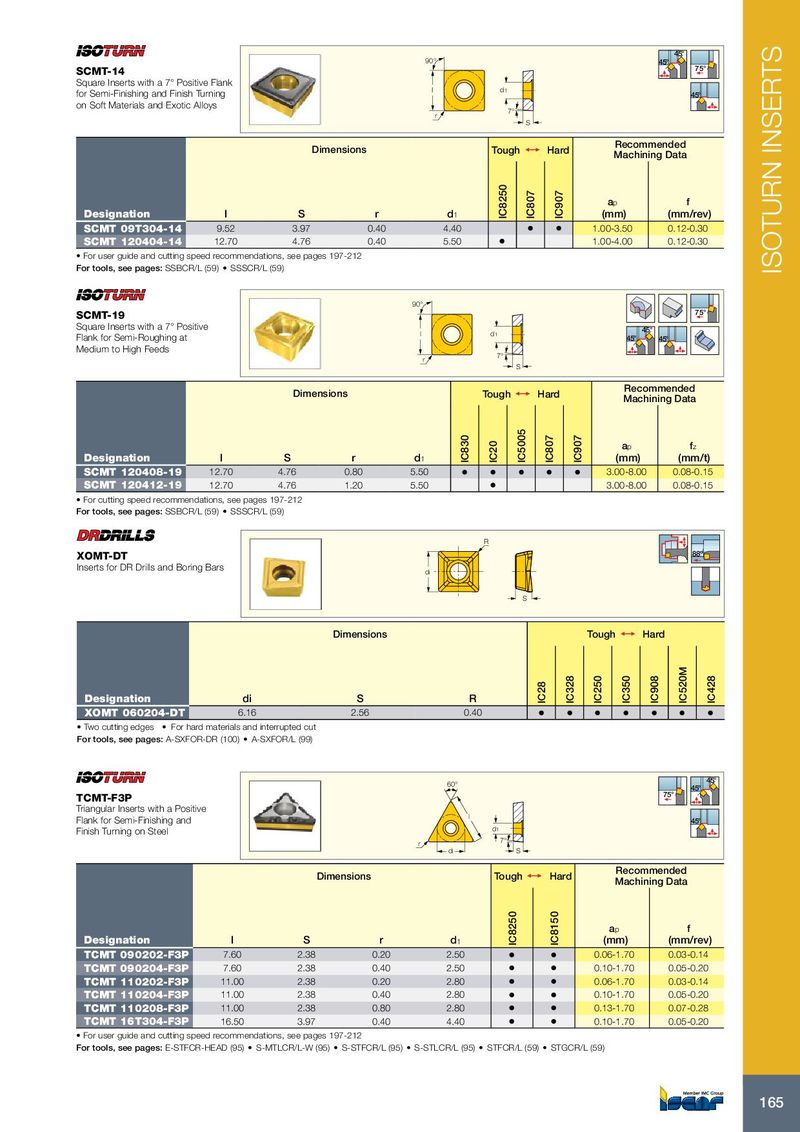

ISOTURN INSERTS
45°
90° 45°
75°
SCMT-14
Square Inserts with a 7° Positive Flank
I d1
for Semi-Finishing and Finish Turning 45°
on Soft Materials and Exotic Alloys
7°
r
S

Recommended
Dimensions Tough 1 Hard
Machining Data


IC8250
IC807
IC907
ap f
Designation l S r d1 (mm) (mm/rev)
SCMT 09T304-14 9.52 3.97 0.40 4.40 • • 1.00-3.50 0.12-0.30
SCMT 120404-14 12.70 4.76 0.40 5.50 • 1.00-4.00 0.12-0.30
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: SSBCR/L (59) • SSSCR/L (59)

90°
75°
SCMT-19
Square Inserts with a 7° Positive 45°
l d1
Flank for Semi-Roughing at 45° 45°
Medium to High Feeds
7°
r
S

Recommended
Dimensions Tough 1 Hard
Machining Data


IC5005
IC830


IC807
IC907
ap fz

IC20
Designation l S r d1 (mm) (mm/t)
SCMT 120408-19 12.70 4.76 0.80 5.50 • • • • • 3.00-8.00 0.08-0.15
SCMT 120412-19 12.70 4.76 1.20 5.50 • 3.00-8.00 0.08-0.15
• For cutting speed recommendations, see pages 197-212
For tools, see pages: SSBCR/L (59) • SSSCR/L (59)

R
XOMT-DT 88º
Inserts for DR Drills and Boring Bars di

S


Dimensions Tough 1 Hard

IC520M
IC328
IC250
IC350
IC908


IC428
IC28


Designation di S R
XOMT 060204-DT 6.16 2.56 0.40 • • • • • • •
• Two cutting edges • For hard materials and interrupted cut
For tools, see pages: A-SXFOR-DR (100) • A-SXFOR/L (99)

45°
60°
45°
75°
TCMT-F3P
Triangular Inserts with a Positive
l
Flank for Semi-Finishing and 45°
d1
Finish Turning on Steel
r 7°
di S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC8250

IC8150


ap f
Designation l S r d1 (mm) (mm/rev)
TCMT 090202-F3P 7.60 2.38 0.20 2.50 • • 0.06-1.70 0.03-0.14
TCMT 090204-F3P 7.60 2.38 0.40 2.50 • • 0.10-1.70 0.05-0.20
TCMT 110202-F3P 11.00 2.38 0.20 2.80 • • 0.06-1.70 0.03-0.14
TCMT 110204-F3P 11.00 2.38 0.40 2.80 • • 0.10-1.70 0.05-0.20
TCMT 110208-F3P 11.00 2.38 0.80 2.80 • • 0.13-1.70 0.07-0.28
TCMT 16T304-F3P 16.50 3.97 0.40 4.40 • • 0.10-1.70 0.05-0.20
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: E-STFCR-HEAD (95) • S-MTLCR/L-W (95) • S-STFCR/L (95) • S-STLCR/L (95) • STFCR/L (59) • STGCR/L (59)


165
