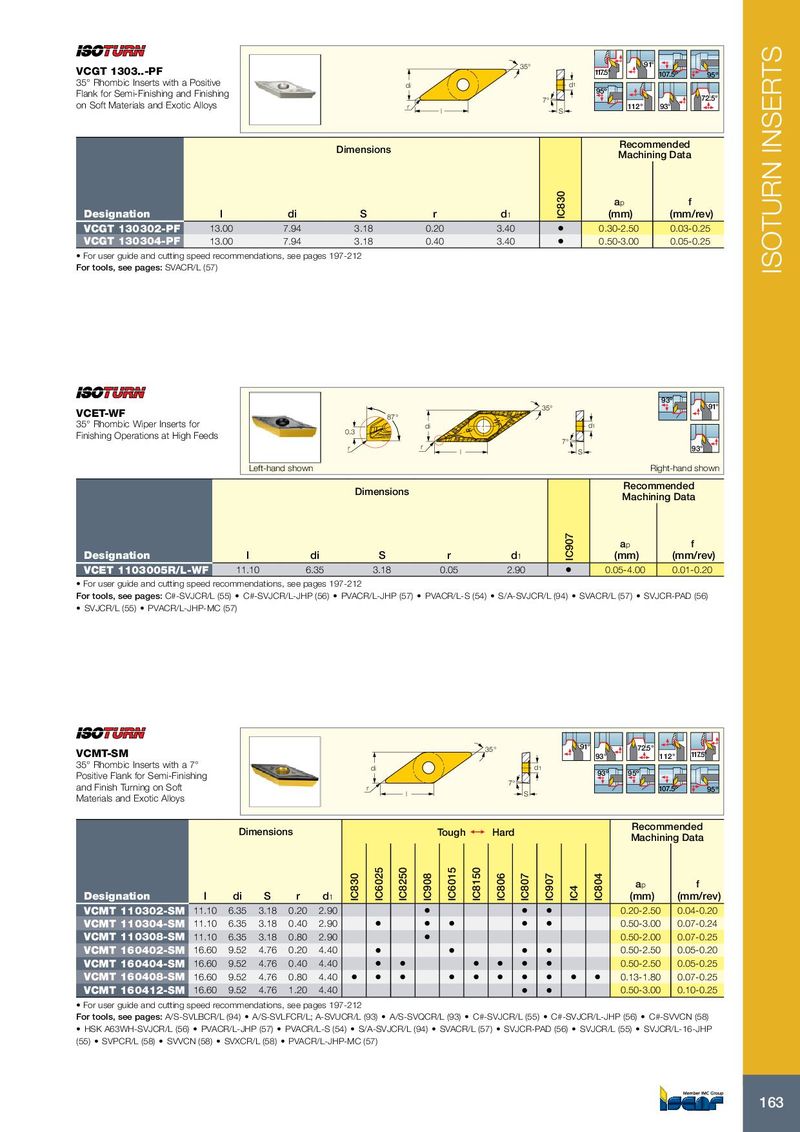

ISOTURN INSERTS
35° 91°
VCGT 1303..-PF 117.5° 107.5º 95º
35° Rhombic Inserts with a Positive di d1
Flank for Semi-Finishing and Finishing 95º
7° 72.5°
on Soft Materials and Exotic Alloys r 112° 93°
l S

Recommended
Dimensions
Machining Data


IC830
ap f
Designation l di S r d1 (mm) (mm/rev)
VCGT 130302-PF 13.00 7.94 3.18 0.20 3.40 • 0.30-2.50 0.03-0.25
VCGT 130304-PF 13.00 7.94 3.18 0.40 3.40 • 0.50-3.00 0.05-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: SVACR/L (57)


93º
35° 91°
VCET-WF 87°
35° Rhombic Wiper Inserts for


WF
di d1
0.3


R
Finishing Operations at High Feeds
7°
r r 93°
l S
Left-hand shown Right-hand shown
Recommended
Dimensions
Machining Data


IC907
ap f
Designation l di S r d1 (mm) (mm/rev)
VCET 1103005R/L-WF 11.10 6.35 3.18 0.05 2.90 • 0.05-4.00 0.01-0.20
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: C#-SVJCR/L (55) • C#-SVJCR/L-JHP (56) • PVACR/L-JHP (57) • PVACR/L-S (54) • S/A-SVJCR/L (94) • SVACR/L (57) • SVJCR-PAD (56)
• SVJCR/L (55) • PVACR/L-JHP-MC (57)


35° 91° 72.5°
VCMT-SM 93° 112° 117.5°
35° Rhombic Inserts with a 7° di d1
Positive Flank for Semi-Finishing 93º 95º
7°
and Finish Turning on Soft r 107.5º 95º
l S
Materials and Exotic Alloys
Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025
IC8250

IC6015
IC8150
IC830


IC908


IC806
IC807
IC907

IC804


ap f
IC4


Designation l di S r d1 (mm) (mm/rev)
VCMT 110302-SM 11.10 6.35 3.18 0.20 2.90 • • • 0.20-2.50 0.04-0.20
VCMT 110304-SM 11.10 6.35 3.18 0.40 2.90 • • • • • 0.50-3.00 0.07-0.24
VCMT 110308-SM 11.10 6.35 3.18 0.80 2.90 • 0.50-2.00 0.07-0.25
VCMT 160402-SM 16.60 9.52 4.76 0.20 4.40 • • • • 0.50-2.50 0.05-0.20
VCMT 160404-SM 16.60 9.52 4.76 0.40 4.40 • • • • • • 0.50-2.50 0.05-0.25
VCMT 160408-SM 16.60 9.52 4.76 0.80 4.40 • • • • • • • • • • 0.13-1.80 0.07-0.25
VCMT 160412-SM 16.60 9.52 4.76 1.20 4.40 • • 0.50-3.00 0.10-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-SVLBCR/L (94) • A/S-SVLFCR/L; A-SVUCR/L (93) • A/S-SVQCR/L (93) • C#-SVJCR/L (55) • C#-SVJCR/L-JHP (56) • C#-SVVCN (58)
• HSK A63WH-SVJCR/L (56) • PVACR/L-JHP (57) • PVACR/L-S (54) • S/A-SVJCR/L (94) • SVACR/L (57) • SVJCR-PAD (56) • SVJCR/L (55) • SVJCR/L-16-JHP
(55) • SVPCR/L (58) • SVVCN (58) • SVXCR/L (58) • PVACR/L-JHP-MC (57)
