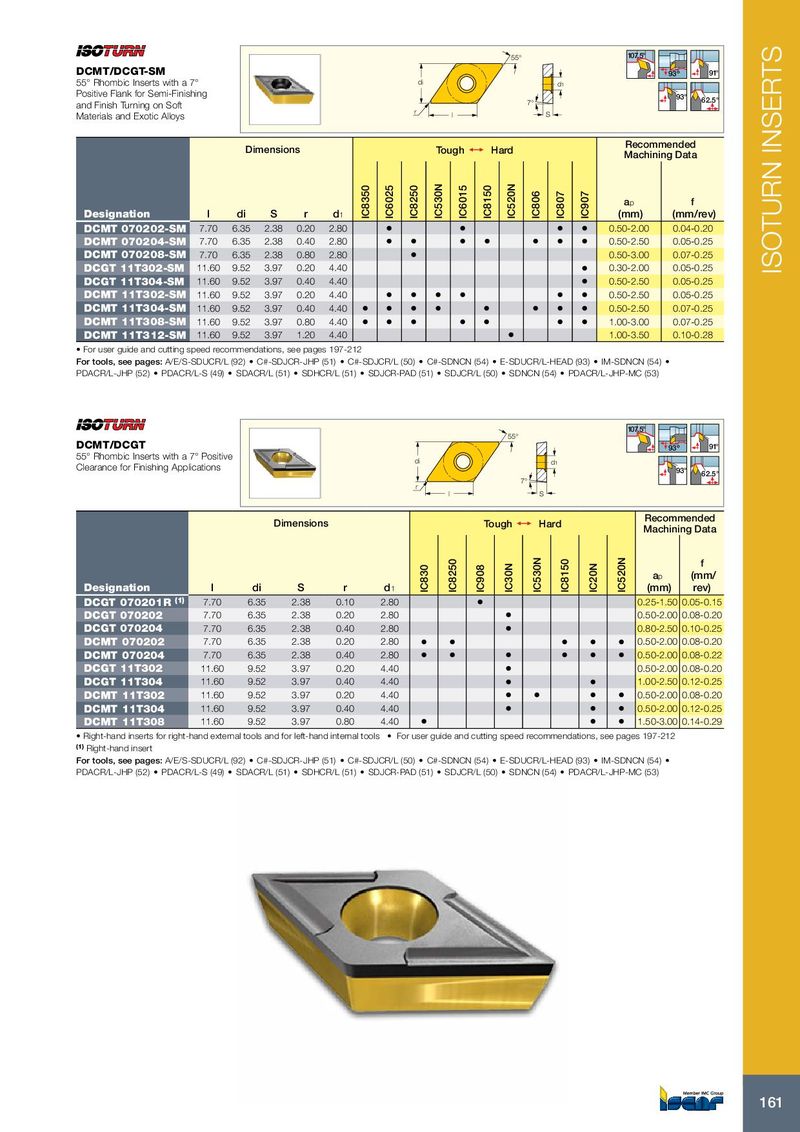

Каталог Iscar токарный инструмент 2017 - страница 165

ISOTURN INSERTS
55° 107.5°
DCMT/DCGT-SM 93º 91°
55° Rhombic Inserts with a 7° di d1
Positive Flank for Semi-Finishing 93°
7° 62.5°
and Finish Turning on Soft
r S
Materials and Exotic Alloys l

Recommended
Dimensions Tough 1 Hard
Machining Data


IC530N


IC520N
IC8350
IC6025
IC8250

IC6015
IC8150

IC806
IC807
IC907
ap f
Designation l di S r d1 (mm) (mm/rev)
DCMT 070202-SM 7.70 6.35 2.38 0.20 2.80 • • • • 0.50-2.00 0.04-0.20
DCMT 070204-SM 7.70 6.35 2.38 0.40 2.80 • • • • • • • 0.50-2.50 0.05-0.25
DCMT 070208-SM 7.70 6.35 2.38 0.80 2.80 • 0.50-3.00 0.07-0.25
DCGT 11T302-SM 11.60 9.52 3.97 0.20 4.40 • 0.30-2.00 0.05-0.25
DCGT 11T304-SM 11.60 9.52 3.97 0.40 4.40 • 0.50-2.50 0.05-0.25
DCMT 11T302-SM 11.60 9.52 3.97 0.20 4.40 • • • • • • 0.50-2.50 0.05-0.25
DCMT 11T304-SM 11.60 9.52 3.97 0.40 4.40 • • • • • • • • 0.50-2.50 0.07-0.25
DCMT 11T308-SM 11.60 9.52 3.97 0.80 4.40 • • • • • • • 1.00-3.00 0.07-0.25
DCMT 11T312-SM 11.60 9.52 3.97 1.20 4.40 • 1.00-3.50 0.10-0.28
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/E/S-SDUCR/L (92) • C#-SDJCR-JHP (51) • C#-SDJCR/L (50) • C#-SDNCN (54) • E-SDUCR/L-HEAD (93) • IM-SDNCN (54) •
PDACR/L-JHP (52) • PDACR/L-S (49) • SDACR/L (51) • SDHCR/L (51) • SDJCR-PAD (51) • SDJCR/L (50) • SDNCN (54) • PDACR/L-JHP-MC (53)


107.5°
55°
DCMT/DCGT 93º 91°
55° Rhombic Inserts with a 7° Positive di d1
Clearance for Finishing Applications 93° 62.5°
7°
r
l S

Recommended
Dimensions Tough 1 Hard
Machining Data

f
IC530N


IC520N
IC8250


IC8150
IC30N


IC20N
IC830


IC908


ap (mm/
Designation l di S r d1 (mm) rev)
DCGT 070201R (1) 7.70 6.35 2.38 0.10 2.80 • 0.25-1.50 0.05-0.15
DCGT 070202 7.70 6.35 2.38 0.20 2.80 • 0.50-2.00 0.08-0.20
DCGT 070204 7.70 6.35 2.38 0.40 2.80 • 0.80-2.50 0.10-0.25
DCMT 070202 7.70 6.35 2.38 0.20 2.80 • • • • • 0.50-2.00 0.08-0.20
DCMT 070204 7.70 6.35 2.38 0.40 2.80 • • • • • • 0.50-2.00 0.08-0.22
DCGT 11T302 11.60 9.52 3.97 0.20 4.40 • 0.50-2.00 0.08-0.20
DCGT 11T304 11.60 9.52 3.97 0.40 4.40 • • 1.00-2.50 0.12-0.25
DCMT 11T302 11.60 9.52 3.97 0.20 4.40 • • • • 0.50-2.00 0.08-0.20
DCMT 11T304 11.60 9.52 3.97 0.40 4.40 • • • 0.50-2.00 0.12-0.25
DCMT 11T308 11.60 9.52 3.97 0.80 4.40 • • • 1.50-3.00 0.14-0.29
• Right-hand inserts for right-hand external tools and for left-hand internal tools • For user guide and cutting speed recommendations, see pages 197-212
(1) Right-hand insert
For tools, see pages: A/E/S-SDUCR/L (92) • C#-SDJCR-JHP (51) • C#-SDJCR/L (50) • C#-SDNCN (54) • E-SDUCR/L-HEAD (93) • IM-SDNCN (54) •
PDACR/L-JHP (52) • PDACR/L-S (49) • SDACR/L (51) • SDHCR/L (51) • SDJCR-PAD (51) • SDJCR/L (50) • SDNCN (54) • PDACR/L-JHP-MC (53)


161
