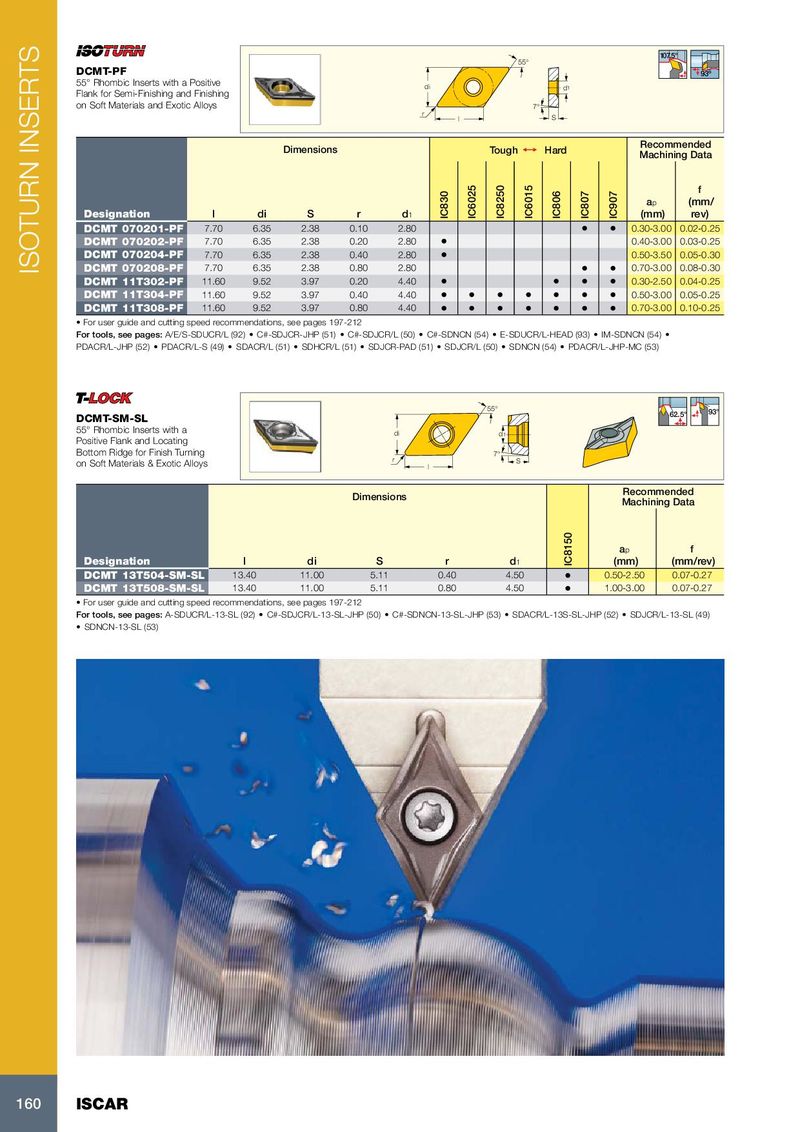

ISOTURN INSERTS
107.5°
55°
DCMT-PF 93º
55° Rhombic Inserts with a Positive di d1
Flank for Semi-Finishing and Finishing
on Soft Materials and Exotic Alloys 7°
r
l S

Recommended
Dimensions Tough 1 Hard
Machining Data

f


IC6025
IC8250
IC6015
IC830


IC806
IC807
IC907
ap (mm/
Designation l di S r d1 (mm) rev)
DCMT 070201-PF 7.70 6.35 2.38 0.10 2.80 • • 0.30-3.00 0.02-0.25
DCMT 070202-PF 7.70 6.35 2.38 0.20 2.80 • 0.40-3.00 0.03-0.25
DCMT 070204-PF 7.70 6.35 2.38 0.40 2.80 • 0.50-3.50 0.05-0.30
DCMT 070208-PF 7.70 6.35 2.38 0.80 2.80 • • 0.70-3.00 0.08-0.30
DCMT 11T302-PF 11.60 9.52 3.97 0.20 4.40 • • • • 0.30-2.50 0.04-0.25
DCMT 11T304-PF 11.60 9.52 3.97 0.40 4.40 • • • • • • • 0.50-3.00 0.05-0.25
DCMT 11T308-PF 11.60 9.52 3.97 0.80 4.40 • • • • • • • 0.70-3.00 0.10-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/E/S-SDUCR/L (92) • C#-SDJCR-JHP (51) • C#-SDJCR/L (50) • C#-SDNCN (54) • E-SDUCR/L-HEAD (93) • IM-SDNCN (54) •
PDACR/L-JHP (52) • PDACR/L-S (49) • SDACR/L (51) • SDHCR/L (51) • SDJCR-PAD (51) • SDJCR/L (50) • SDNCN (54) • PDACR/L-JHP-MC (53)


55° 93°
62.5°
DCMT-SM-SL
55° Rhombic Inserts with a di d1
Positive Flank and Locating
Bottom Ridge for Finish Turning 7°
r S
on Soft Materials & Exotic Alloys l

Recommended
Dimensions
Machining Data


IC8150
ap f
Designation l di S r d1 (mm) (mm/rev)
DCMT 13T504-SM-SL 13.40 11.00 5.11 0.40 4.50 • 0.50-2.50 0.07-0.27
DCMT 13T508-SM-SL 13.40 11.00 5.11 0.80 4.50 • 1.00-3.00 0.07-0.27
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-SDUCR/L-13-SL (92) • C#-SDJCR/L-13-SL-JHP (50) • C#-SDNCN-13-SL-JHP (53) • SDACR/L-13S-SL-JHP (52) • SDJCR/L-13-SL (49)
• SDNCN-13-SL (53)


160 ISCAR
